Glass Bottle Filling Machine, Fruit Juice Production Line, Flavoured Juice Making
Glass Bottle Filling Machine, Fruit Juice Production Line, Flavoured Juice Making

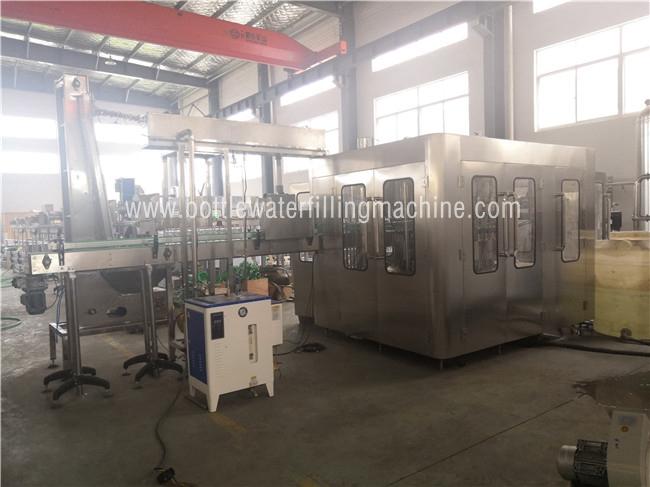

This machine is used to fill various glass bottle juice, flavor drink, liquor, alcoholic beverage,
dairy drink, and other still beverage. The machine has many models, capacity ranges from
1000 bottles per hour to 24000BPH, the suitable bottle is 200-2000ml.
The capper can be customized, the available choise is twist-off cap, aluminum screw cap,
crown cap, ring-off cap and others.
1. Rinsing empty bottle, filling, and capping functions are integrated in one system, fully automatic

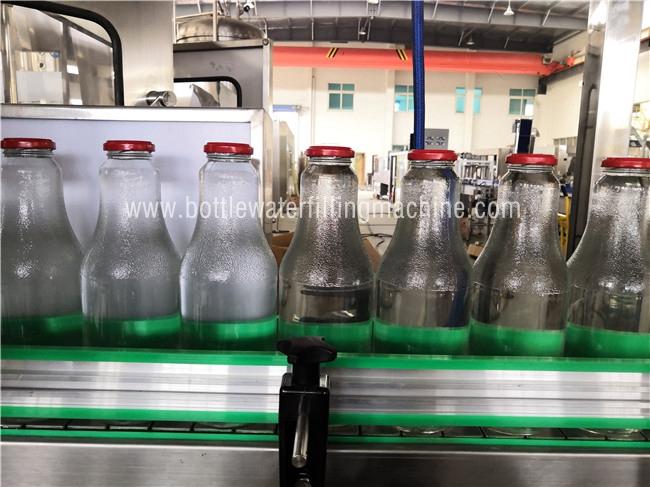

synchronized working.Bottle travels on neck to neck from in-feed till out-feed resulting scratch free movement of bottle.

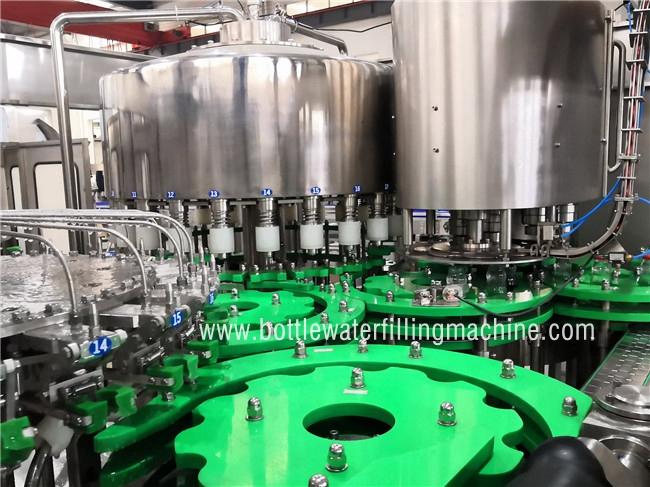

2. Pressure or vacuum filling nozzles deliver fast, efficient, and accurate dispensing with minimal dripping and leakage.
3. No Bottle No Filling, no caps no capping, no caps auto stops.When bottle jam auto stop, machine accident auto stop.
Open the window when machine running, machine auto paused.Heavy duty stainless steel filling pump & rinsing pump.
Food grade 316L or 304stainless steel contact parts, smooth & fine Polish, no dead angles.
The main technical parameters:
| Model | BRCGF16-12-6 | RBCGF18-18-6 | BRCGF24-24-8 | BRCGF32-32-10 |
| Production capacity(600ml)(b/h) | 3000 | 5000 | 7000 | 10000 |
| Filling precision | Less than or equal to +5MM | |||
| Polyester bottle stand (mm) |
Bottle diameter 50-100; Height 150-320 |
|||
| Suitable cap shape | Plastic screw cap | |||
| Water pressure of washing bottle (mpa) | Less than or equal to 0.4 | |||
| Total power (kw) | 4.4 | 5.2 | 6.2 | 6.2 |
| Total weight(kg) | 2500 | 3000 | 4000 | 5000 |
| Dimension(lxwxh)mm | 2250X1640X2100 | 2430X1800X2100 | 3050X2060X2100 | 4050X2300X2100 |
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
