600BPH 5 Gallon Filling Machine , 20L Jar Water Bottling Equipment 7.5KW
5 Gallon Filling Machine For Drinking Water Filling Line , 20 Liter Jar Water Bottling Plant
The 5 gallon water filling line mainly includes :
The machine is a new kind of barreled water auto-producing line, which integrates mechanism, electricity and pneumatics technologies together.

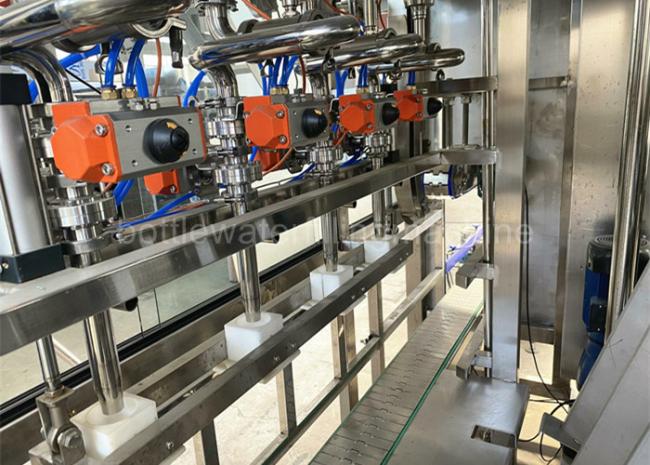

This line also can automatically carry out bottle washing, sterilizing, filling, capping, counting and products discharging.

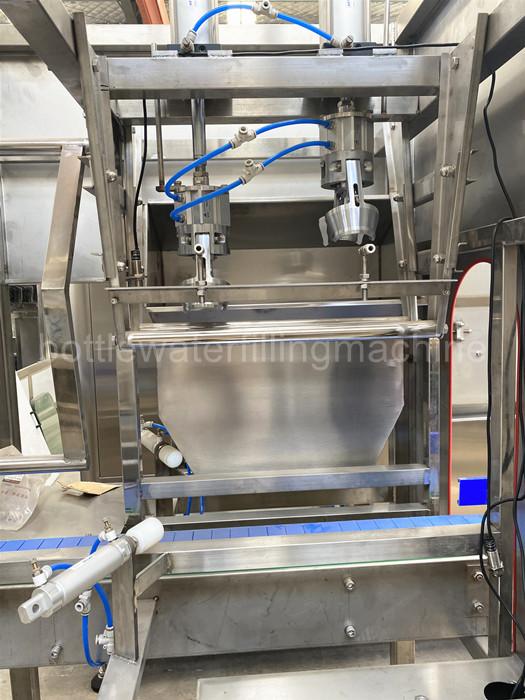

In order to achieve the purpose of washing and sterilizing, bottle washer adopts multiple liquid injections washing and disinfectant spray, and washing solution can be used circularly. The sealer can seal bottle caps automatically.
All the parts contacting the water and other liquid is made of stainless steel, whose surface is polished, easy to clean.
Technical parameter of 5 gallon filling machine:
| Model | QGF-150 | QGF-300 | QGF-450 | QGF-600 | QGF-900 |
| Filling heads | 1 | 2 | 3 | 4 | 6 |
| Volume | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 |
| Barrel size | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 |
| Capacity | 150 | 300 | |||
| Gas pressure | 0.4 -0.6 | 0.4 -0.6 | 0.4 -0.6 | 0.4 -0.6 | 0.4 -0.6 |
| Gas consumption | 0.37 | 0.6 | 0.8 | 1 | 1.2 |
| Motor power | 1.75 | 3.8 | 3.8 | 7.5 | 9 |
| Motor voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Weight | 700 | 1200 | 1600 | 2000 | 3500 |
| Dimension | 2800*1100*1600 | 3800*1300*1600 | 4200*1600*1600 | 4800*1800*1600 |
4200*2300*1600 2800*1000*1600 |
