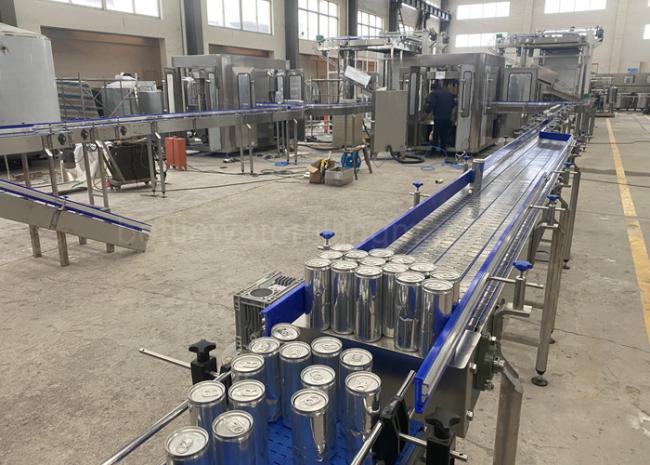

The machine is composed of worktable, hydraulic cylinder and height adjusting mechanism, can feeding conveyor belt, lifting cage, cam bracket, hook chain, lid conveying mechanism, can supporting plate, sealing body, pressure head, sealing wheel, lid capping head, can outlet conveying belt, can pulling wheel, transmission system,CIP cleaning system, electrical system and other parts.

Technical parameter of can filling machine

Principle:

The machine adopts the principle of normal pressure filling. When the empty can enters the lifting tray through the wheel puller, the filling valve and the empty cans are aligned, the empty tank is lifted and sealed, and the valve port of the filling valve is opened automatically.Stop filling when the filling liquid level blocks the gas return pipe orifice of the valve.The filled can is sent to the sealing machine head through the hook chain, and the cover is sent to the can mouth through the cap feeder. When the can supporting mechanism is raised, the pressure head presses the can mouth, and the sealing wheel is pre sealed and sealed. After the jar is sealed, it is pushed out by the an beating mechanism to complete the filling and sealing process.
