2000BPH 2000MLJuice Glass Bottle Filling Capping Machine
Price:
$6,000-20,000 / Set
MOQ:
1 Set/Sets
Delivery Time:
30 working days
Brand:
Jiayuan
Product Description
2000BPH Juice Glass Bottle Filling Capping Machine , Small Glass Milk Bottle Filling Machine
Detailed Description:

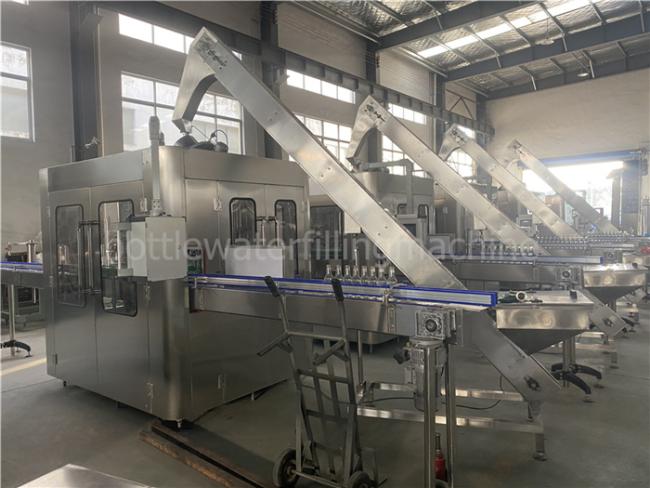

This machine is used in production non-gas containing beverage of glass bottle ,such as water,juice,milk,tea drink etc. It carries out washing bottle ,filling and capping on one machine ,the whole machine designing is reasonable ,the appearance is beautiful and the maintenance is convenient ,it adopts bottle handing technology to make changing bottle more convenient ,faster and easier ,the machine adopts PLC control ,touch screen and no-bottle ,no-cap system The key electric elements are from famous international brand.
Washing Parts.
- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.
Filling Parts.
- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing
Capping Parts.
- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%
Technique parameter
| Model | CGF16-12-6 | CGF18-18-6 | CGF24-24-8 |
| Productivity | 4000BPH | 6000BPH | 10000BPH |
| Rinsing Head | 16 | 18 | 24 |
| Filling Head | 12 | 18 | 24 |
| Capping Head | 6 | 6 | 8 |
| Bottle Volume | 350ml~2000ml±10ml | ||
| Bottle Diameter | φ50-92mm | ||
| Bottle Height | 150-310 mm | ||
| Filling Tolerance | ±2% | ||
| Cap Size | 28mm and 30mm PE Standard Caps | ||
| Air Pressure | 0.6MPa | ||
| Air Consumption | 500 L/min | ||
| Filling Water Consumption | 1.5 m3/h | 3 m3/h | 6 m3/h |
| Rinsing Water Consumption | 0.5 m3/h | 1 m3/h | 2 m3/h |
| Motor Power | 5.88kW | 6.68kW | 7.68kW |
| Voltage | 380V | ||
| Dimension |
(L*W*H) 2100*1500*2200mm |
(L×W×H) 2450*1800*2200mm | (L×W×H) 2750*2180*2200mm |
| Weight | 2500kg | 3000kg | 5300kg |
| Filling Principle | Gravity Filling | ||
