600BPH 5 Gallon Water Filling Machine Multiwashing Liquid Spray Washing
3-5 Gallon Barreled Pure Water Filling Machine / Equipment / Production Line
Description:
The filling line specially for 3-5 gallons barreled drinking water ,with type QGF-100,QGF-240,QGF-300,
QGF450,QGF-600,QGF-600,QGF-900,QGF-1200.It integrateds bottle washing,filling and capping into
one unit ,in order to achieve the purpose of washing and sterilizing,The washing machine uses multi-washing
liquid spray and thimerosal spray,the thimerosal can be used circularly,The capping machine can be cap
barrel automatically ,The line equips with water spraying device in order to ensure those caps sterile and
clean ,it also can automatically carry out barrel,washing,steriizing,filling,capping,counting and products
discharging,with complete function,modern design and high degree of automation ,It is a new kind of barreled
water auto producing line ,which integrates mechanism,electricity and pneumatics technologies together

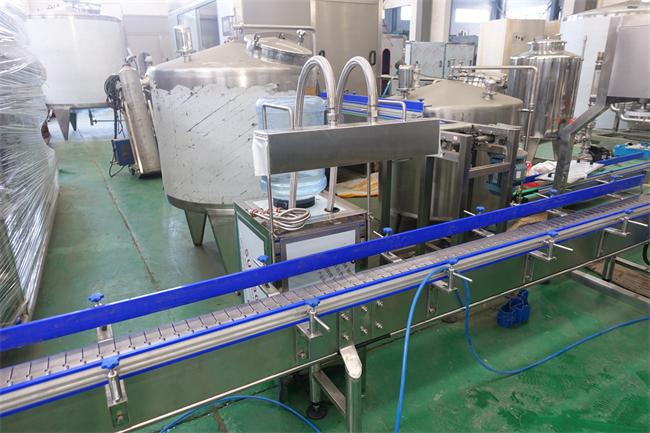

Our QGF complete 5 gallon barrel pure,mineral water filler line mainly consists of 7 parts. They are respectively:
1.De-capping machine
2.External barrel brushing machine
3.Bottle feeding machine
4.Washing, filling, capping machine
5.Cap elevator
6.Lamp checker
7.Conveyor
washing filling capping machine
shrinking machine
lifting for bagging
We have different capacity
| Mold | QGF-150 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 |
| Filling heads | 1 | 2 | 3 | 4 | 6 | 8 |
|
Capacity (B/H) |
100 | 300 | 450 | 600 | 900 | 1200 |
|
Capacity (B/H) |
18.9L | |||||
|
Barrel size (mm) |
270*490 | |||||
|
Gas pressure (Mpa) |
0.4-0.6 | |||||
| Gas consumption | 0.37 | 0.6 | 0.8 | 1 | 1.5 | 1.8 |
|
Power (kw) |
2.2 | 3.5 | 3.5 | 4.5 | 6 | 7.5 |
|
Dimensions (mm) |
1800*1900*2300 | 2400*1650*2500 | 2600*1920*2550 | 3100*2100*2800 | 3800*2800*2900 | 4600*2800*2800 |
| Weight(KG) | 2300 | 2500 | 3500 | 4500 | 5600 | 8500 |
Q and A
1.Q:Are you a factory or trading company?
A:We are a factory, professional water treatment system manufacturer and small bottle water filling & packing machinery with about 10 years experience. Factory covers an area of 12000 square. There have been more than 50 countries use our products.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Jinfeng town,Zhangjiagang city,Jiangsu province,China. about 2 hours away from PVG Airport . All clients are warmly welcome to visit us !
3.How about installation ?
We will send our engineers to your factory to install the machines and train your staff how to operate the machines. Customer pay air tickets go and back,accommodation and USD100 / day/person.
4.Q:How long is the warranty of your equipment?
A: One year warranty after receipt check upon delivery.And we will comprehensively provide you all kinds of technical support services in after-sale service
5.Q:What is the features of our company?
A: We provide turnkey project for customers, including sale and after-sale service; complete production line equipment supply; bottle design; layout programs provide; or provide auxiliary materials purchasing agent supplier information; equipment overseas installation and commissioning; operator training; etc
