Machine tool Timken wheel bearings / Timken taper roller bearings

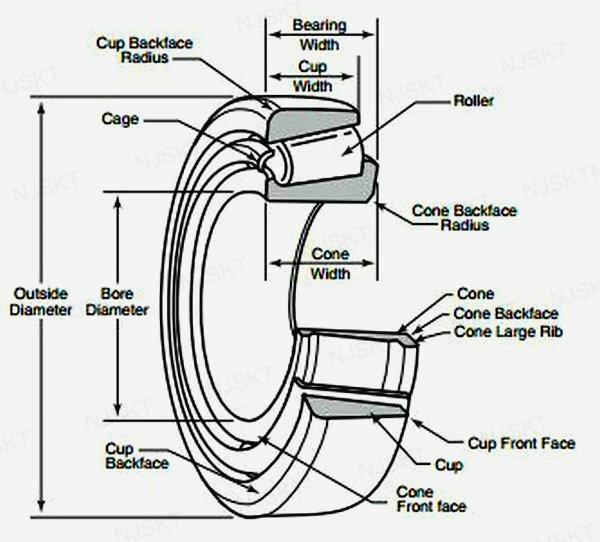

   Tapered roller bearings consist of four interdependent components: the cone, or inner ring; the cup, or outer ring; the tapered rollers, or rolling elements; and the cage, or roller retainer. The taper angles allow the bearing to handle a combination of radial and thrust loads. The steeper the cup angle, the greater the ability of the tapered roller bearing to handle thrust loads.

Tapered Roller Bearing Feature:

1.Tapered roller bearing are suitable for both radial and thrust for in only one direction but also accept combined loads.

2.35000 Type double-row tapered roller bearings

3.Tapered roller bearings transfer the loads acting on the bearing at a certain angle

4.  As a professional bearing supplier, We produce any size bearings, also some brand bearing

Tapered roller bearing application:

Tapered roller bearings widely used in automotive, railway rolling stock axle box, tractor, machine tool, electric machine, water pump, cranes, elevator, agricultural machinery and textile machinery, rolling mill, mining, metallurgical, plastic machinery etc.

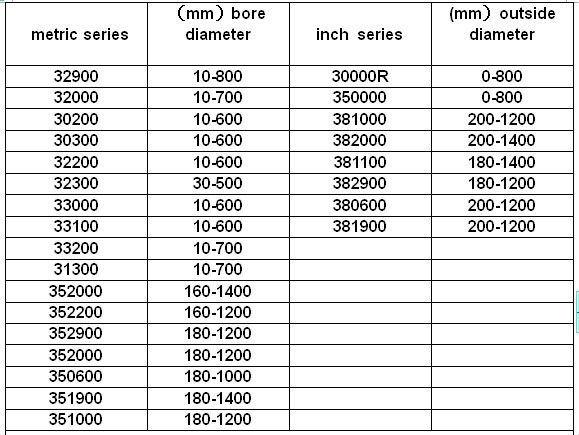

Tapered Roller bearing type:

1. Single row: 302 Series,303 Series,320 Series,322 Series,323 Series,329 Series,331 Series,

2. Double row: 3519 Series,3529 Series,3510 Series,3520 Series,3511 Series,3521 Series,322 Series,

3. Four row: 3819 Series,3829 Series,3810 series ,3820 Series,3811 Series,3806 Series,

4. Inch series: L/LM/M/HM/H/HH/TDO/TDI/TDIT/TQO/TQOW
