Chrome Steel 51101 Ball Thrust Bearings for Industrial Machine
Chrome Steel 51101 Ball Thrust Bearings for Industrial Machine
Quick Detail:
- Structure: Thrust ball bearing
- Type: Ball thrust bearing
- Material: GCr15 , chrome steel
- ID: 12mm
- OD: 26mm
- Width: 9mm
- Weight: 0.039kgs
- Precision Rating: P0, P4, P5, P6
- Seals Type: open
- Number of Row: single row
- Vibration Level: V1, V2, V3
- Radial Clearance: C0, C3, C4
- Noisy level: Z1, Z2 , Z3
- Cage Material: Brass, Steel, Nylon
- Tolerence Level: ABEC-1, 3, 5, 7
- Load rating: Heavy Load
- Basic dynamic load rating:133kn
- Basic static load rating: 540kn
- Limiting speed with oil lub : 1600r/min
Features:
1. Available in two designs: single direction and double direction.

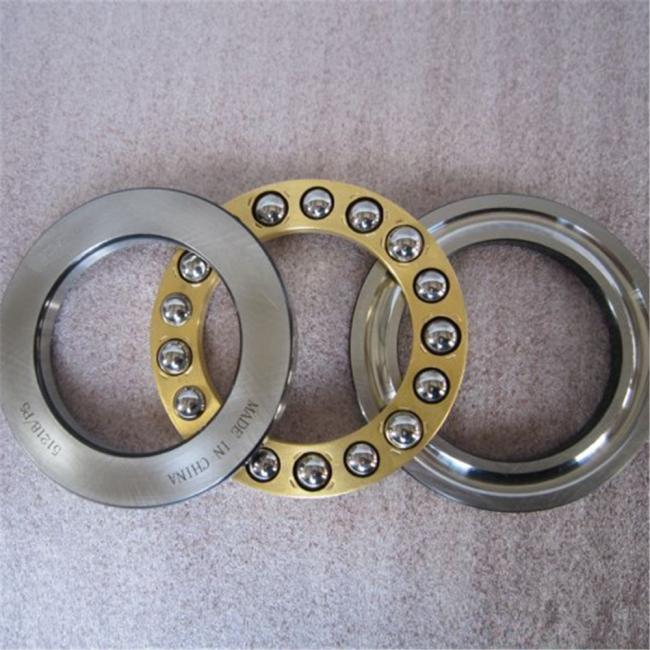

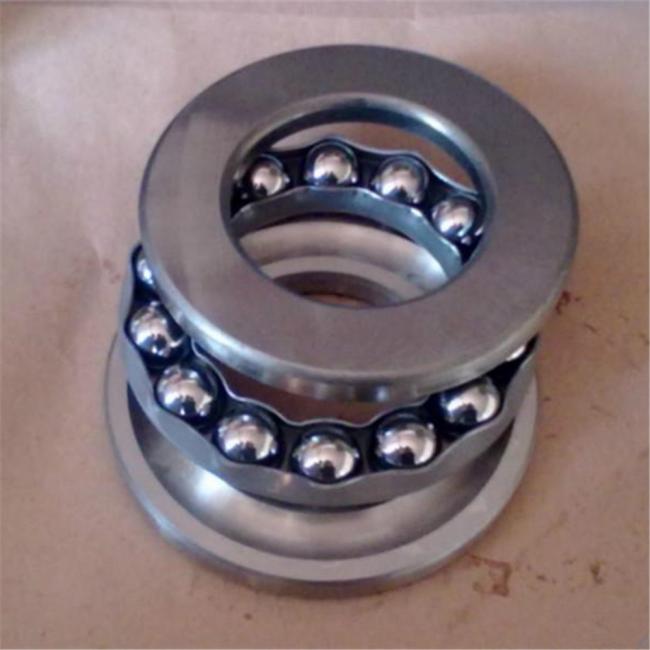

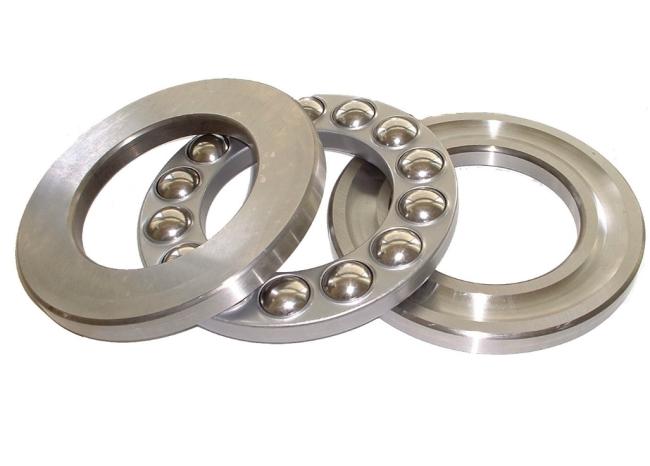

2. Thrust ball bearing total have 3 parts component , 1 seat ring , 1 shaft ring and 1 cage with steel balls .
3. Easy to install and maintaining .
4. Advanced Grease Technology – our lubricants that can extend grease life and performance.
5. High Grade Balls - Quiet and smooth operation even at high speed.
Description
Thrust ball bearing is a kind of separable bearing, they consist of a shaft washer, housing washer, ball and cage assemblies, which can be mounted separately. Shaft washers have a ground bore to enable an interference fit. The bore of the housing washer is turned and always larger than the shaft washer bore
The following are thrust ball bearings in stock list,
|
51220 |
51332 M |
51064 M |
59184 F |
|
51320 |
51134 M |
59164 M |
51184 F |
|
51420 M |
51234 M |
51164 M |
51284 F |
|
51122 |
51334 M |
51264 F |
51088 F |
|
51222 |
51136 M |
51068 M |
BD1B 634131 |
|
51322 M |
51236 M |
59168 M |
59188 F |
|
51422 M |
51336 M |
51168 F |
51188 F |
|
51124 |
51138 M |
51268 F |
51288 F |
|
51224 |
51238 M |
51368 F |
51092 F |
|
51324 M |
51338 M |
51072 F |
59192 F |
|
51424 M |
51140 M |
59172 F |
51192 F |
|
51126 |
51240 M |
51172 F |
51292 F |
|
51226 |
51340 M |
51272 F |
51096 F |
|
51326 M |
51144 M |
BD1B 634132 |
59196 F |
|
51426 M |
51244 M |
51076 F |
51196 F |
|
51128 |
51148 M |
351793 |
51296 F |
|
51228 |
51248 M |
59176 F |
510/500 F |
|
51328 M |
51152 M |
51176 F |
591/500 F |
|
51428 M |
51252 M |
51276 F |
511/500 F |
|
51130 M |
51156 M |
51080 F |
512/500 F |
|
51230 M |
51256 M |
59180 F |
510/530 F |
|
51330 M |
51060 M |
51180 F |
351794 |
|
51430 M |
59160 M |
51280 F |
591/530 F |
|
51132 M |
51160 M |
BD1B 351955 |
511/530 F |
|
51232 M |
51260 M |
51084 F |
510/560 F |
