Stainless Steel Roller Bearings High Speed Electric Motors 02474 / 02420
TAPER ROLLER BEARING DETAILS
Tapered roller bearing can be separated from the inner ring with roller cage components together and the outer ring can be installed separately. As amended by the roller and raceway contact at the contact line can reduce the stress concentration. The tapered roller bearing can withstand large radial and axial load. Tapered roller bearings can only pass one-way axial load, axial load in the opposite direction to pass on another with symmetrical installation of tapered roller bearing.
Tapered roller bearings are widely used in automotive, mill, mining, metallurgy, plastics machinery and other industries.
1. Taper roller bearings are the largest amount of single row circular cone roller bearings.
2. Single row circular cone roller bearings, which formed a circle and a group of tapered roller
3. Double row circular cone roller bearing outer ring (or in) is a whole.
Best quality Metric Tapered roller bearing 02474 / 02420
Technical data of taper roller bearing 02474 / 02420
d: 28 mm
D: 68 mm
T: 23 mm
W: 0.41kg

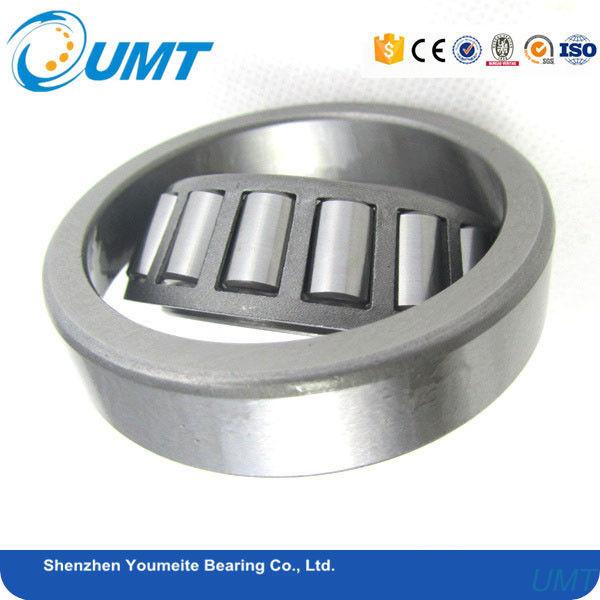

Tapered Roller Bearing 02474 / 02420
| Material | Gcr15 Material/Chrome Steel |
| Quality | P0,P6 |
| Structure | Taper roller |
| Cage | Pressed steel cage |
| Brand name | NSK / NTN / FAG / NACHI / KOYO / ASAHI / TIMKEN / UMT |
| Series | 30200series,30300series,32300series,31300series, 32000series,33000series,33200series,33100series,Inch series. |
| Certificate | ISO9001:2008,CE |
| Service | OEM&ODM |
| Market | Europe,South America,North America,Middle East,Southeast Asia |
| Application | used in many areas of large steel mills, aviation,aerospace,marine,railway,metallurgy,steel, mining,electricity,machinery manufacturing,printing, electronics,textiles,food,chemical,automotive etc. |
Details of Tapered roller bearings
(1)Features:
Capable of taking high radial loads and axial loads in a single direction, taper roller bearings are also available in two and four row versions to support axial loads in either direction.
Optimised designs can be supplied with high strength cages and, for arduous applications, in a range of advanced special materials.
(2)Structure types:
- Single Row Tapered Roller Bearing
These bearings are capable of taking high radial loads and also axial loads in one direction.
- Double Row Tapered Roller Bearing
These bearings are capable of taking high radial loads and also axial loads in two directions.
- Four Row Tapered Roller Bearing
Sealed version generally used for work roll of rolling mills.
(3)Application:
Home appliances,low noise and high speed electric motors,automotive components, pumps, machinery.
(4)Bearing catalogue:
| Ball bearing | Deep Groove Ball Bearing |
6000 series, 6200 series, 6300 series, 6400 series, 6900 series,--- 1600series, 16000 series. Double row: 4200A, 4300A--- Also we can provide high temperature deep groove ball bearing such as S1, S2, S3. |
| Self-aligning Ball Bearing | 1200series, 1300series, 2200series, 2300series | |
| Angular Contact Ball Bearing |
Single row angular contact ball bearing: 7000 series, 7200 series, 7300 series.--- Double row angular contact ball bearing: 300 series, 3200 series, 3300 series. |
|
| Thrust Ball Bearing |
51100 series, 51200 series, 51300 series, 51400 series, 52200 series, 52300 series, 53200 series, 53300 series |
|
| Pillow block ball bearing |
UC series, UCP series, UCF series, UCFS series, UCFC series, UCFL series, UCC series, UCT series |
|
|
Roller Bearing |
Spherical roller bearing |
20000 series, 21000series, 22000 series, 23000 series, 24000 series.--- Brass cage: CC, CA, CAK.---Steel cage: EK |
| Cylindrical Roller Bearing |
Single row: N, NF, NH, NJ, NU, NFP, NUP, NUB series.--- Double row: NN, NNF, NNU series.--- Four row: FC, FCD series.--- Full complement : SL series. |
|
| Tapered Roller Bearing |
Single Row taper roller bearing: 30000 series, 31000series, 32000 series, 33000 series.--- Double Row taper roller bearing: D, CD.--- Inch taper Roller Bearing: 68149/10, 69349/10, 68548/10, 67 |
|
| Thrust Roller Bearing |
81100 series,81200 series,29200 series,29300 series,29400 series, AXK series,AS series |
|
| Needle Roller Bearing | HK, NA, NK, RNA, NUTR, K, BK Series. | |
| Other bearing | Rod end joint bearing |
Rod ends: SI, SA, SSI, SSA, PHS, POS, SIZP, SAZP, SIZJ), SAZJ series. Radial spherical plain bearings: GE, GEG, GEZ, GEGZ, GEBK, GEBJ, GEWK series. Rod ends for hydraulic components: GIHR, GIHR-K, GIHN-K, GIHO-K, GK, GF series.-- Ball joint rod ends: SQD, SQZ, SQ series. |
Company Information
Shenzhen Youmeite Berings CO., ltd is branch company of shandong UMT bearingcorporation responsible for oversea marketing.
Our plant shandong UMT has been working in the filed of bearing design and
manufacturing for more than 10years now is taking a leading position in mainland china.
Our plant has more than 500 employees , including 30 bearing professional techincians;
more than 600 new bearing items can be completed each year.
we can produce many kinds of bearing as customer's requirement.
