22205 Double Row Mining Roller Radial Ball Bearing Stainless Steel

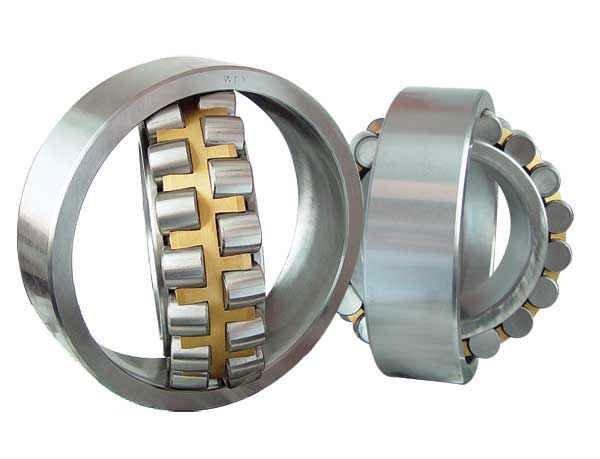

                         22205 double row Spherical roller bearing mining roller bearing

Description:

Model No.22205 CA/W33
Sealed type :openInner ring (d)130 mmOut ring (D)200 mmWidth (B)52 mmMaterialstainless steel,chrome steelBasic dynamic load rating (Cr)342 N
Basic static load rating (Cor)565 N
Grease speed1300 RPMOil speed1700 RPMWeight6.64 KGClearance
C0, C2,C3Precision RatingP0, P6,P4 spherical roller bearing


Quick Detail:


1. Structure:  Roller bearing
2. Brand Name: UMT, NTN, NSK, TIMKEN, KOYO
3. Bore Size:  20mm
4. Outside Diameter:  52mm
5. Model Number: 22205
6. Precision Rating: ABEC-1/ P0, ABEC-3/P6, ABEC-5/P5, ABEC-7/P4
7. Number of Row: Single row
8. Place of Origin: Japan
9. Width: 18mm
10. Net weight: 0.28KG
11. Material: GCr15 Stainless steel and so on
12. Type: ball bearing
13. Clearance: C0,C1,C2,C3,C4,C5 etc.
14. Vibration: V1,V2,V3
15. Service: OEM Service & Good Service
16. Sample available: Yes
17. Manufacturer: Yes



Applications:

The rollaway of outside race is in shape of sphere.

It has self aligning and it can make up for the error which from different angles. But its opposite gradient between outside and inside race is less than 3 degrees. The structure principle and the character of the bearing are the same with self aligning ball bearing. Under the condition of permissible volume of load and permissible speed of rotation, they can interchange.

Self aligning roller bearings apply to precise instrument, the electrical appliance of low noise, automobile, motorbike and other machineries. It is used the most widely in mechanical industry.



Competitive Advantage:
1.  Quality level: reach the same level as the Japanese and European bearings
2.  Tolerance level: ABEC-1 (P0), ABEC-3 (P6)
3.  Less coefficient of friction
4.  High limiting speed
5.  Large size range
6.  variations of structure
