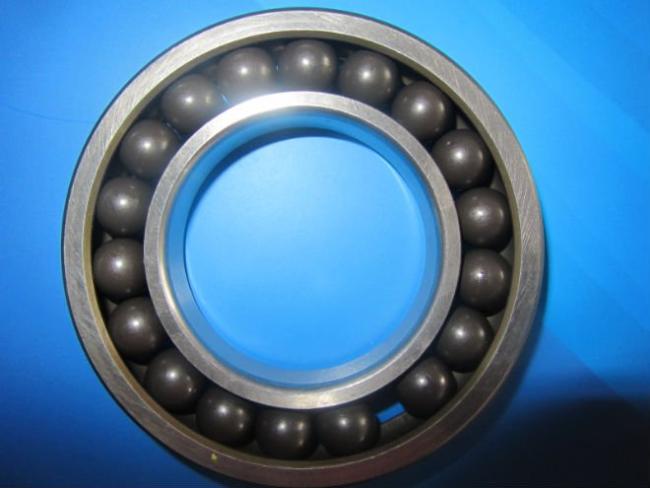

Ceramic Ball Bearings Small Ball Bearings 605 5*14*5mm Dental

                   Ceramic ball bearings Small Ball Bearings 605 5*14*5mm dental bearing

Description:

Quick Detail:
1. Structure: deep groove ball bearings
2. Brand Name: UMT, NTN, NSK, TIMKEN, KOYO
3. Bore Size:  5mm
4. Outside Diameter:  14mm
5. Model Number: 605 zz
6. Precision Rating: ABEC-1/ P0, ABEC-3/P6, ABEC-5/P5, ABEC-7/P4
7. Number of Row: single
8. Place of Origin: Japan
9. Width: 5mm
10. Net weight: 3.5g
11. Material: GCr15, Chrome steel
12. Cage: Steel,Brass,Nylon
13. Type: ball, deep groove ball bearing
14. Clearance: C0,C1,C2,C3,C4,C5 etc.
15. Vibration: V1,V2,V3
16. Service: OEM Service & Good Service
17. Sample available: Yes
18. Manufacturer: Yes


Ceramic Balls:

We are special in making Silicone Nitride Balls (Si3N4 Balls,Zicronia Balls (ZrO2 Balls),Sic Ceramic Balls , Aluminum Oxside Valve (AI203) ceramic balls.

Compared with steel, ceramic materials are noted for their better or particular characters, such as wear-resistance, corrosion resistance, high temperature resistance, electrical insulation (except SiC), non-magnetic, high strength, high rigidity, and low specific gravity. These properties qualify them for replacing steel to make bearings serve in conditions of higher speed, harsh environment and less lube, and decrease wear, noise, vibration and maintenance time of bearings, and eventually increase performance, reliability and life of bearings.


Applications:

They can be used for Transmission system, gearboxes, wheel hubs; Cranes, elevator and lifting
equipment; Agricultural, pumps, mining; Rail and transport use; General engineering applications;
 Marine and Shipping;
The usage: Motors, Power tools, Household appliances, Trailers, Casters, Agricultural equipment,
Textile machinery, Printing Machinery, Automotive applications, Caravan wheel bearings.


Competitive Advantage:

1.  Quality level: reach the same level as the Japanese and European bearings
2.  Tolerance level: ABEC-1 (P0), ABEC-3 (P6)
3.  Less coefficient of friction
4.  High limiting speed
5.  Large size range
6.  variations of structure
