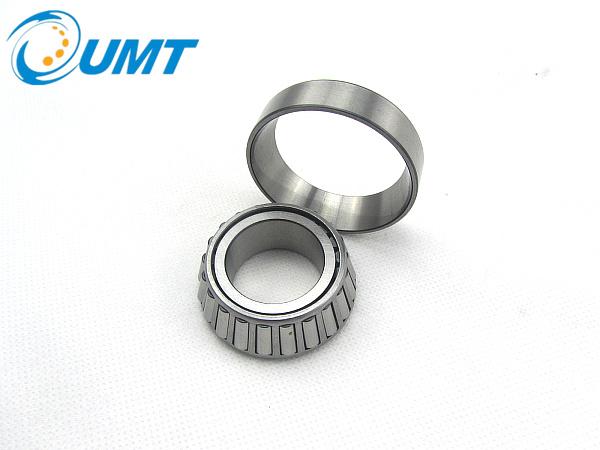

Stock L68149 cone Taper Roller Bearing L68110 taper cup Gcr15 silver ball bearings

Stock L68149 cone Taper Roller Bearing L68110 taper cup Gcr15 silver ball bearings

Quick Detail:

1. Structure: Taper Roller Bearing

2. Type: Roller

3. Brand Name: UMT , OEM brand

4. Bore Size: 34.987 mm

5. Outside Diameter: 59.131 mm

6. Model Number: L68149

7. Precision Rating: ABEC-1/ P0, ABEC-3/P6, ABEC-5/P5, ABEC-7/P4

8. Seals Type: OPEN

9. Number of Row: Single Row

10. Place of Origin: China

11. Width: 15.875 mm roller bearing

12. Net weight: 0.09 kg

13. Material: Chrome steel

14. Cage: Steel / iron

15. Type: roller. taper roller bearing

16. Clearance: C0,C1,C2,C3,C4,C5 etc.

17. Vibration: V1,V2,V3

18. Service: OEM Service & Good Service

19. Sample available: Yes,

20. Manufacturer: Yes,

Description:

Tapered roller bearing can be separated from the inner ring with roller cage components together and the outer ring can be installed separately. As amended by the roller and raceway contact at the contact line can reduce the stress concentration. The tapered roller bearing can withstand large radial and axial load. Tapered roller bearings can only pass one-way axial load, axial load in the opposite direction to pass on another with symmetrical installation of tapered roller bearing.

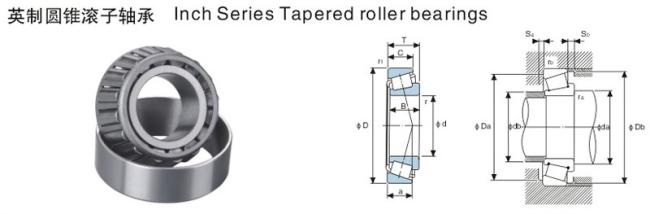

Circular cone roller bearings basic size has been listed in size data table

Single row taper roller bearing

ID inside diameter range

20mm-1270mm

OD outer diameter range

40mm-1465mm

T width range

15-240mm

Specifications:

Stock L68149 cone taper roller bearing L68110 taper cup Gcr15

Applications:

Tapered roller bearings are widely used in automotive, mill, mining, metallurgy, plastics machinery and other industries.

Competitive Advantage:

1. Quality level: reach the same level as the Japanese and European bearings

2. Tolerance level: ABEC-1 (P0), ABEC-3 (P6)

3. Less coefficient of friction

4. High limiting speed

5. Large size range

6. variations of structure
