Durable Lihtium Ion Rechargeable Batteries 3.7V 16500 1200mAh 4.44WH 17500 Cell
3.7V 16500 1200mAh Lihtium Ion rechargeable Batteries 4.44WH MSDS
Cylindrical Li-ion battery cell 16500 3.7V 1200mAh 4.44Wh rechargeable Akku
17500 3.7V 1200mAh support 1C constant discharge rate 3C max discharge current
Reliable quality and stable performance with high discharge platform
100% in house testing and Lab. report charge and discharge data
Customized battery pack design with PCM Wire connect supported
MSDS UN38.3 DG License support air sea and courier door to door overseas delivery
16500 17500 3.7V 1200mAh Lithium ion battery cell Specification :
| 16500 17500 3.7v 1200mAh | Specifications |
| Typical Capacity | 1230mAh @ 0.2C Discharge (0.2C) |
| Minimum capacity | 1200mAh @ 0.2C Discharge (0.2C) |
| Nominal voltage | 3.7V |
| Standard Charge | CC/CV,0.2C5A, 4.20V |
| Standard Discharge | CC,0.2C5A, 3.00V |
| End-of-charge Voltage | 4.20V±0.05V |
| End-of-charge Current | 0.02C5A (At CV mode) |
| End-of-discharge Voltage | 3.00 V |
| Charging Time | 8.0hours(standard charge) |
| Quick Charge Current | 1200mA (1.0C5rate) 1C |
| Quick Discharge Current | 2400mA (2.0C5rate) 2C |
| Max Discharge Current | 3600mA (3.0C5rate) 3C |
| Initial Iedance | Max:55mW |
| Weight | Approx:27.5±2g |
| Operating teerature | Charging: 0℃~45℃ |
| Discharging:-20℃~60℃ | |
| Storage teerature | -5℃~35℃ |
| Storage Humidity | ≤75% RH |
| Appearance | Without scratch, distortion, contamination and leakage |
| Standard environmental condition | Teerature : 25±2℃ |
| Humidity : 45-75%RH | |
| Atmospheric Pressure : 86-106 KPA |

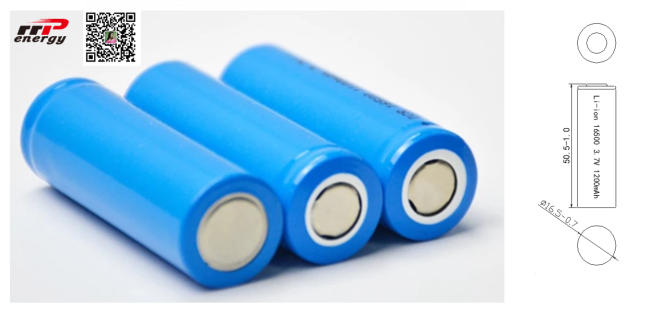

17500 3.7V 1200mAh battery dimension 16500 3.7V 1200mAh draw :
16500 17500 3.7V lithium ion cylindrical cell Application :
Power tools battery , Emergency lighting battery pack , Vacuum cleaner battery ,
Flash light battery , torch battery , UPS battery , Ebile battery , Solar street battery ,
Solar system battery , LED Battery , Toys battery , E ciga battery .
