7.2V 6.5Ah Hybrid Car Battery Honda Civic Hybrid Battery Pack
7.2V 6.5Ah Hybrid Car Battery Honda Civic Hybrid Battery Pack
ima civic hybrid car battery 7.2V 6.5Ah insight accord battery pack
Original hybrid car battery replacement for the insight 2000 2001 2002 2003 2004 2005 2006
Honda Accord 2005 5006 2007
Honda Civic 2003 2004 2005
nimh Battery hybrid replacement stick
Honda Prius NHW11 2001 2002 2003
Original Prius NHW10 1998 1999 2000 2001
7.2V 6.5Ah Hybrid car battery Pack Specification :
Designed for Hybride Car Hybrid Vehicle
| HEV Battery Pack | Specification | |
| Hybrid car battery manufacture | MaxPower | |
| Outer Diameter (mm) | 34.0±0.5 | |
| Battery Module Dimensions | Total Length (mm) | 382±2(including terminal) |
| negative terminal | M6( 6 angles nut M6) | |
| positive terminal | M6(4 angels nut M6) | |
| Approximate Weight (g) | 1060 | |
| Nominal Capacity (mAh) | 6000 | |
| Nominal Voltage (V) | 7.2 | |
| Internal Resistance (mΩ) | ≤9.0 | |
| Peak Discharge (30C discharge,10S cut-off) | ≥4.8V | |
| Peak Charge(15C charge,10S cut-off) | ≤9.96V | |
| Continuous Discharge (15C discharge,60S cut-off) | ≥5.4V | |
| High Teerature Performance (1C discharge rate at 55℃) | ≥90% | |
| Low Teerature Performance(1C discharge rate at -20℃) | ≥80% | |
| Charge Retention Performance (28 days’charge retention rate) | ≥85% | |
| Cycle Life(1C charge and discharge) | ≥1000 cycles | |
| Quality Guarantee | 3 years or 100000KM | |
| Battery order Lead time | 5-8 working days |
|
Original NIMH hybrid car battery with grade A level Cells
Long cycle life and high discharge design
With 3 years or 100000 KM quality Guarantee
Install easy and match with original car perfectly
| Hybrid Car Replacement Battery | Specification | |
| Battery Pack Dimension(mm) | Length× Width× Height | 382*34*34 |
| Approximate Weight (kg) | 21 | |
| Nominal Capacity (mAh) | 6000 | |
| Nominal Voltage (V) | 144.0 | |
| Peak Discharge(30C 10S)(30C discharge for 10S) | voltage≥96V | |
| Peak Charge(15C 10S) (15C charge for 10S) | voltage≤200V | |
| Continuous Discharge(15C 60S) (15C discharge for 60S) | voltage≥108V | |
| Specific Power | ≥1000W/kg | |
| Specific Energy | ≥40Wh/kg | |
| High Teerature Performance(55℃ 1C)( 55℃ 1C discharge rate) | ≥90% | |
| Low Teerature Performance(-20℃1C ) (-20℃ 1C discharge rate) | ≥85% | |
| Charge Retention Performance(28 Days)(28days charge retention rate) | ≥80% | |
| Working Teerature Range | -40 degree to + 55 degree |
|

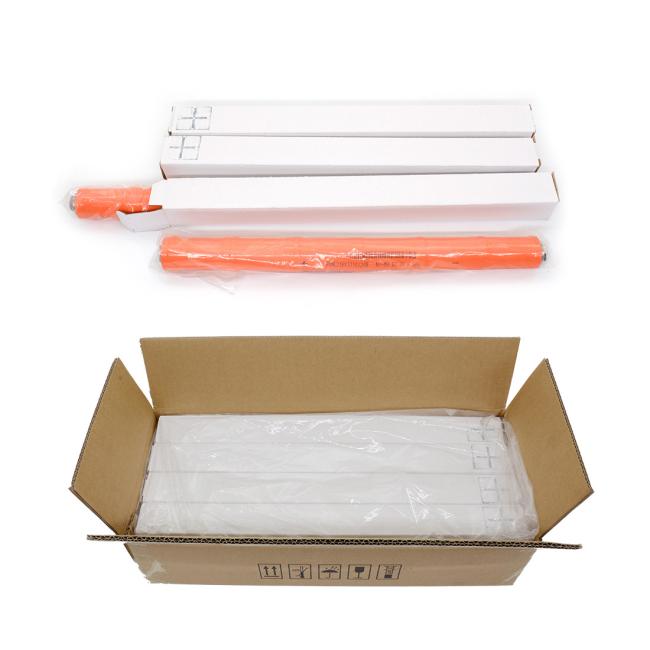

NIMH Hybrid car battery package :
IMA nimh hybrid battery customer feedback :
More original hybrid car battery pack ,contact Lucy directly for e-catalogue and price list.
