W Shaped Highway Guardrail Forming Machine with pre punch 3mm thickness

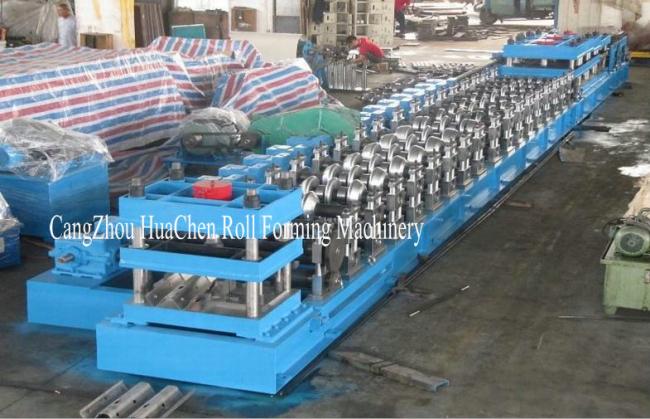

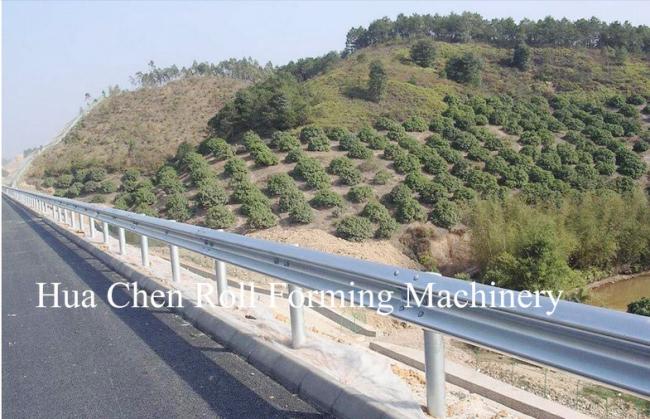

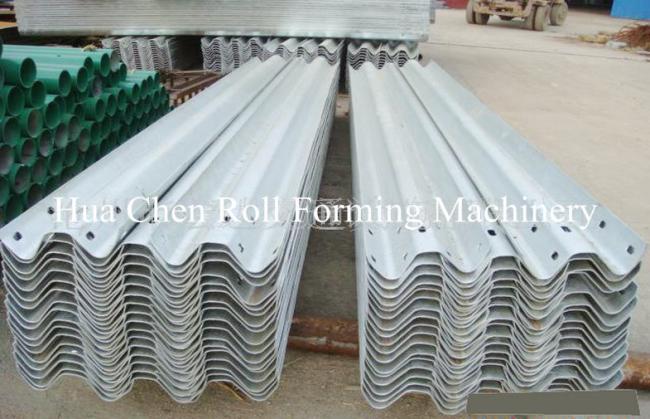

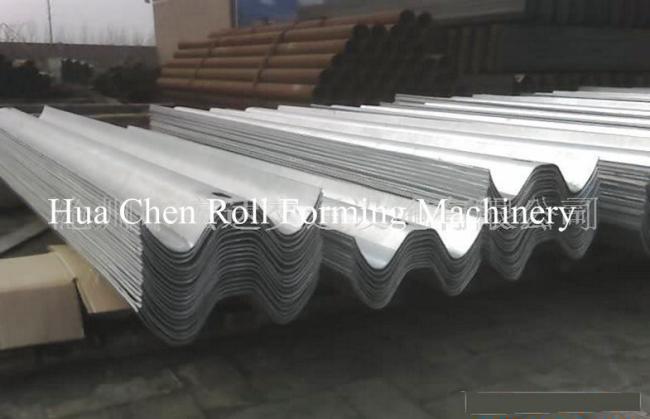

Highway Guardrail Roll Forming Machine
Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate: 550mm
3. Rollers: 24 rows
4. Dimensions: 11.6*1.35*1.51m
5. Power: 22+7.5kw
6. Rolling material: shaft bearing steel(quenching)
7. Thickness of the plate:2.5-3mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
| Hydraulic Decoiler |
1. inner diameter: 450-550mm 2. outer diameter: 1500mm 3. coil width:1250mm 4. capacity: 5T |
| Feeding&Flatting Device |
1. upper leveling roller: 3 station 2. lower leveling roller: 4 station 3. shaft: 45#steel 4. roller: 45#steel ang outer diameter 80mm |
| Forming Mchine |
1. shaft: 45#steel and outer diameter 80mm 2. roller material: Cr15 3. gear box transmission 4. forming station:18 stations 5. forming speed: 8-12m/min 6. motor: 11kw 7. voltage: 220v 50hz 3phase |
| Hydraulic punching |
1. punching type: hydraulic punching 2. punching material: Cr12 3. punching die: Cr12 |
| Cutting |
1. cutting type: hydraulic cutting 2. cutting material: Cr12&Cr12mov 3. oil pump: 18.5kw |
| Control System |
1. PLC Brand:Delta 2. Screen: touch screen 3. automatic length and quantity measurement 4. control forming speed 5. error is easy to adjust 6. scram stop button |
| Runout Table | length of runout table is according to client requirement |
5,Description:
Highway Guardrail R Forming Machine Main parameter
|
No. |
Main parameter of Highway Guardrail R Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
550mm |
|
3 |
Rollers |
24 rows |
|
4 |
Dimensions |
110600*1350*1510mm |
|
5 |
Power |
33+7.5kw |
|
6 |
Rolling material |
shaft bearing steel(quenching) |
|
6 |
Thickness of the plate |
2.5-3mm |
|
7 |
Productivity |
8-10m/min |
|
8 |
Diameter of the roller |
Φ100mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-leveling-roll forming machine-computer control system-hydraulic control system-punching-cutting
Competitive Advantage
1. ISO certification
2. CE certification
3. PLC Panasonic
4. One year free warranty
5. Low loss, easy operate
