Galvanized Roofing Sheet Roll Forming Machine with 15m/min Speed, 45# Steel Quenching and Plating Rollers, and 380V 50Hz 3Phases Power
Durable roll forming equipment for high-quality galvanized roofing sheet production.

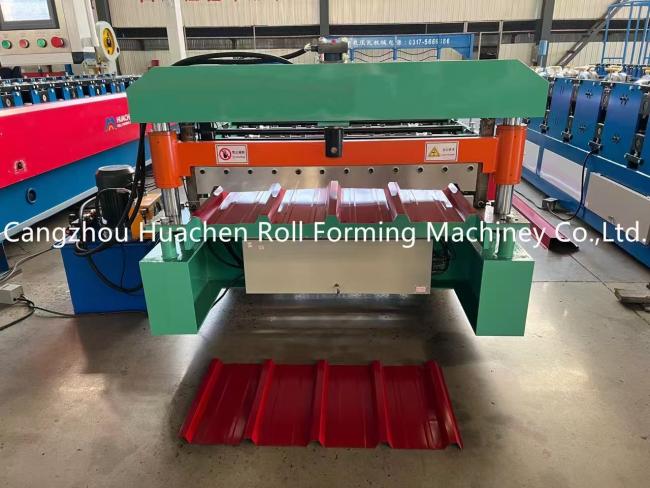

Roof panels manufactured by this equipment feature high strength, durability, and smooth beautiful appearance with uniform lacquer veins. Widely used in steel-structured buildings including large-scale warehouses, stadiums, shopping malls, trade markets, holiday villages, sanatoriums, hotels, villas, residences, and various types of greenhouses. Equipment can be custom-designed and manufactured to meet specific customer requirements.
Decoiling → Feeding the steel sheet → Guiding → Roll forming → Cut to length → Products stacking → Move out products lengthways
| Parameter | Specification |
|---|---|
| Material Type | PPGI/GI |
| Thickness | 0.3-0.6mm |
| Width | 1220mm |
| Roller Stations | 15 Stations |
| Roller & Shaft Material | 45# Steel Quenching and Plating |
| Diameter of Shaft | Φ70mm |
| Cutter Material | CR12 |
| Drive Type | Chain Drive |
| Speed | 15-20m/min |
| Total Power | 5.5+5.5KW |
| Voltage | 380V, 50HZ, 3 Phase (customizable) |

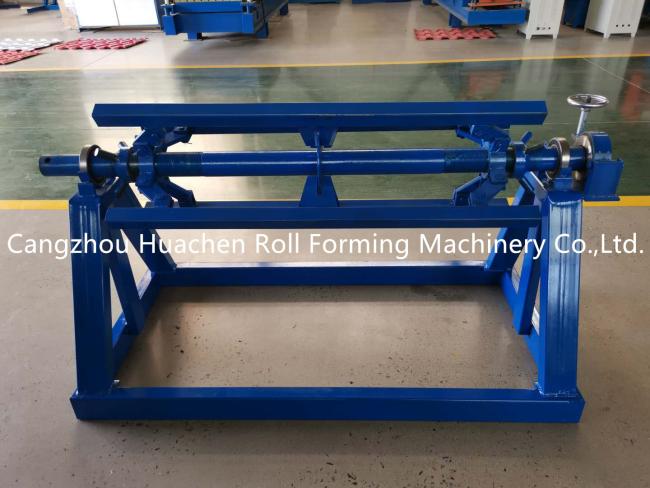

This component supports the coil and enables rotary movement. Bearing capacity: 5T. Inner diameter: 470-530mm (adjustable according to demand). Equipped with brake device to prevent machine damage from impact during operation.

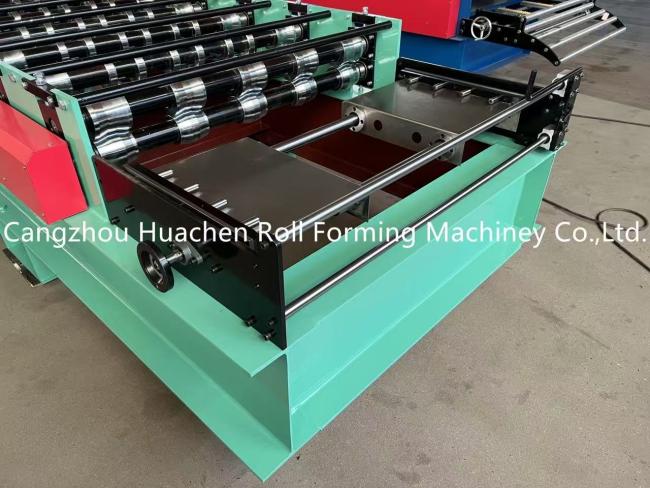

Guides the coil into correct position for roll forming. Includes hand pull cutting device for convenient pre-cutting when changing color or thickness.

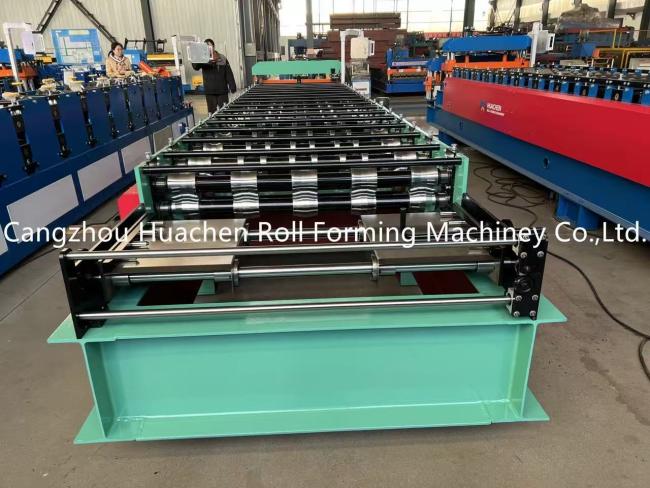

Material: 45# Steel Quenching and Plating. Processed rollers are smooth, hard, rust-resistant, and will not scratch the sheet during operation.

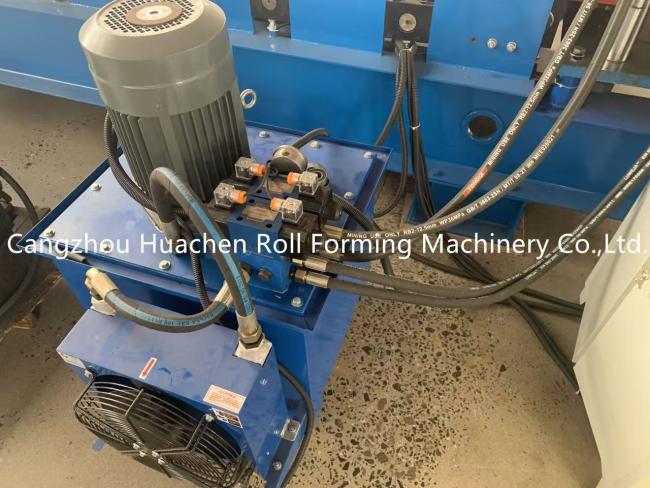

Drives the cutter for cutting operations. Hydraulic tank uses 46# hydraulic oil. Equipped with cooling fan for internal circulation cooling to prevent high oil temperature issues during operation. Solenoid valve brand: Huade.

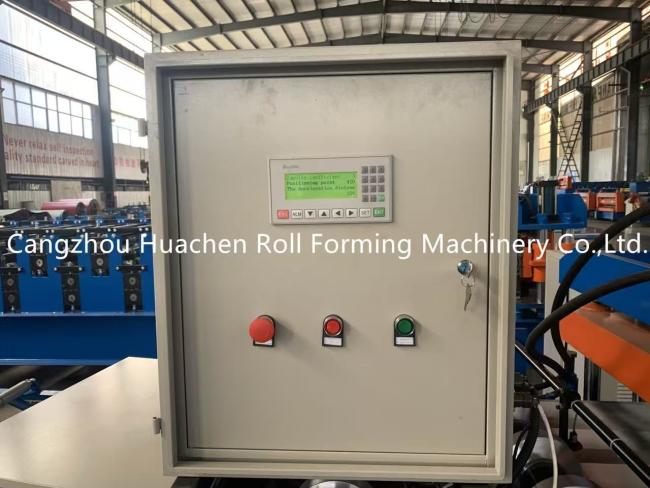

Features automatic and manual operation modes. Allows setting of unit length and quantity on touchscreen. Simple and easy to operate system. Electrical components: VFD (Delta), Circuit breaker (Delixi), Contactor (Delixi), Relay (Xinling), PLC (Delta), Transformer (Delixi).
Blade material: CR12. Features high strength, excellent hardenability, and superior wear resistance.
Collects formed products. Bracket equipped with rollers to facilitate product forwarding without scratching.
| Component | Quantity |
|---|---|
| Chains | 2 Sets |
| Solenoid Valve | 1 Set |
| Travel Switch | 2 Sets |
| Open-End Wrenches | 2 Sets |
| Hexagon Wrench | 2 Sets |
| Counter | 1 Set |
| Wrench | 2 Sets |
| Oil Seals | 1 Set |
- Independent guide post supporting wall plate with internal transmission chain; rollers treated with mirror polishing
- Sheet pre-cutting equipment to minimize raw material waste
- Procedure control and encoder length measurement system
- Automated procedure control stacher for automatic stacking, counting, and product removal
