High Speed Metal C Purlin Roll Forming Machine For Building Steel Structure
High Speed Metal C Purlin Roll Forming Machine for Building Steel Structure
Building Steel Structure Metal C Purlin Roll Forming Machine With High Speed is the special equipment for continuous rolling and cold-forming on steel sheet. It adopts coiling steel sheet as the raw material, decoiling, continuous rolling and cold-forming, automatically cut to the size and specification which is required, and output the finished panels. The equipment adopts PLC control, AC frequency and adjusting the speed technology, and it realizes the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for steel structure.
Technical Parameters
| No | Item | Parameter | Remark | |
| 1 |
Suitable
Material |
Type | Galvanized steel | |
| Width(mm) | According to customer's requirement | |||
| Thickness(mm) | 1.2-2.4 | According to customer's requirement | ||
| Yield Strength(Mpa) | 550 | According to customer's requirement | ||
| 2 | Forming Speed(m/min) | 20 | Not including cutting time | |
| 3 | Material of Punching Die | bearing steel | with quench treatment | |
| 4 | Cutting Model | hydraulic cutting | According to customer's requirement | |
| 5 | Power source | Type | 440V/3PH/60HZ | According to customer's requirement |
Machine Components
| No | Name | Quantity | Remarks | |
| 1 | Decoiler | 1set | Up to customer | |
| 2 | Main machine | Pre-cutting device | 1set | Up to customer |
| Feeding device | 1set | |||
| Roll forming system | 1set | |||
| Post cutting device | 1set | |||
| Hydraulic system | 1set | |||
| 3 | Electric control system | 1set | ||
| 4 | Supporter/Automatic Stacker | 1set |
Up to customer |
|

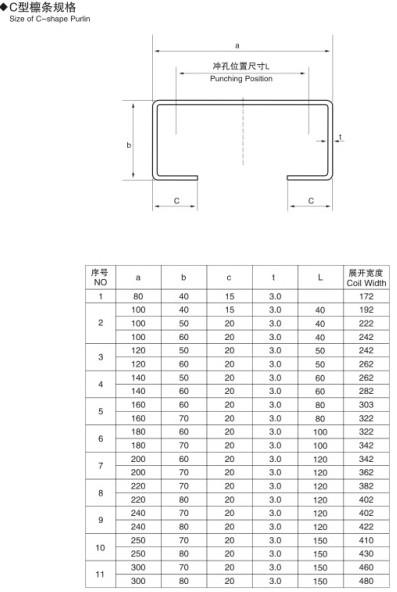

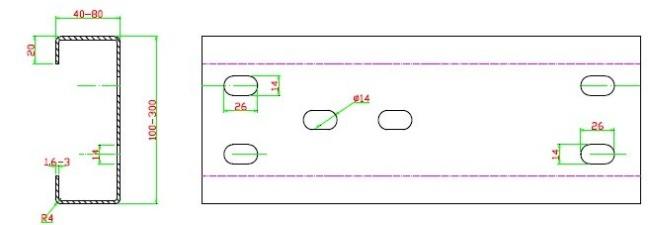

Profile Drawing
Working Flow
Decoiler --- Fedding & Leveling --- Roll Forming --- Punching --- Cut-to-length --- Run out table
Main Components
- Decoiler ---------------------------------------------- 1 Unit
- Feeding & Leveling -------------------------------- 1 Unit
- Main roll forming machine ------------------------ 1 Unit
- Hydraulic punching device ----------------------- 1 Unit
- Hydraulic cutting device -------------------------- 1 Unit
- Hydraulic Station ----------------------------------- 1 Unit
- PLC computer control ----------------------------- 1 Unit
- Output table ----------------------------------------- 1 Unit
Application
C purlin, c shaped purlin, c channel, lip channel, c section, c profile, c shape, steel c purlin, c purlin steel structure
Our Advantage
- High Quality
- Reliable
- Durable
- Reasonable Price
- Good after Service
- 1 Year Warranty
- More Than 10 Years Experience
