Automatic Metal Roof Glazed Tile Roll Forming Machine with 0.3-0.6mm Thickness, 12 Stations, and Chain Drive
Professional supplier of automatic metal roof glazed tile roll forming machines with 15+ years of manufacturing experience.

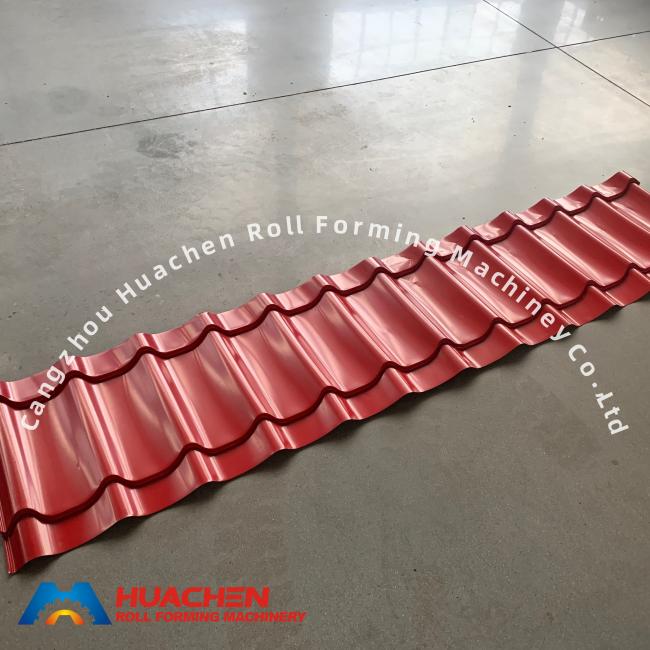

The roof panels produced by our roll forming machine feature beautiful appearance and bright colors, making them suitable for various applications including gardens, factories, resorts, hotels, exhibition halls, vacation lands, ancient architectures, and modern villas.
- Decoiling the sheet
- Sheet guiding
- Roll forming
- Measure length
- Cutting the panel
- Panels to the supporter
| Parameter | Specification |
|---|---|
| Material Type | PPGI/GI |
| Thickness | 0.3-0.6mm |
| Width | 1250mm |
| Roller Stations | 12 Stations |
| Roller & Shaft Material | 45# Steel Quenching and Plating |
| Diameter of Shaft | Φ70mm |
| Cutter Material | CR12 |
| Drive Type | Chain Drive |
| Speed | 4 m/min |
| Total Power | 5.5 + 5.5 KW |
| Voltage | 380V 50Hz 3 phases |
Supports the coil and enables rotary movement. Bearing capacity: 5T. Inner diameter: 470-530mm (adjustable according to demand). Equipped with brake device to prevent machine damage from impact during operation.
Guides the coil into correct position for roll forming. Includes hand pull cutting device for convenient pre-cutting when changing color or thickness.
Material is 45# Steel Quenching and Plating. Processed rollers are smooth, hard, rust-resistant, and will not scratch the sheet during operation.
Drives the cutter for cutting operations. Hydraulic tank uses 46# hydraulic oil. Equipped with cooling fan for internal circulation cooling to prevent high oil temperature issues. Solenoid valve brand: Huade.
Features automatic and manual operation modes. Allows setting of target sheet length and quantity via touchscreen. Simple and easy to operate system. Electrical component brands: VFD: Delta, Circuit breaker: Delixi, Contactor: Delixi, Relay: Xinling, PLC: Delta, Transformer: Delixi.
Blade and pressing mould material is CR12. Features high strength, excellent hardenability, and superior wear resistance.
Collects the formed products. Bracket equipped with rollers to facilitate product forwarding without scratching.
| Component | Quantity |
|---|---|
| Chains | 2 Sets |
| Solenoid Valve | 1 Set |
| Travel Switch | 2 Sets |
| Open-End Wrenches | 2 Sets |
| Hexagon Wrench | 2 Sets |
| Counter | 1 Set |
| Wrench | 2 Sets |
| Oil Seals | 1 Set |
| Professional | 15 years' rich experience! Specialized in roll forming machine since 1998. Keeping improving the quality. |
| Low Price | Save your money from every part! Low labor cost; Convenient transportation; Complete supporting industries. |
| PLC Control | Ensuring high accuracy and easy to operate! Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order. |
| OEM / ODM | Customers' design, color & logo are also accepted! Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality. |
| Warranty & Service | One-Years warranty, whole life service! Within the One-YEAR period, we supply replacement parts free of charge for any damaged parts caused by quality problems. |
- One-Year product warranty
- Training and installation available
- Technical support for the whole life
Yes. We have an experienced team to work out the most suitable design and production plan for the machine.
1. Customers can send technical people to our factory for checking the quality.
2. We can send technicians to the buyer's factory for the installation of the machine.
Within the One-YEAR period, we supply replacement parts free of charge for any damaged parts caused by quality problems. After two years, you need to buy by factory cost.
