4m/min Speed 13 Roller Stations Steel Glazed Tile Roll Forming Machine with 45# Steel Quenching and Plating
Price:
Negotiable
MOQ:
1set
Delivery Time:
25-30days
Brand:
HC
Product Description
6.5T Steel Glazed Tile Roll Forming Machine
Production Speed: 2-4 m/min | 10 Years Life Time
This glazed tile roofing sheet machine is designed for manufacturing high-quality glazed tile roofing sheets used in various construction applications including residential buildings, commercial complexes, industrial plants, shopping malls, stadiums, hotels, villas, and greenhouses. The equipment can be customized according to specific customer requirements.
Production Process
Uncoiling → Feeding material into machine → Roll forming → Measuring length → Step formed → Auto cutting → Products receiving
Main Technical Parameters
| Material Type | PPGI/GI |
| Thickness | 0.3-0.6mm |
| Width | 1200mm |
| Roller Stations | 13 Stations |
| Roller & Shaft Material | 45# Steel Quenching and Plating |
| Diameter of Shaft | Φ70mm |
| Cutter Material | CR12 |
| Drive Type | Chain Drive |
| Speed | 4 m/min |
| Total Power | 5.5 + 5.5 KW |
| Voltage | 380V 50Hz 3 phases |
Component Specifications
5T Manual Decoiler
Supports coil and enables rotary movement. Bearing capacity: 5T. Inner diameter: 470-530mm (adjustable). Equipped with brake device to prevent machine damage from impact during operation.
Feeding Table & Pre-Cutter
Guides the coil into correct position for roll forming. Includes hand pull cutting device for convenient pre-cutting when changing color or thickness.
Shaft & Roller
Material is 45# Steel Quenching and Plating. Processed rollers are smooth, hard, rust-resistant, and will not scratch the sheet during operation.
Hydraulic Pump Station
Drives the cutter for cutting operations. Hydraulic tank uses 46# hydraulic oil. Equipped with cooling fan for internal circulation cooling to prevent high oil temperature issues. Solenoid valve brand: Huade.
Touch Screen Control Cabinet
Features automatic and manual operation modes. Allows setting of target sheet length and quantity via touchscreen. Simple and easy to operate system. Electrical component brands: VFD: Delta, Circuit breaker: Delixi, Contactor: Delixi, Relay: Xinling, PLC: Delta, Transformer: Delixi.

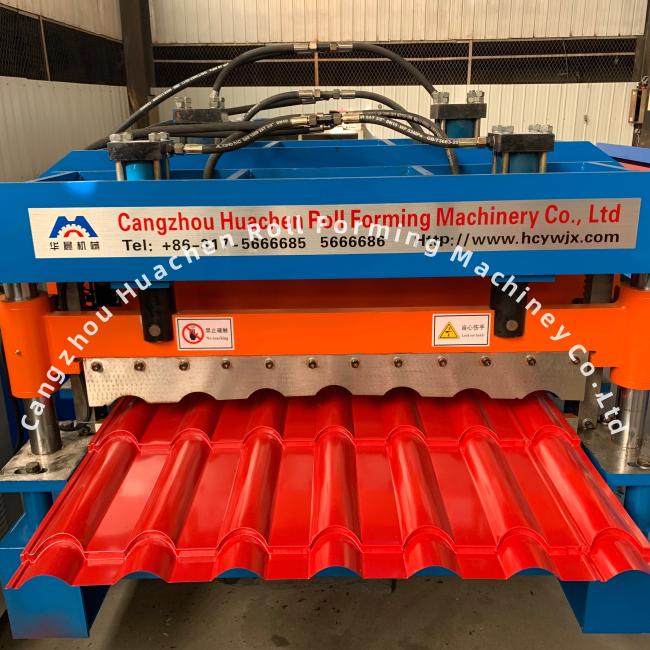

Pressing Section & Cutter
Blade and pressing mould material is CR12. Features high strength, excellent hardenability, and superior wear resistance.
Output Table
Collects the formed products. Bracket equipped with rollers to facilitate product forwarding without scratching.
Included Spare Parts
| Chains | 2 Sets |
| Solenoid Valve | 1 Set |
| Travel Switch | 2 Sets |
| Open-End Wrenches | 2 Sets |
| Hexagon Wrench | 2 Sets |
| Counter | 1 Set |
| Wrench | 2 Sets |
| Oil Seals | 1 Set |

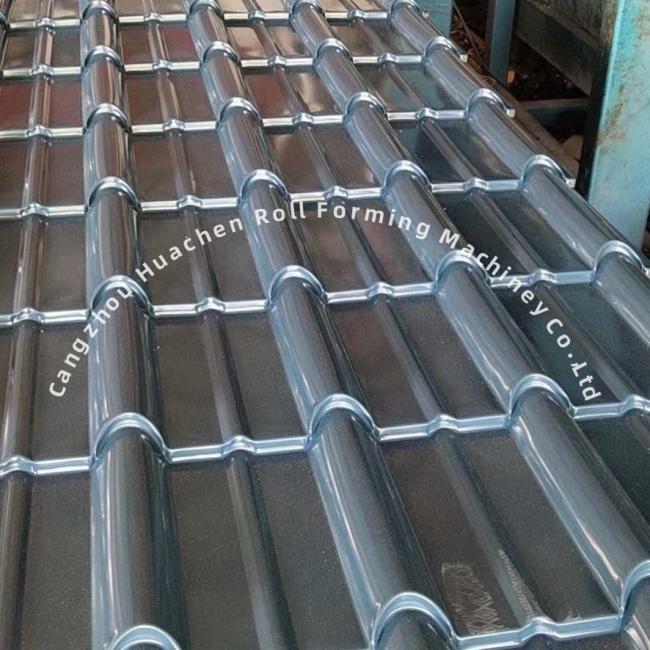

Machine Gallery
Key Advantages
Professional Expertise
15 years' rich experience! Specialized in roll forming machine since 1998 with continuous quality improvements.
Competitive Pricing
Save your money from every part! Benefits from low labor cost, convenient transportation, and complete supporting industries.
PLC Control System
Ensuring high accuracy and easy operation! Full automatic operation: simply input sheet length and quantity requirements.
OEM / ODM Services
Customers' design, color & logo are also accepted! Our specialized experts and skilled workers ensure high quality manufacturing.
Comprehensive Warranty
One-year warranty with whole life service! Replacement parts supplied free of charge for any damaged parts caused by quality problems within warranty period.
Our Services
- One-Year Product Warranty
- Training and Installation Available
- Technical Support for the Entire Machine Life
Frequently Asked Questions
Can you make the machine according to my design or photo type?
Yes. We have an experienced team to work out the most suitable design and production plan for the machine.
How can we be assured that you will deliver us quality machine with spare parts?
1. Customers can send technical people to our factory for quality checking. 2. We can send technicians to the buyer's factory for machine installation.
What is your guarantee policy?
Within the one-year period, we supply replacement parts free of charge for any damaged parts caused by quality problems. After two years, parts are available at factory cost.
