16 Stations Aluminum Roof Glazed Tile Roll Forming Machine with 1220mm Width and Chain Drive
The glazed tile roofing sheet machine is used to manufacture glazed tile roofing sheets for various applications including house roofing, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and different types of greenhouses. Equipment can be custom designed and manufactured according to customer specifications.
- Uncoiling
- Feeding material into machine
- Roll forming
- Measuring length
- Step formed
- Auto cutting
- Products receiving
| Parameter | Specification |
|---|---|
| Material Type | PPGI/GI |
| Thickness | 0.3-0.6mm |
| Width | 1220mm |
| Roller Stations | 16 Stations |
| Roller & Shaft Material | 45# Steel Quenching and Plating |
| Diameter of Shaft | Φ70mm |
| Cutter Material | CR12 |
| Drive Type | Chain Drive |
| Speed | 4 m/min |
| Total Power | 5.5 + 5.5 KW |
| Voltage | 380V 50Hz 3 phases |

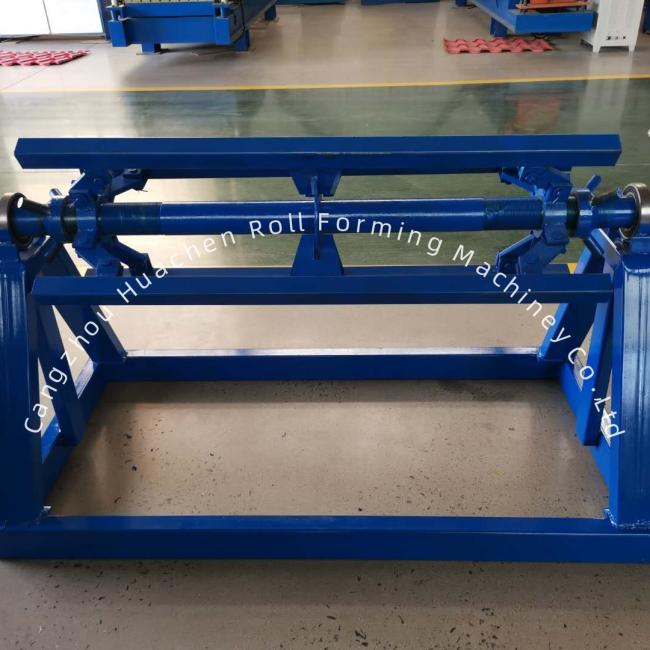

Supports coil and enables rotary movement. Bearing capacity: 5T. Inner diameter: 470-530mm (adjustable). Equipped with brake device to prevent machine damage from impact during operation.
Guides coil into correct position for roll forming. Includes hand pull cutting device for convenient pre-cutting when changing color or thickness.

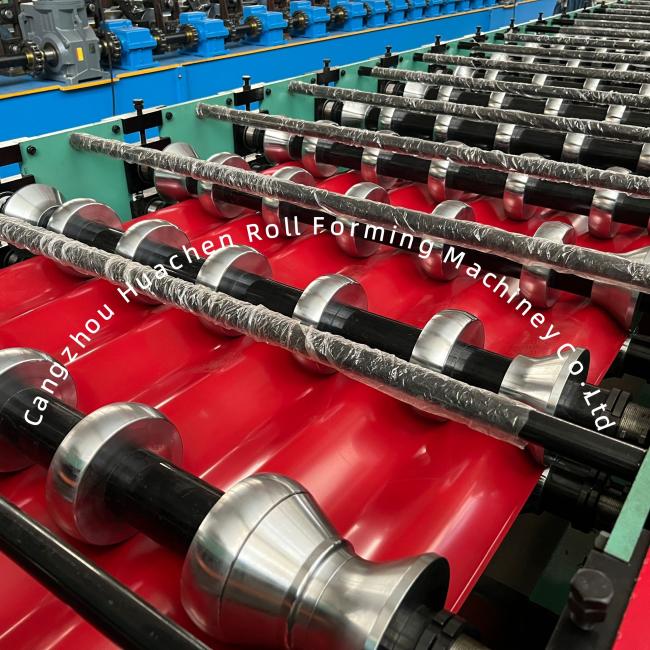

Material is 45# Steel Quenching and Plating. Processed rollers are smooth, hard, rust-resistant, and will not scratch the sheet during operation.

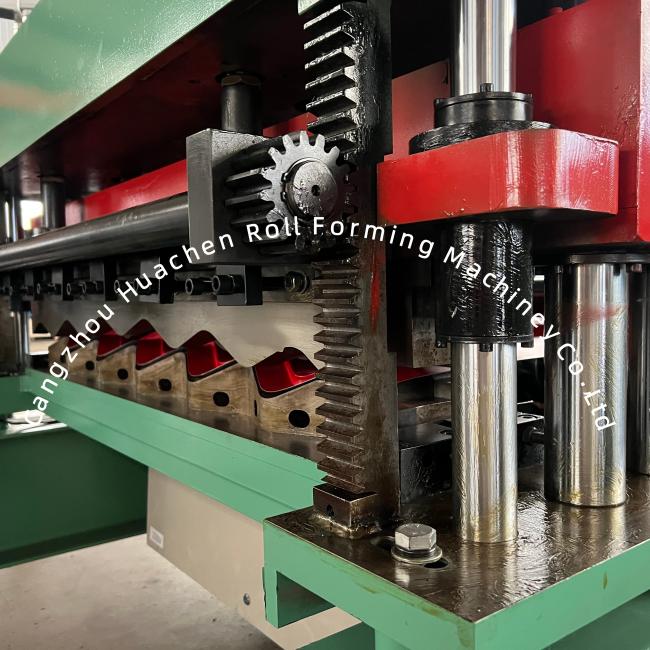

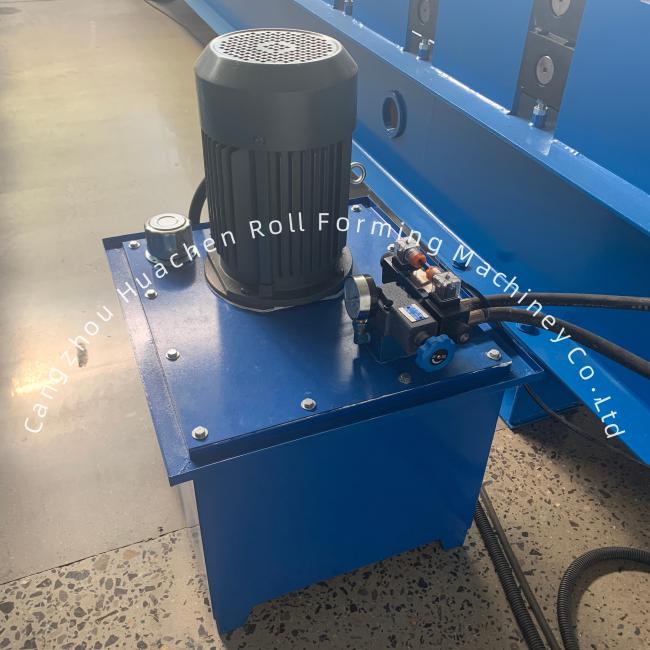

Drives the cutter for cutting operations. Hydraulic tank uses 46# hydraulic oil. Equipped with cooling fan for internal circulation cooling. Solenoid valve brand: Huade.

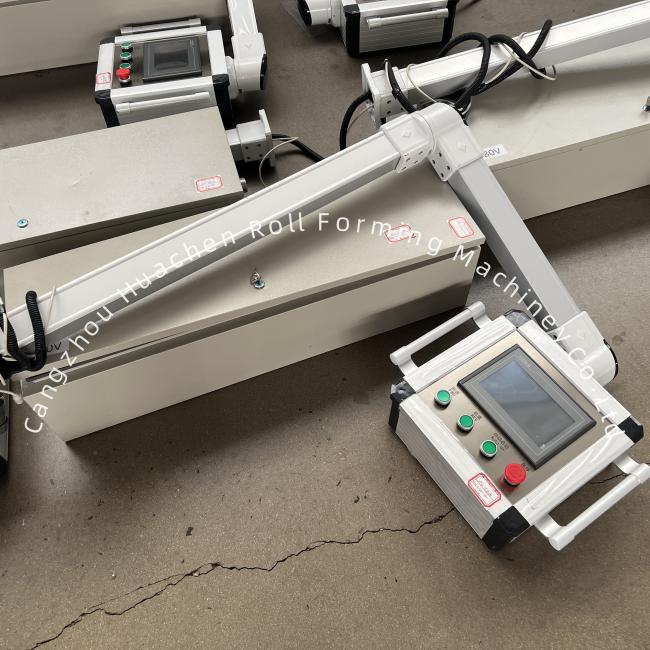

Features automatic and manual operation modes. Allows setting of target sheet length and quantity via touchscreen. Electrical component brands: VFD: Delta, Circuit breaker: Delixi, Contactor: Delixi, Relay: Xinling, PLC: Delta, Transformer: Delixi.

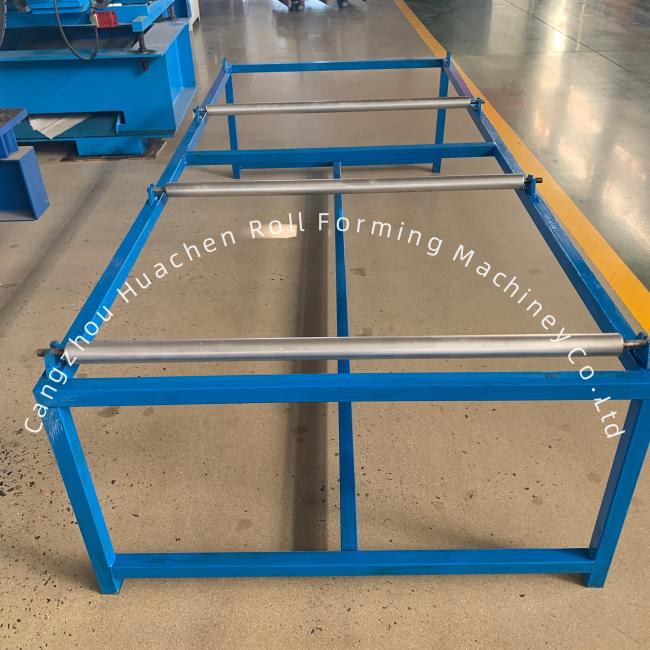

Collects the formed products. Bracket equipped with rollers to facilitate product forwarding without scratching.
| Component | Quantity |
|---|---|
| Chains | 2 Sets |
| Solenoid Valve | 1 Set |
| Travel Switch | 2 Sets |
| Open-End Wrenches | 2 Sets |
| Hexagon Wrench | 2 Sets |
| Counter | 1 Set |
| Wrench | 2 Sets |
| Oil Seals | 1 Set |
- One-Year Product Warranty
- Training and Installation Available
- Technical Support for the Entire Machine Lifecycle
