R32-Hex 28-R28 Flushing Hole 8.8mm R28 Drifter Rod
R32-Hex 28-R28 Flushing Hole 8.8mm R28 Drifter Rod
Description

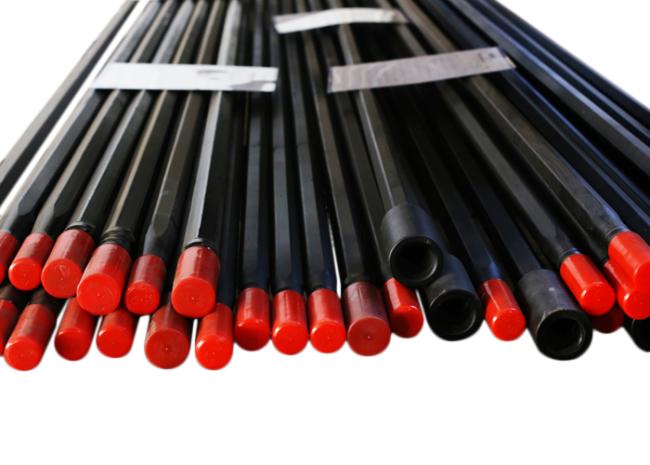

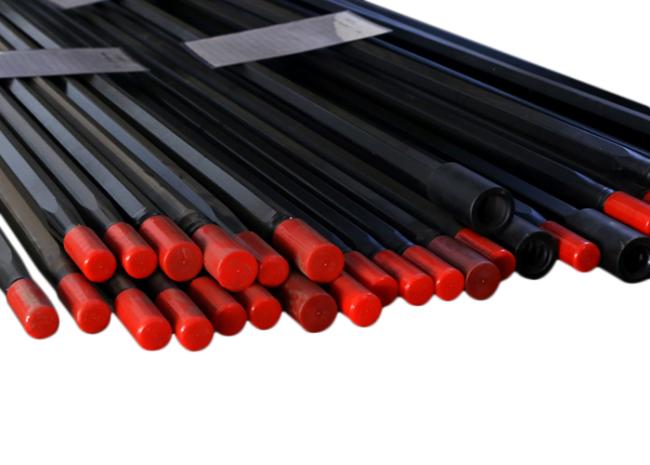

Drifter rod, other names are tunneling steels, tunneling rod, drifting drill rod, has round and hexagon shapes available, most of drifting drill steel with drill steel hexagon is for tunneling and drifting drilling application. Hexagon rods of rock drilling tools are more rigid, heavier and transfer energy more efficiently, while increasing flushing.
• R28 thread system
• Suitable for small hole range
Color: Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Type: R28 Drifter Rod R32-Hex 28-R28 Flushing Hole 8.8 mm
Applications
• Underground Mining
• Tunneling
Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
Type: Hex. Drifter Rod, Extension Rod, Speed Rod, MF-Rod
Color: Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Specification
| Part Number |
Product Code and Brief Description |
Length (mm) |
Length (ft/inch) |
Diameter (mm) |
Diameter (inch) |
Weight (kg) |
| 4148300464 |
DRH28-R28R32-2400, R28 Drifter Rod, R32-Hex 28-R28, Flushing Hole 8.8 mm |
2400 | 7 7/8 | 28 | 1 1/9 | 12.2 |
| 4148300465 |
DRH28-R28R32-2750, R28 Drifter Rod, R32-Hex 28-R28, Flushing Hole 8.8 mm |
2750 | 9 | 28 | 1 1/9 | 14.4 |
| 4148300466 |
DRH28-1R28R32-3700, R28 Drifter Rod, R32-Hex 28-R28, Flushing Hole 8.8 mm |
3700 | 12 1/7 | 28 | 1 1/9 | 18.9 |
| 4148300467 |
DRH28-R28R32-4000, R28 Drifter Rod, R32-Hex 28-R28, Flushing Hole 8.8 mm |
4000 | 13 1/8 | 28 | 1 1/9 | 20.4 |
| 4148300468 |
DRH28-R28R32-4310, R28 Drifter Rod, R32-Hex 28-R28, Flushing Hole 8.8 mm |
4310 | 14 1/7 | 28 | 1 1/9 | 22.0 |
| 4148300469 |
DRH28-R28R32-4920, R28 Drifter Rod, R32-Hex 28-R28, Flushing Hole 8.8 mm |
4920 | 16 1/7 | 28 | 1 1/9 | 25.3 |
