T51 MF 3660mm Speed Extensin Threaded Drifter Rock Drill Rod Male Female
T51 MF Rod 3.66 Meter Male/ Female
Drill rod using T45 T51 thread system. With wrench flats to aid in coupling/decoupling of rods for extension drilling. Used in benching and long hole drilling.
Drilling precision can be further improved by using this as the first rod in a normal drill string. Furthermore, since this is a speed rod design it will produce straighter holes and at least 10% higher penetration rate in good rock conditions compared to rod and coupling sleeve combination system
Basic Information
| Product Name | Thead Drill Rod |
| Thread | R25 R28 R32 R38 T38 T45 T51 |
| Diameter | 22mm, 25mm, 32mm, 35mm, 39mm, 46mm, 52mm |
| Length | 400mm - 5530mm |
| Drill Rod Type | Drifter Rod, Extension Rod, MF-Rod, Speed Rod, Hex Rod, |
| Material |
High strength alloy steel bar |
| Color | Black or based on customer requirements. |
Application
• Underground mining
• Tunneling,quarrying
• Granite, Basalt, Limestone rock etc.
Competitive Advantage
• High grade raw material
• Manufactured from high grade steel and processed using state-of-the-art CNC machinery
and heat treatment
• High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
Specification
|
T45 Extension Rod (T45-Round 46-T45) |
|||||
| Length (mm) | Dia.(mm) | Part Number | |||
| 1 | 1830 | 46 | 4148300867 | ||
| 2 | 2435 | 46 | 4148300868 | ||
| 3 | 3050 | 46 | 4148300869 | ||
| 4 | 3660 | 46 | 4148300870 | ||
| 5 | 4270 | 46 | 4148300871 | ||
| 6 | 5530 | 46 | 4148300872 | ||
| 7 | 6095 | 46 | 4148300873 | ||
| T45 Extension Rod (T45-Round 46-T45) | |||||
| Length (mm) | Dia.(mm) | Part Number | |||
| 1 | 1525 | 46 | 4148300874 | ||
| 2 | 1830 | 46 | 4148300875 | ||
| 3 | 3050 | 46 | 4148300876 | ||
| 4 | 3660 | 46 | 4148300877 | ||
| 5 | 4270 | 46 | 4148300878 | ||
| 6 | 5530 | 46 | 4148300879 | ||
| 7 | 6095 | 46 | 4148300880 | ||
| T51 Extension Rod (T51-Round 52-T51) | |||||
| Length (mm) | Dia.(mm) | Part Number | |||
| 1 | 3050 | 52 | 4148300947 | ||
| 2 | 3660 | 52 | 4148300948 | ||
| 3 | 4270 | 52 | 4148300949 | ||
| 4 | 4880 | 52 | 4148300950 | ||
| 5 | 5530 | 52 | 4148300951 | ||
| 6 | 6095 | 52 | 4148300952 | ||
| T51 MF-Rod (T51-Round 52-T51) | |||||
| Length (mm) | Dia.(mm) | Part Number | |||
| 1 | 1525 | 52 | 4148300953 | ||
| 2 | 1830 | 52 | 4148300954 | ||
| 3 | 3050 | 52 | 4148300955 | ||
| 4 | 3660 | 52 | 4148300956 | ||
| 5 | 4270 | 52 | 4148300957 | ||
| 6 | 4880 | 52 | 4148300958 | ||
| 7 | 5530 | 52 | 4148300959 | ||
| 8 | 6095 | 52 | 4148300960 | ||
We can design and manufacture the personalized products to meet your specical apllication

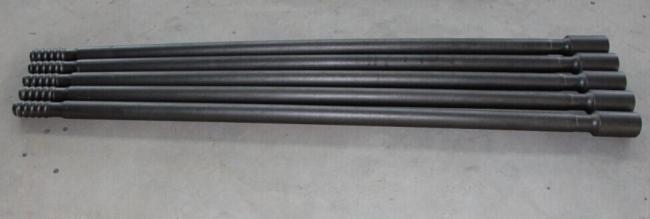

Pictures
