H22 Integral Rock Drill Rods 400mm 800mm 1600m 2000mm with Shank 22 X108mm
Integral Equipment - Integral Drill Rod 400mm 800mm 1600m 2000
H22-Chisel Bit Integral Drill Steel
Shank 22 x108mm
The H22 Integral drills steels, H22 x 108 mm shank, are the most common type within the Dimensional Stone Quarrying Industry. The product range includes a Ø26 - 40 mm bit diameters and lengths from 0.4 – 7.2 meters.
| Length | Bit Diameter | Weight | Part Number | |
| mm | foot | mm | kg | |
| 800 | 2 5/8 | 34 | 3 | 4148300035 |
| 1600 | 5 1/4 | 33 | 5.2 | 4148300036 |
| 2400 | 7 7/8 | 32 | 8 | 4148300037 |
| 3200 | 10 1/2 | 31 | 10.2 | 4148300038 |
| 4000 | 13 1/8 | 30 | 12.9 | 4148300039 |
| 4800 | 15 3/4 | 29 | 15.1 | 4148300040 |
| 5600 | 18 3/8 | 28 | 17.6 | 4148300041 |
| 6400 | 21 | 27 | 20.1 | 4148300042 |
| 7200 | 23 5/8 | 26 | 22.5 | 4148300043 |
| 800 | 2 5/8 | 40 | 3 | 4148300044 |
| 1600 | 5 1/4 | 39 | 5.2 | 4148300045 |
| 2400 | 7 7/8 | 38 | 8 | 4148300046 |
| 3200 | 10 1/2 | 37 | 10.2 | 4148300047 |
| 4000 | 13 1/8 | 36 | 12.9 | 4148300048 |
| 4800 | 15 3/4 | 35 | 15.1 | 4148300049 |
| 5600 | 18 3/8 | 34 | 17.6 | 4148300050 |
| 6400 | 21 | 33 | 20.1 | 4148300051 |
| 7200 | 23 5/8 | 32 | 22.5 | 4148300052 |
| 8000 | 26 1/4 | 31 | 25 | 4148300053 |
| 400 | 1 1/3 | 34 | 1.7 | 4148300054 |
| 800 | 2 5/8 | 33 | 3 | 4148300055 |
| 1200 | 4 | 32 | 4.1 | 4148300056 |
| 1600 | 5 1/4 | 31 | 5.2 | 4148300057 |
| 2000 | 6 5/9 | 30 | 6.7 | 4148300058 |
| 600 | 2 | 41 | 2.4 | 4148300059 |
| 1200 | 4 | 40 | 4.3 | 4148300060 |
| 1800 | 6 | 39 | 6.2 | 4148300061 |
| 2400 | 7 7/8 | 38 | 8 | 4148300062 |
| 400 | 1 1/3 | 41 | 1.7 | 4148300063 |
| 800 | 2 5/8 | 29 | 3 | 4148300064 |
| 800 | 2 5/8 | 38 | 3.1 | 4148300065 |
| 1200 | 4 | 39 | 4.3 | 4148300066 |
| 1600 | 5 1/4 | 36 | 5.2 | 4148300067 |
| 1800 | 6 | 36 | 6 | 4148300068 |
| 2000 | 6 5/9 | 32 | 6.7 | 4148300069 |
| 2400 | 7 7/8 | 27 | 8 | 4148300070 |
| 3200 | 10 1/2 | 27 | 10.2 | 4148300071 |
| 3200 | 10 1/2 | 32 | 10.3 | 4148300072 |
| 6400 | 21 | 30 | 20.1 | 4148300073 |
| 8000 | 26 1/4 | 26 | 25 | 4148300074 |

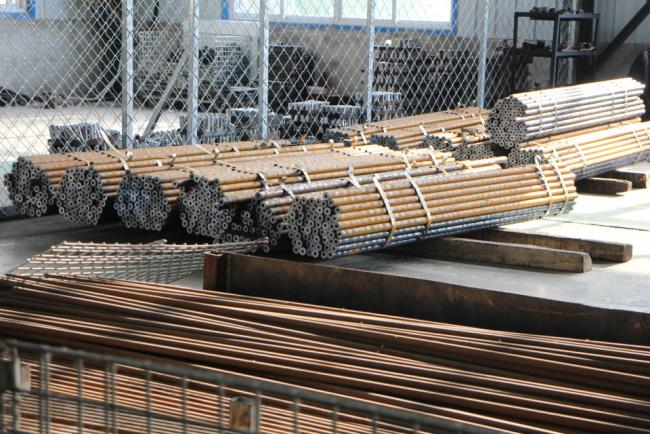

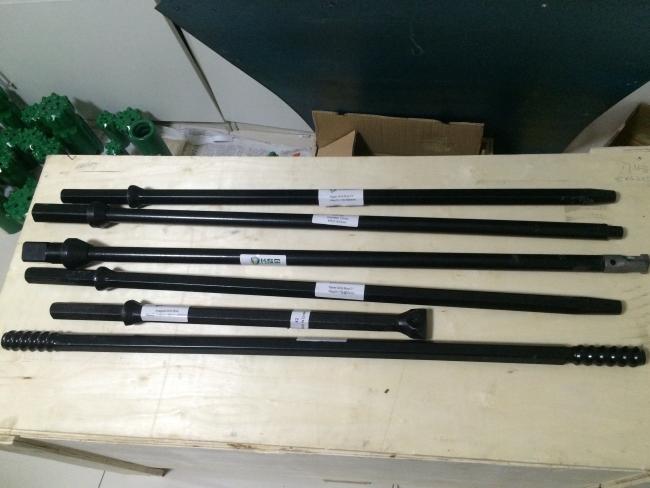

Pictures
