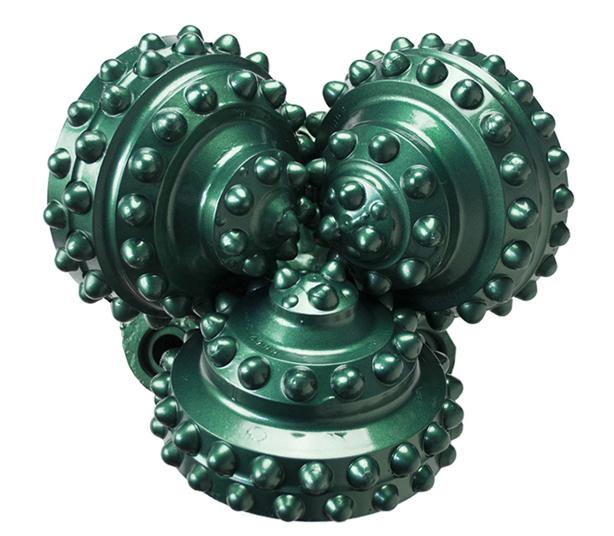

12 1/4'' Carbide Tricone Drill Bit Water Well Drilling High Wear Resistance
12 1/4'' Carbide Tricone Drill Bit Water Well Drilling High Wear Resistance
Product description
- The strength and wear resistance of inserts are improve by using carbide inserts with high strength and high wear resistance.
- Surface of the high precision bearing heat treated by using advanced heat treatment process to improve the load capacity and service life of the bearing.
- The service life of the bearing is further extended by adopting harder and more wear resistant material for thrust bearing.

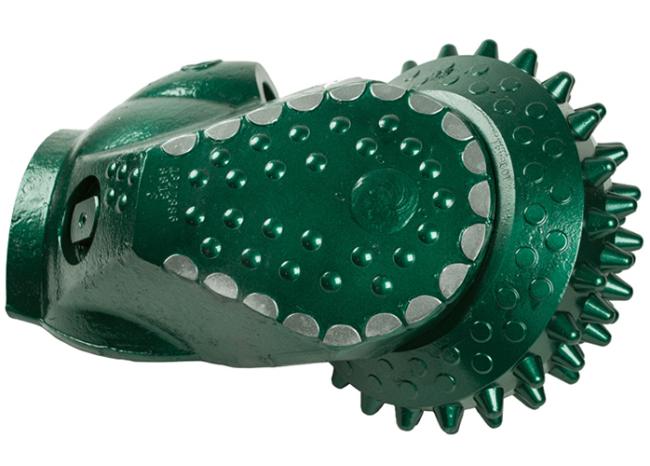

- This series oil well rock bit use sealed roller bearing structure. With rollers arranged in grooves recessed in the cone body, the size of the bearing journal is increased.
- Thrust bearing surfaces are hard faced and treated with friction reducing technology.
- Rotary drill bits use journal bearing. Hard faced head bearing surface. Cone bearing inlaid with friction reducing alloy and then silver-plated. The load capacity and seizure resistance of the bearing is greatly improve.
|
Size
|
Type(IADC)
|
API Thread size(Inch)
|
Net weihgt(kg)
|
|
|---|---|---|---|---|
|
In
|
mm
|
|||
|
5 7/8
|
149.2
|
517 257 537 547 617
|
3 1/2
|
18
|
|
6
|
152.4
|
517 257 537 547 617
|
3 1/2
|
19.5
|
|
7 7/8
|
200.0
|
517 257 537 547 617 627 637
|
4 1/2 |
29.5
|
|
8 1/2
|
215.9
|
117 127 437 517 527 537 547 617
|
4 1/2
|
38
|
|
9 1/2
|
241.3
|
117 127 437 447 517 527 537 547 617
|
6 5/8
|
57.5
|
|
121/4
|
311.1
|
117 127 437 447 517 527 537 547 617
|
6 5/8
|
97
|
|
13 1/8
|
333.4
|
117 127 437 447 517 527 537 547 617
|
6 5/8
|
120
|
|
14 3/4
|
374.7
|
117 127 437 447 517 527 537 547 617
|
7 5/8
|
160
|
|
16
|
406.4
|
117 127 437 447 517 527 537 547 617
|
7 5/8
|
205
|
|
17 1/2
|
444.5
|
117 127 437 447 517 527 537 547 617
|
7 5/8
|
255
|
| IADC | Parameters | Rock formation | |
| Wob(kn/mm) | Rpm(r/min) | ||
| 116 117 | 0.35-0.8 | 150-80 |
Low compressive strength extremely soft formation of high drillability, such as clay, mudstone, chalk |
| 126 127 | 0.35-0.9 | 150-70 |
Low compressive strength soft formation of high drillability, such as Mudstone, gypsum, salt rock, soft shale, soft limestone |
| 136 137 | 0.35-1.0 | 120-50 |
Low compressive strength soft to medium soft formation of high drillability such as anhydrite, soft shale, medium soft limestone,medium soft sandstone soft formations interlayer |
| 216 217 | 0.4-1.0 | 100-50 |
High compressive strength medium soft formations , such as soft shale, anhydrite, soft limestone, medium soft sandstone and has a interlayer |
| 246 247 | 0.4-1.0 | 80-50 |
High compressive strength medium hard formations such as abrasive shale, limestone, sandstone, dolomite and anhydrite, marble |
| 417 437 447 | 0.35-0.9 | 150-70 |
Low compressive strength and high drill ability of extremely soft stratum, such as clay, shale, gypsum and halite, soft shale, soft limestone |
| 517 527 | 0.35-1.0 | 140-50 |
Low compressive soft formations, such as mudstone, gypsum, salt rock, soft shale, soft limestone |
| 537 547 | 0.45-1.0 | 120-50 |
Low compressive strength of soft to medium formation, softshale, medium soft limestone, medium soft sandstone, and there are hard abrasive sandwich middle stratum |
| 617 627 | 0.45-1.1 | 90-50 |
High compressive strength of medium hard formations, such as sandstone, limestone, dolomite, hard shale |
| 637 | 0.5-1.2 | 80-40 |
High compressive strength of hard formations, such as sandstone, limestone, dolomite and anhydrite, marble |
