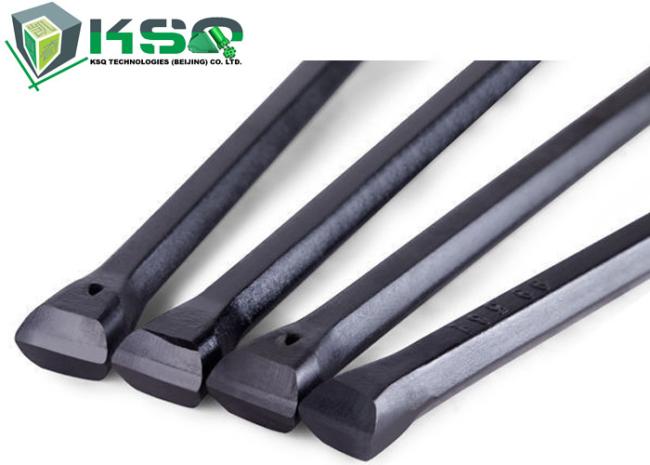

Steel Integral Drill Rod Shank H19 / 22x 108mm For Small Hole Drilling
The H19 / H22 Integral drills steels, H19 / H22 x 108 mm shank, are the most common type within the Dimensional Stone Quarrying Industry. The product range includes a Ø26 - 40 mm bit diameters and lengths from 0.4 – 7.2 meters.
• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
Color: Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Specification
| Length | Bit Diameter | Weight | Part Number | |
| mm | foot | mm | kg | |
| 400 | 1 1/3 | 29 | 1.3 | 4148300000 |
| 500 | 1 2/3 | 29 | 1.5 | 4148300001 |
| 800 | 2 5/8 | 28 | 2.2 | 4148300002 |
| 1000 | 3 2/7 | 28 | 2.6 | 4148300003 |
| 1200 | 4 | 27 | 3 | 4148300004 |
| 1600 | 5 1/4 | 27 | 3.9 | 4148300005 |
| 2400 | 7 7/8 | 26 | 5.7 | 4148300006 |
| 3200 | 10 1/2 | 25 | 7.5 | 4148300007 |
| 4000 | 13 1/8 | 24 | 9.2 | 4148300008 |
| 400 | 1 1/3 | 24 | 1.3 | 4148300009 |
| 800 | 2 5/8 | 23 | 2.2 | 4148300010 |
| 600 | 2 | 27 | 1.7 | 4148300011 |
| 1200 | 4 | 26 | 3 | 4148300012 |
| 2000 | 6 5/9 | 24 | 4.8 | 4148300013 |
| 2400 | 7 7/8 | 24 | 5.7 | 4148300014 |
| 2700 | 8 6/7 | 24 | 6.3 | 4148300015 |
| 400 | 1 1/3 | 35 | 1.3 | 4148300016 |
| 800 | 2 5/8 | 34 | 2.2 | 4148300017 |
H19-Chisel Bit Integral Drill Steel - Shank 22 x108mm
| Length | Bit Diameter | Weight | Part Number | |
| mm | foot | mm | kg | |
| 400 | 1 1/3 | 24 | 1.5 | 4148300018 |
| 400 | 1 1/3 | 29 | 1.5 | 4148300019 |
| 600 | 2 | 27 | 1.7 | 4148300020 |
| 800 | 2 5/8 | 23 | 2.3 | 4148300021 |
| 800 | 2 5/8 | 28 | 2.3 | 4148300022 |
| 1200 | 4 | 23 | 3.2 | 4148300023 |
| 1600 | 5 1/4 | 27 | 4 | 4148300024 |
| 2000 | 6 5/9 | 28 | 5 | 4148300025 |
| 2400 | 7 7/8 | 26 | 5.8 | 4148300026 |
| 3200 | 10 1/2 | 25 | 7.5 | 4148300027 |
