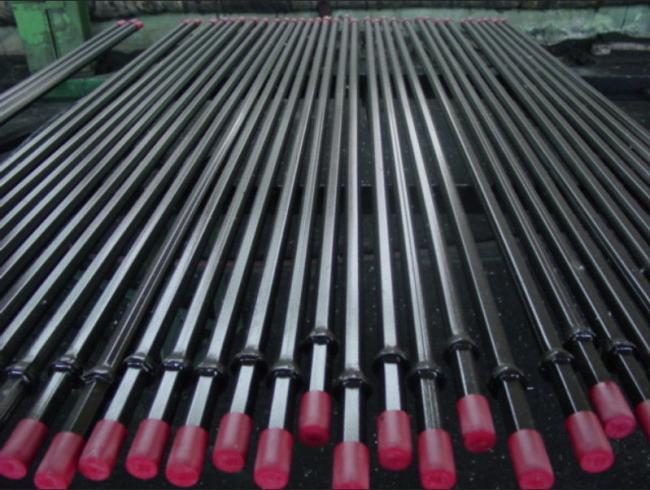

7° Hex Tapered Rod Wear Resistance For Mining Industry , Shank 22x108mm / 25x159mm
Description
Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.
• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
• Widely used in Underground Mining Industry
Applications
• Underground Mining
• Tunneling
Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
specification
| Part Number | Product Code and Brief Description |
Length (mm) |
Length (ft/inch) | Weight (kg) |
| 4148300179 |
H22-7D-600, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm |
600 | 2 | 1.93 |
| 4148300180 |
H22-7D-800, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm |
800 | 2 5/8 | 2.54 |
| 4148300181 |
H22-7D-1000, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm |
1000 | 3 2/7 | 3.15 |
| 4148300182 |
H22-7D-1200, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm |
1200 | 4 | 3.76 |
| 4148300183 |
H22-7D-1500, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm |
1500 | 5 | 4.68 |
| 4148300184 |
H22-7D-1600, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm |
1600 | 5 1/4 | 4.98 |
| 4148300185 |
H22-7D-1800, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm |
1800 | 6 | 5.59 |
| 4148300186 |
H22-7D-2000, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm |
2000 | 6 5/9 | 6.2 |
| 4148300187 |
H22-7D-2200, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm |
2200 | 7 2/9 | 6.81 |
| 4148300188 |
H22-7D-2300, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm |
2300 | 7 5/9 | 7.12 |
| 4148300189 |
H22-7D-2400, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm |
2400 | 7 7/8 | 7.42 |
| 4148300190 |
H22-7D-2500, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm |
2500 | 8 1/5 | 7.73 |
| 4148300191 |
H22-7D-2600, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm |
2600 | 8 1/2 | 8.03 |
| 4148300192 |
H22-7D-3000, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm |
3000 | 9 5/6 | 9.25 |
| 4148300193 |
H22-7D-3500, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm |
3500 | 11 1/2 | 10.78 |
| 4148300194 |
H22-7D-4000, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm |
4000 | 13 1/8 | 12.3 |
| 4148300195 |
H22-7D-4500, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm |
4500 | 14 3/4 | 13.83 |
| 4148300196 |
H22-7D-5000, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm |
5000 | 16 2/5 | 15.35 |
| 4148300197 |
H22-7D-5500, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm |
5500 | 18 | 16.88 |
| 4148300198 |
H22-7D-6000, 7° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm |
6000 | 19 2/3 | 18.3 |
Delivery time: around 15-20days
Package: Carton or Wooden Box/Based on customers requirements
