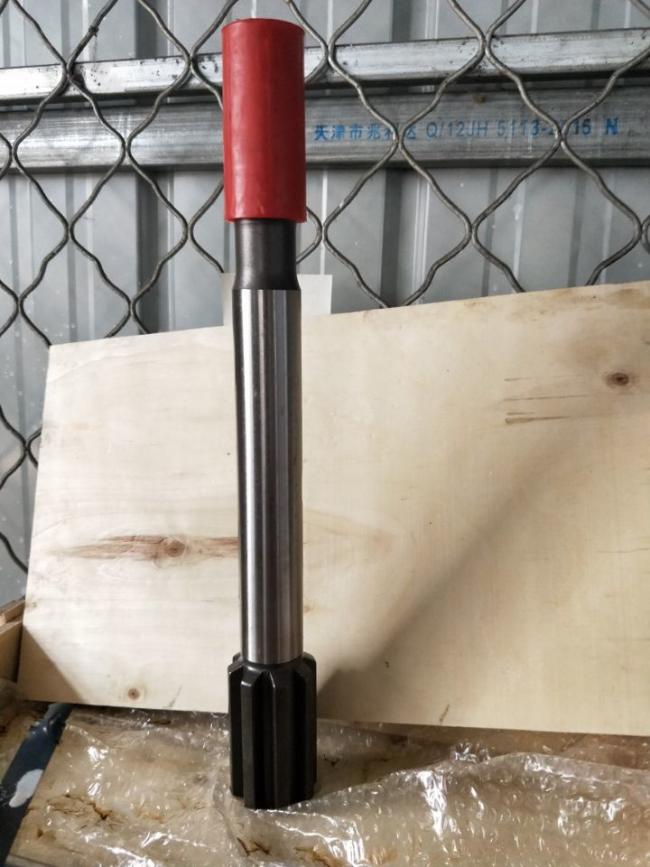

Length 435 - 640mm Drill Shank Adapter Atlas Copco Cop1440 / 1838 For Bolting
Atlas Copco 1838 Drill Shank 435 - 640mm Length , Samll Hole Rock Drilling Tool
Description

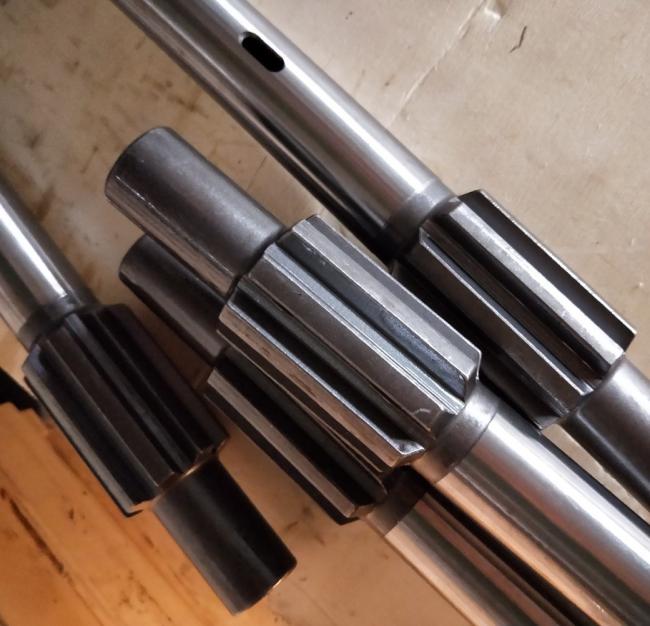

In top hammer drilling, the shank adapter transmits impact energy from the piston to the rod(s) or tube(s). Additionally, rotation torque is delivered via the shank adapter.
• Used in top hammer drilling systems
Shank adapter equivalent to:
- Atlas Copco shank adapter
- Boart shank adapter
- Furukawa shank adapter
- Gardner-Denver shank adapter
- Ingersoll-Rand shank adapter
- Montabert shank adapter
- SIG shank adapters
- shank adapter
shank adapter | adaptador de la espiga | adaptador de cabo | Adaptateur à tige | Schaft -Adapter | sap adaptörü | per gambo | sovituskantaan | nackadapter | nakkeadapteren | adapter cholewka | adapter shank
Applications
• Underground mining
• Tunneling
• Quarry
Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
Packaging & Shipping
Wooden boxes or Carton boxes
Specification
| Atlas Copco COP1440, COP1550, COP1838 | |||
| Thread | Length(mm) | Dia.(mm) | Weight(kg) |
| R32 | 525 | 52 | 5.7 |
| T38 | 525 | 52 | 5.9 |
| T45 | 525 | 52 | 6.1 |
| T51 | 525 | 52 | 6.5 |
| / Tamrock HLX5, HFX | |||
| Thread | Length(mm) | Dia.(mm) | Weight(kg) |
| R38 | 500 | 45 | 5.2 |
| T38 | 500 | 45 | 5.1 |
| T45 | 500 | 45 | 5.5 |
| T38 | 575 | 45 | 5.7 |
| T45 | 575 | 45 | 5.9 |
| / Tamrock HL700, HL800 | |||
| Thread | Length(mm) | Dia.(mm) | Weight(kg) |
| T45 | 600 | 45 | 7.2 |
| T38 | 600 | 52 | 8.0 |
| T45 | 600 | 52 | 8.5 |
| T51 | 600 | 50 | 8.5 |
Our Services
KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:
- Hazardous environment
- Acts, regulations, and other government guidelines that has to be followed
- Significant differences in the way people work, mostly due o physical constraints
- Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.
Shank adapter order information:
Rock Drill Type + Thread + Diameter + Length
Example:
(1) Rock drill Type: Atlas Copco COP1440, COP1550, COP1838
(2) Thread: R32, T38, T45, T51
(3) Diameter: 52mm
(4) Length: 525mm
If you have further questions, please do not hesitate to contact us at any time.
