Speed Rock Drilling Rod Thread T38 MF Rod Length 10 FT for Drifting and Tunneling
Speed Rock Drilling Rod Thread T38 MF Rod Length 10 FT for Drifting and Tunneling
Basic Information
| Product Name | Thread Drill Rod |
| Thread | T38 |
| Diameter | 39mm |
| Length | 915mm- 6095mm ( 3 ft to 20 ft) |
| Drill Rod Type | MF-Rod |
| Order Information | Thread + Length + Diameter |
| MOQ | 10 Pieces |
| Material | High strength alloy steel bar |
| Color | Black or based on customer requirements. |
Drill rod using thread system.With wrench flats to aid in coupling/decoupling of rods for extension drilling.
For speed rod, it will produce straighter holes and at least 10% higher penetration rate in good rock conditions compared to rod and coupling sleeve combination system.
Applications of Rock Drill Rod
• Underground mining and surface mining
• Drifting, bench and production drilling
• Granite, basalt, limestone rock etc.
Competitive Advantage
• High grade raw material
• Manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
T38 Drill Rod Specification
| Drill rod | Length | Diameter | Weight | Part Number | |||
| mm | foot | mm | inch | kg | |||
|
T38 Extension rod, T38-Round39-T38 |
1220 | 4 | 39 | 1 1/2 | 10.2 | 4148300770 | |
| Flushing hole 14.5mm | 1525 | 5 | 39 | 1 1/2 | 12.8 | 4148300771 | |
| Wrench flat 32mm | 1830 | 6 | 39 | 1 1/2 | 15.3 | 4148300772 | |
| 2435 | 8 | 39 | 1 1/2 | 20.4 | 4148300773 | ||
| 3050 | 10 | 39 | 1 1/2 | 25.5 | 4148300774 | ||
| 3660 | 12 | 39 | 1 1/2 | 30.9 | 4148300775 | ||
| 3965 | 13 | 39 | 1 1/2 | 33.2 | 4148300776 | ||
| 4270 | 14 | 39 | 1 1/2 | 35.7 | 4148300777 | ||
| 4880 | 16 | 39 | 1 1/2 | 41.0 | 4148300778 | ||
| 5530 | 18 1/7 | 39 | 1 1/2 | 46.3 | 4148300779 | ||
| 6095 | 20 | 39 | 1 1/2 | 50.9 | 4148300780 | ||
| T38 MF-rod, T38-Round39-T38 | 915 | 3 | 39 | 1 1/2 | 10.7 | 4148300781 | |
| Flushing hole 14.5mm | 1220 | 4 | 39 | 1 1/2 | 13.3 | 4148300782 | |
| 1525 | 5 | 39 | 1 1/2 | 15.8 | 4148300783 | ||
| 1830 | 6 | 39 | 1 1/2 | 18.3 | 4148300784 | ||
| 3050 | 10 | 39 | 1 1/2 | 28.5 | 4148300785 | ||
| 3660 | 12 | 39 | 1 1/2 | 33.6 | 4148300786 | ||
| 4270 | 14 | 39 | 1 1/2 | 38.7 | 4148300787 | ||
| 4880 | 16 | 39 | 1 1/2 | 43.7 | 4148300788 | ||
| 5530 | 18 1/7 | 39 | 1 1/2 | 49.2 | 4148300789 | ||
| 6095 | 20 | 39 | 1 1/2 | 53.9 | 4148300790 | ||
|
T38 Hex extension rod, T38-Hex32-R38 |
1220 | 4 | 32 | 1 1/4 | 8.6 | 4148300791 | |
| Flushing hole 9.6mm | 1830 | 6 | 32 | 1 1/4 | 12.6 | 4148300792 | |
| 2435 | 8 | 32 | 1 1/4 | 16.6 | 4148300793 | ||
| 3050 | 10 | 32 | 1 1/4 | 20.8 | 4148300794 | ||
| 3660 | 12 | 32 | 1 1/4 | 24.9 | 4148300795 | ||
|
T38 Guide speedrod, T38-Round46-T38 |
1830 | 6 | 46 | 1 4/5 | 23.5 | 4148300796 | |
| Flushing hole 17mm | 3050 | 10 | 46 | 1 4/5 | 37.2 | 4148300797 | |
| 3660 | 12 | 46 | 1 4/5 | 44.0 | 4148300798 | ||
| 4270 | 14 | 46 | 1 4/5 | 50.9 | 4148300799 | ||
| 4880 | 16 | 46 | 1 4/5 | 57.7 | 4148300800 | ||
| 5530 | 18 1/7 | 46 | 1 4/5 | 65.0 | 4148300801 | ||
| 6095 | 20 | 46 | 1 4/5 | 71.3 | 4148300802 | ||
We can design and manufacture the personalized products to meet your specical apllication.
Delivery time and Package
Delivery time: around 15-20days

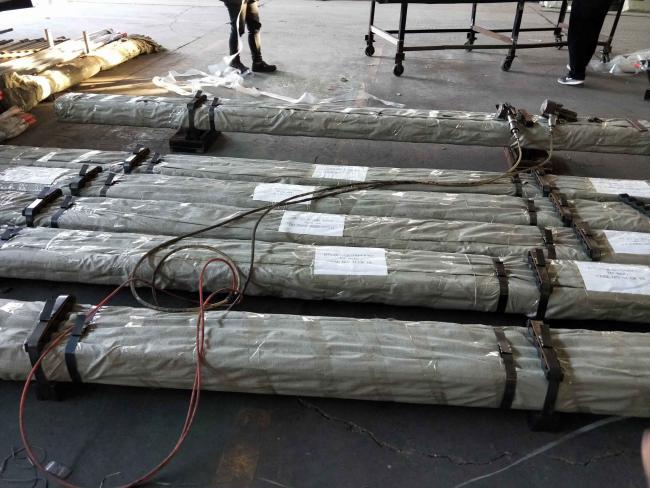

Package: steel bundle / Based on customers requirements
