T38 Hex 32mm R32 Thread Drill Rod R38 Hex 35mm R32 Drifter Rod R32 R38 T38 Hex Rod
T
T38 Hex 32mm R32 Thread Drill Rod R38 Hex 35mm R32 Drifter Rod R32 R38 T38 Hex Rod
T38-Hex32-R32-3700mm Drifter Rod: Drill rod, thread: T38/R32, diameter: 1 1/4" (32mm) Hexagonal (Hex32), Length: 12 feet (3700mm)
T38-Hex32-R32-4310mm Drifter Rod: Drill rod, thread: T38/R32, diameter: 1 1/4" (32mm) Hexagonal (Hex32), Length: 14 feet (4310mm)
T38-Hex32-R32-4920mm Drifter Rod: Drill rod, thread: T38/R32, diameter: 1 1/4" (32mm) Hexagonal, Hex32, Length: 16 feet (4920mm)

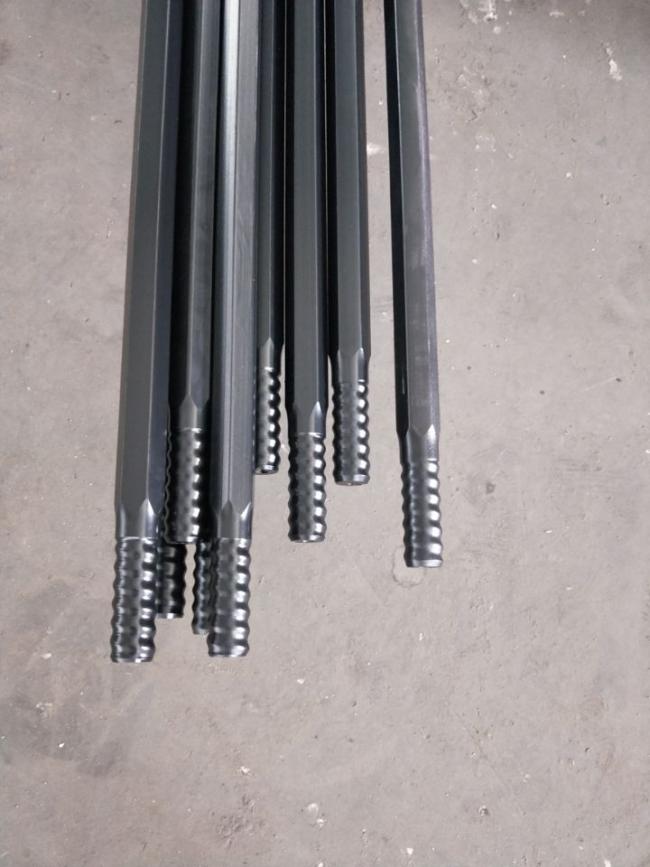

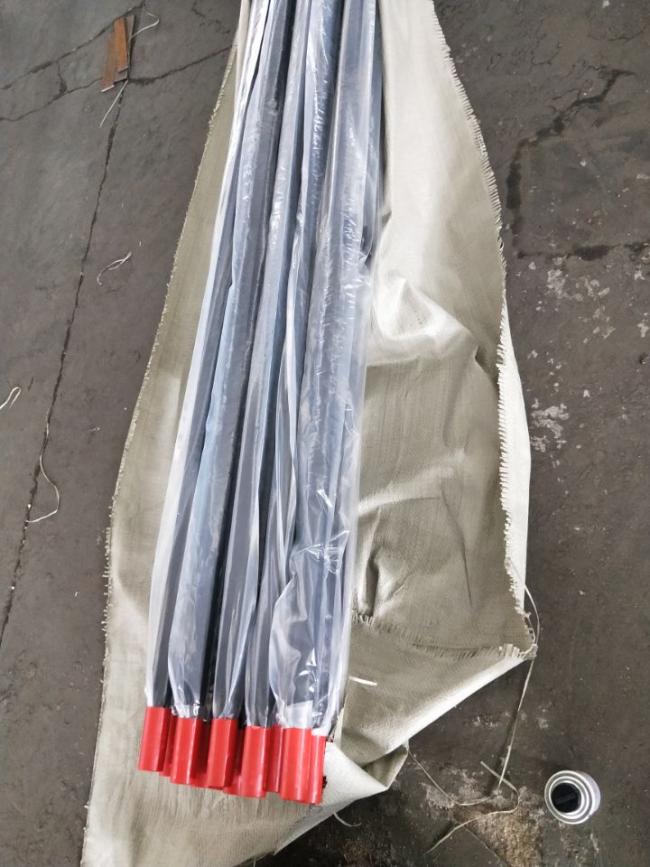

T38- Hex32-R32 Photos:
R38-Hex32-R32, R38-Hex 35-R32, Speed Rod T38-Hex 35-R32 Drifter Rod
T38-Hex 32-R32, T38-Hex 35-R32, Speed Rod T38-Hex 35-R32 Drifter Rod
R38 Hex Extension Rod
T38 Hex Extension Rod

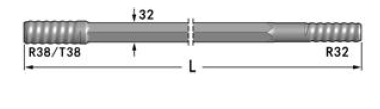

1. Drifter Rod R/T38-Hex 32-R32 Specification
| Model |
Length (mm) |
Diameter (mm) |
Part Number | Product Code | ||
|
Drifter Rod R/T38-Hex 32-R32 Flushing hole 9.6mm |
2400 | 32 | 4148300560 | DRH32-R32R/T38-2400 | ||
| 3090 | 32 | 4148300561 | DRH32-R32R/T38-3090 | |||
| 3400 | 32 | 4148300562 | DRH32-R32R/T38-3400 | |||
| 4000 | 32 | 4148300563 | DRH32-R32R/T38-4000 | |||
| 4310 | 32 | 4148300564 | DRH32-R32R/T38-4310 | |||
| 4920 | 32 | 4148300565 | DRH32-R32R/T38-4920 | |||
| 5530 | 32 | 4148300566 | DRH32-R32R/T38-5530 | |||
2. Drifter Rod R/T38-Hex 35-R32 Specification
| Model |
Length |
Diameter (mm) |
Part Number | Product Code |
|
R/T38-Hex 35-R32 |
3090 | 35 | 4148300567 | DRH35-R32R/T38-3090 |
| 3700 | 35 | 4148300568 | DRH35-R32R/138-3700 | |
| 4000 | 35 | 4148300569 | DRH35-R32R/T38-4000 | |
| 4310 | 35 | 4148300570 | DRH35-R32R/T38-4310 | |
| 4920 | 35 | 4148300571 | DRH35-R32R/T38-4920 | |
| 5530 | 35 | 4148300572 | DRH35-R32R/T38-5530 | |
| 6100 | 35 | 4148300573 | DRH35-R32R/T38-6100 |
3. Speed Rod T38-Hex 35-R32 Specification
| Model | Length (mm) |
Diameter (mm) |
Part Number | Product Code |
|
T38-Hex 35-R32 |
3700 | 35 | 4148300574 | SRH35-R32T38-3700 |
| 4310 | 35 | 4148300575 | SRH35-R32T38-4310 | |
| 4920 | 35 | 4148300576 | SRH35-R32T38-4920 | |
| 5530 | 35 | 4148300577 | SRH35-R32T38-5530 | |
| 6400 | 35 | 4148300578 | SRH35-R32T38-6400 |
4. R38 Hex Extension Rod
R38-Hex 32-R38
Flushing Hole 9.6 mm
| Model |
Length (mm) |
Diameter (mm) |
Part Number | Product Code | ||
|
R38 Hex Extension Rod
R38-Hex 32-R38
Flushing Hole 9.6 mm
|
1220 | 32 | 4148300698 | ERH32-R38-1220 | ||
| 1830 | 32 | 4148300699 | ERH32-R38-1830 | |||
| 2435 | 32 | 4148300700 | ERH32-R38-2435 | |||
| 3050 | 32 | 4148300701 | ERH32-R38-3050 | |||
| 3660 | 32 | 4148300702 | ERH32-R38-3660 | |||
5. T38 Hex Extension Rod
T38-Hex 32-T38
Flushing Hole 9.6mm
| Model |
Length (mm) |
Diameter (mm) |
Part Number | Product Code | ||
|
T38 Hex Extension Rod
T38-Hex 32-T38
Flushing Hole 9.6 mm
|
1220 | 32 | 4148300791 | ERH32-T38-1220 | ||
| 1830 | 32 | 4148300792 | ERH32-T38-1830 | |||
| 2435 | 32 | 4148300793 | ERH32-T38-2435 | |||
| 3050 | 32 | 4148300794 | ERH32-T38-3050 | |||
| 3660 | 32 | 4148300795 | ERH32-T38-3660 | |||
Application:
