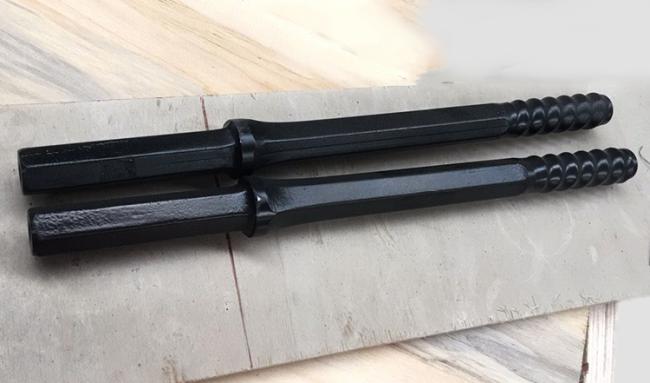

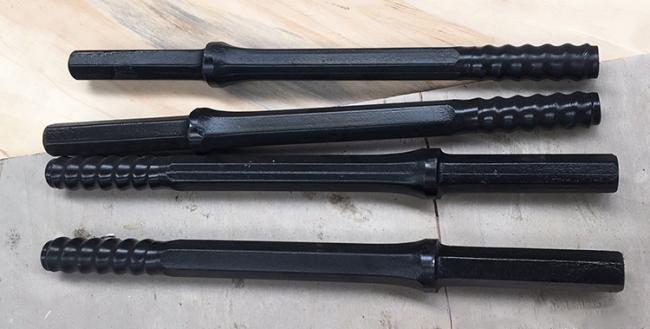

R25 Rock Drilling Tools High Strength Alloy Steel R25 Shank End Rod
R25 Rock Drilling Tools High Strength Alloy Steel R25 Shank End Rod
Product Description :
| SHANK END ROD | Length, mm | Diameter, mm | Weight approx., kg |
|
Shank Adapter / Rod 22mm x 108mm |
610 | 22 | 2.6 |
| 760 | 22 | 2.9 | |
| 1000 | 22 | 3.7 | |
| 1200 | 22 | 4.4 | |
| 1830 | 22 | 6.3 | |
| 2435 | 22 | 8.1 | |
| 3200 | 22 | 10.6 | |
| 3600 | 22 | 12.0 | |
|
Shank Adapter / Rod 25mm x 159mm |
2700 | 25 | 11.3 |
| 3200 | 25 | 13.7 |
Drill rod using R25 thread system. Suited for short hole drilling operations. For drills capable of receiving Hex 22 mm x 108 mm and Hex 25mm x 159mm shank.
• R25 thread system
• Suitable for small hole range
Features:
1. High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance;
2. Manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment.
Application:
1. Underground mining and surface mining
2. Drifting, bench and production drilling
3. Granite, basalt, limestone rock etc.
