Drifting Tunneling Rock Drilling Tools Round Hex Extension Rod R28 R32 R38
Drifting and Tunneling Tools
Drill Rod (Drifter Rod, Extension Rod, Speed Rod)
Product Description:
1.
| Drill Rod | Length, mm | Diameter, mm | Weight approx., kg |
|
Drifter Rod, R32-Hex28-R28 Flushing Hole 8.8 mm |
2400 | 28 | 12.2 |
| 2750 | 28 | 14.4 | |
| 3700 | 28 | 18.9 | |
| 4000 | 28 | 20.4 | |
| 4310 | 28 | 22.0 | |
| 4920 | 28 | 25.3 |
2.
| Drill Rod | Length, mm | Diameter, mm | Weight approx., kg |
|

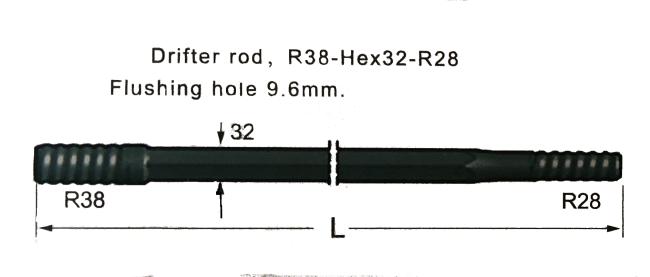

Drifter Rod, R38-Hex32-R28 Flushing Hole 9.6 mm |
2900 | 32 | 18.8 |
| 3090 | 32 | 20.0 | |
| 3700 | 32 | 24.0 | |
| 4310 | 32 | 27.9 |
3.
| Drill Rod | Length, mm | Diameter, mm | Weight approx., kg |
|

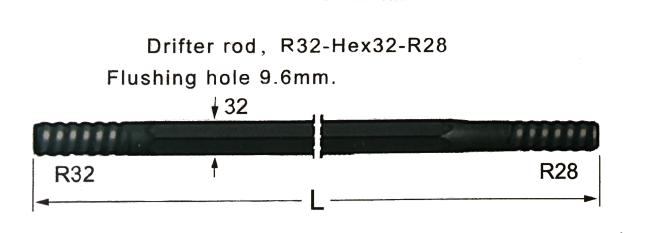

Drifter Rod, R32-Hex32-R28 Flushing Hole 9.6 mm |
3090 | 32 | 20.0 |
| 3700 | 32 | 23.5 |
4.
With slimmed shank end of female shank
| Drill Rod | Length, mm | Diameter, mm | Weight approx., kg |
|
Drifter Rod, R32-Hex32-R28 Flushing Hole 9.6 mm
With slimmed shank end of female shank |
3090 | 32 | 20.0 |
| 3700 | 32 | 24.0 | |
| 4000 | 32 | 25.9 | |
| 4310 | 32 | 27.9 |
5.
| Drill Rod | Length, mm | Diameter, mm | Weight approx., kg |
|

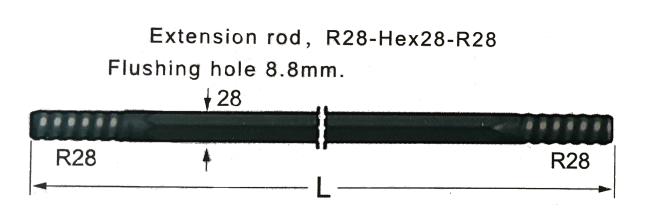

Extension Rod, R28-Hex28-R28 Flushing Hole 8.8 mm |
3050 | 28 | 15.0 |
6.
| Drill Rod | Length, mm | Diameter, mm | Weight approx., kg |
|
Speed Rod, R28-Hex28-R28 Flushing Hole 8.8 mm |
3050 | 28 | 15.0 |
Drill rod using thread system.
With wrench flats to aid in coupling/decoupling of rods for extension drilling.
Used in benching and long hole drilling.
Drilling precision can be further improved by using this as the first rod in a normal drill string. Furthermore, since this is a speed rod design it will produce straighter holes and at least 10% higher penetration rate in good rock conditions compared to rod and coupling sleeve combination system
Features:
1. High-grade raw material
2. Manufactured from high-grade steel and processed using state-of-the-art CNC machinery
and heat treatment
3. High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance.
Application:
1. Underground mining and surface mining
2. Drifting, bench and production drilling
3. Granite, basalt, limestone rock etc.
Delivery time is around 15-25 days.
Package: Carton or Wooden Box; also we can follow customers requirements.
P.S. We can design and manufacture according to customers’ requirements of the bit diameter, number of air holes and carbide button shape.
