API Drill Pipe Safety Valve OD146mm L500mm NC38 Kelly Valves For Oil Well
NC38 Inside blowout control tools 3~3/8" Upper / Lower kelly valves
Product information

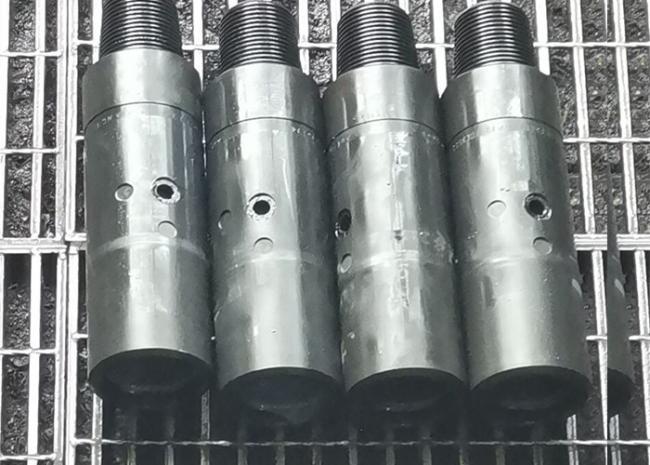

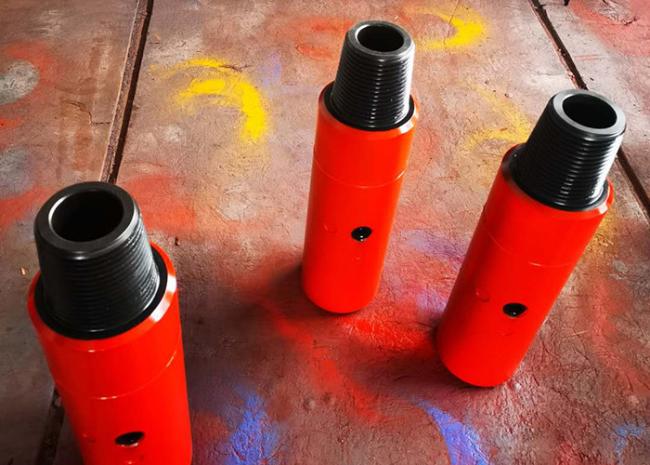

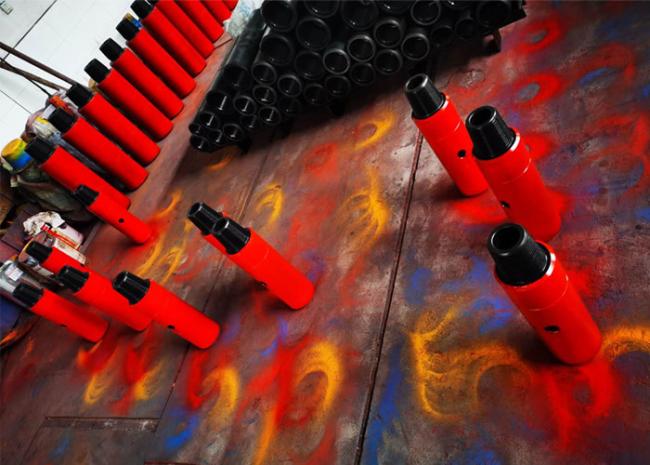

Kelly cock valve is a manual control valve in the drill string circulation system and is one of the effective tools to prevent blowout; it is upper Kelly valve and lower Kelly valve which is assembled the upper end and lower end of drill pipe.

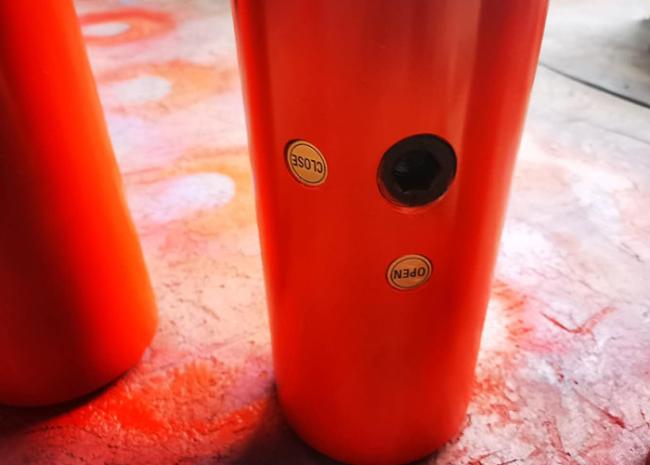

The kelly valve can be opened on or closed off by the specoal operating spanner at 90 degrees according to the indicatong dorection.
Specifications -
|
Name
|
Model | O.D. | I.D. | Connection | WP |
| mm(inch) | mm(inch) | API |
35MPa 70MPa 105MPa |
||
| Upper Kelly Valve | XS197 | 197(7-3/4) | 76.2(3) | 6-5/8REG LH | |
| XS146 | 146(5-3/4) | 44.4(1-3/4) | 4-1/2REG LH | ||
| Lower Kelly Valve | XS111 | 111(4-3/8) | 38(1-37/64) | NC31 | |
| XS121 | 121(4-3/4) | 44.4(1-3/4) | NC38 | ||
| XS146 | 146(5-3/4) | ||||
| XS165 | 165(6-1/2) | 71.4(2-13/16) | NC50 | ||
| XS178 | 178(7) | NC50 | |||
| XS184 | 184(7-1/4) | 5-1/2FH |
production name:kelly valves
Style and size: OD5 3/4", 4 1/2IF , 5000PSI
Connection: NC38
