IP Testing Equipment Hose Nozzles For Water Jetting Test For IPX5 And IPX6
IP Testing Equipment Hose Nozzles For Water Jetting Test for IPX5 And IPX6
Description of IP Testing Equipment:
Ingress protection, or IP Testing, is a basic requirement designed to assess the ability of a product to withstand external influences, such as liquids and solids, that it will encounter in it’s natural operating environment.
The need for IP testing is growing worldwide, both for industrial products and consumer goods, which are increasingly offered with “rugged” water and dust resistant properties. While it is possible to replicate standard IP tests using buckets, hoses and assorted ad hoc equipment, it is hard to demonstrate consistent results and, frankly, it’s often messy.

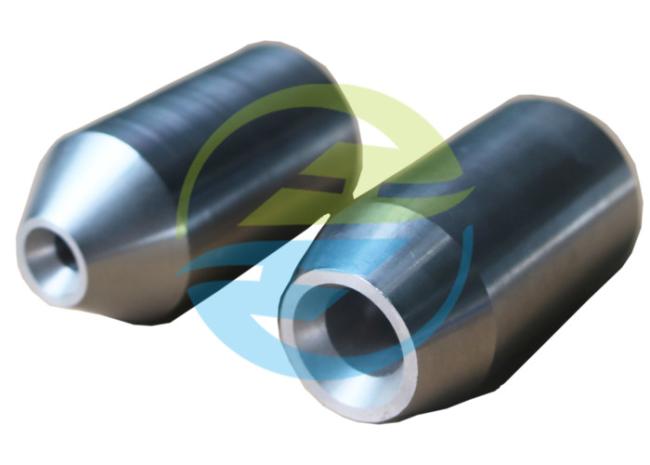

Hongce configures two pieces of hose nozzles for one machine to fit different test requirements. They are made of precision metal and have different specifications: One’s outlet diameter is 6.3 mm for IPX5 & 6K testing, and the other one’s diameter is 12.5 mm for IPX6 testing. You can select either one to complete the test conveniently.
Parameter of IP Testing Equipment:
| Model | HH0804 or HH0804A(with flow meter) |
| Nozzle Inner Diameter | 6.3 mm diameter for IPX5/6K, 12.5 mm diameter for IPX6 |
| Water Pressure | Adjustable |
| Water Flow Rate | IPX5: 12.5 L/min, IPX6: 100 L/min, IPX6K: 75 L/min |
| Test Duration | At least 3 min |
