IP Testing Equipment IPX8 Pressure Tank For Water Immersion Test With Stainless Steel Tank Body
IP Testing Equipment IPX8 Pressure Tank For Water Immersion Test With Stainless Steel Tank Body
Product Introduction for IP Testing Equipment
This is IPX8 Water Tightness Pressure Tester is manufactured in accordance with the standard of Clause IEC60529 degree of protection provided by enclosures (IP Code) of the IPX8.
Pressure water tightness test device is a device used to test whether a product has good sealing performance under pressure. The device detects whether the product is leaking by placing it in a container filled with water and then increasing the pressure. It can be used in various industries, such as automotive, aerospace, medical devices, etc., to ensure the quality and safety of products.
Technical Parameter for IP Testing Equipment
| Pressure vessel | Stainless steel tank, diameter 0.8 meter, height 1 meter |
| Pressure adjustment range | 0 ~ 6bar (can be customized) |
| Pressure system | Stainless steel pump + frequency converter |
| Pressure gauge accuracy | 0.25 degree, range: 10bar |
| Testing time | 0-99min |
| Maximum limit pressure | 6 bar |
| Pressure protection | Pressure switch protection |
| Connect to the water supply equipment by 3/4 high pressure steel wire hose connection | |

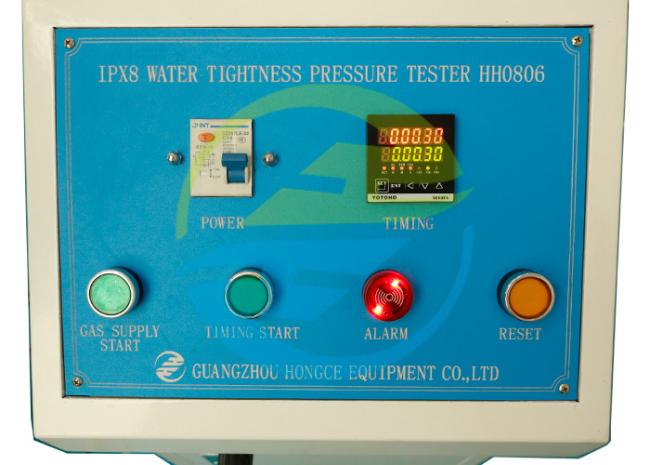

Picture for reference
