Automatic IPX1-IPX6 Waterproof Spray Test Chamber for IEC 60529 Rain, Splash & Water Jet Testing
Automatic IPX1-IPX6 Waterproof Spray Test Chamber for IEC 60529 Rain, Splash & Water Jet Testing
Product Brief Introduction
The Automatic IPX1~IPX6 Comprehensive Waterproof Spray Test Chamber developed by HongCe is a high-precision waterproof testing solution designed for evaluating the ingress protection performance of electrical and electronic products under simulated rain, dripping water, splash water, and powerful water jet environments.
This integrated testing system combines IPX1, IPX2, IPX3, IPX4, IPX5, and IPX6 waterproof testing functions into one intelligent chamber, helping manufacturers improve product reliability, waterproof safety, and international market compliance.
As a professional source manufacturer, HongCe provides factory-direct waterproof testing equipment with stable quality, professional technical guidance, customized services, and long-term after-sales support for laboratories, certification bodies, and industrial manufacturers worldwide.
Why Global Customers Choose HongCe Waterproof Test Equipment
- Integrated IPX1 to IPX6 waterproof testing
- Fully automatic PLC intelligent control system
- Stainless steel industrial chamber structure
- High test repeatability and stable performance
- Precise water pressure and flow control
- IEC 60529 compliant testing solution
Product Features
- Integrated Multi-Level Waterproof Testing
Supports complete IPX1, IPX2, IPX3, IPX4, IPX5, and IPX6 testing functions in one machine. - Intelligent PLC Touch Screen Operation
User-friendly interface with programmable test parameters and automatic operation. - Industrial Stainless Steel Structure
Corrosion-resistant chamber design ensures long service life and stable performance. - Precision Water Flow Control

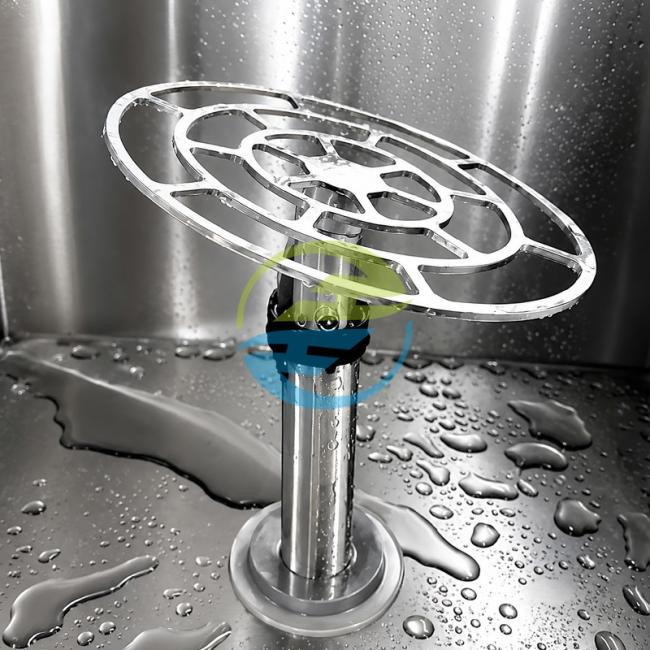

Stable water pressure and accurate flow adjustment improve test consistency. - Automatic Rotating Turntable
Ensures uniform water exposure from different directions.
International Reference Standards
| Standard Clause | Test Requirement | Description |
|---|---|---|
| IEC 60529 IPX1 | Dripping Water Test | Vertical dripping water shall not cause harmful effects |
| IEC 60529 IPX2 | Tilted Dripping Test | Dripping water test at 15° inclination |
| IEC 60529 IPX3 | Spraying Water Test | Water sprayed up to 60° from vertical |
| IEC 60529 IPX4 | Splashing Water Test | Splash water from all directions |
| IEC 60529 IPX5 | Water Jet Test | Water projected by nozzle from any direction |
| IEC 60529 IPX6 | Powerful Water Jet Test | Strong water jet exposure testing |
Technical Parameters
| Item | Technical Specification |
|---|---|
| Product Name | Automatic Comprehensive Waterproof Spray Test Chamber |
| Waterproof Grades | IPX1, IPX2, IPX3, IPX4, IPX5, IPX6 |
| Applicable Standard | IEC 60529 |
| Equipment Structure | Integrated waterproof test chamber |
| Chamber Material | SUS304 stainless steel |
| Control System | PLC intelligent touch screen |
| IPX1 Drip Area | 1000*1000mm |
| IPX1 Water Flow | 1~5mm/min |
| IPX2 Tilt Angle | 15° |

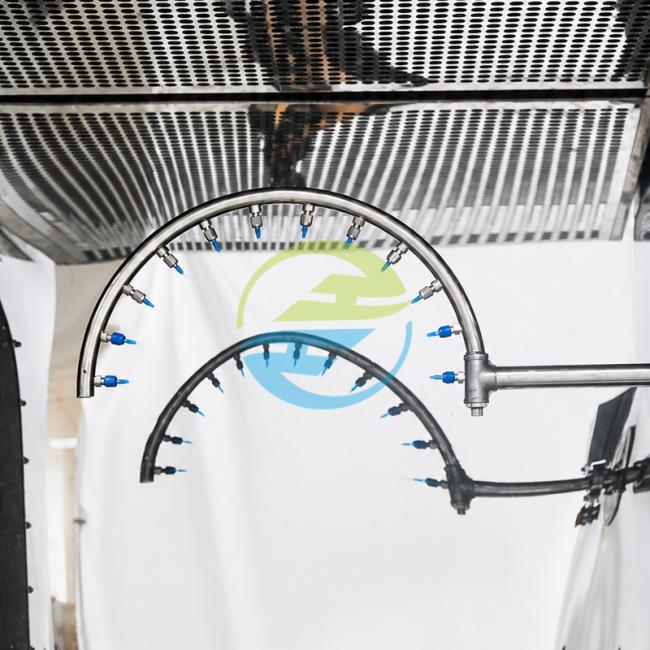

| IPX3/IPX4 Oscillating Tube Radius | R400mm |
| Oscillating Tube Aperture | 0.4mm |
| Hole Spacing | 50mm |
| Oscillating Tube Swing Angle | ±60° (IPX3), ±180° (IPX4) |
| IPX5 Nozzle Diameter | 6.3mm |
| IPX5 Water Flow | 12.5L/min ±5% |
| IPX6 Nozzle Diameter | 12.5mm |
| IPX6 Water Flow | 100L/min ±5% |
Applications
- Household appliance manufacturing
- Consumer electronics industry
- Automotive component testing
- LED lighting industry
- Electrical enclosure manufacturing
Detailed images
FAQ
-
Q1: Which waterproof grades can this equipment test?
The chamber supports IPX1, IPX2, IPX3, IPX4, IPX5, and IPX6 waterproof testing.
-
Q2: Is the equipment compliant with IEC 60529?
Yes. The equipment is designed according to IEC 60529 international waterproof testing standards.
-
Q3: What products can be tested?
It is suitable for electronics, household appliances, automotive parts, LED lighting, electrical enclosures, and industrial products.
-
Q4: Can the equipment be customized?
Yes. HongCe supports customized chamber sizes and special testing configurations.
-
Q5: Does HongCe provide overseas technical support?
Yes. Remote technical support and after-sales service are available for global customers.
-
Q6: Is operator training available?
Yes. HongCe provides operation manuals, technical guidance, and online support.
