Steel Ball Impact Testing Machine for IEC 60068-2-75 Mechanical Strength Verification of Electrical Products
Steel Ball Impact Testing Machine for IEC 60068-2-75 Mechanical Strength Verification of Electrical Products

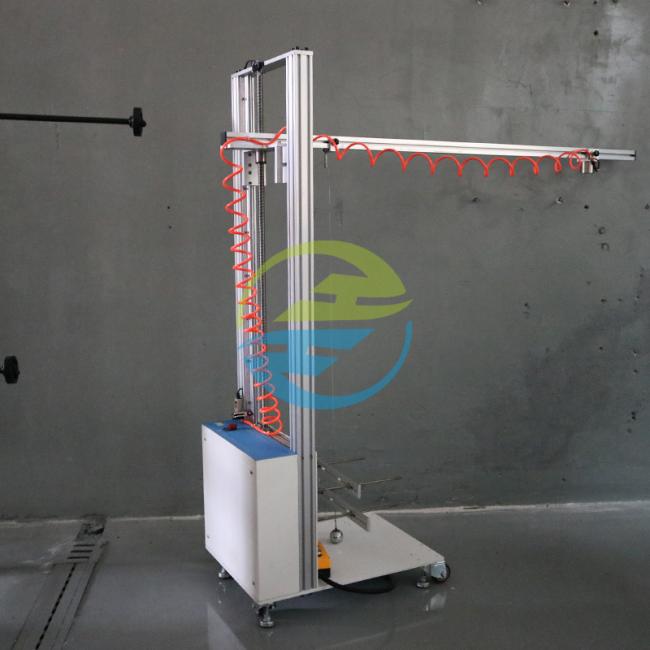

The Steel Ball Impact Testing Machine is a precision-engineered impact testing apparatus designed to evaluate the mechanical strength and impact resistance of electrical equipment enclosures, lighting products, household appliances, electronic devices, and other products requiring compliance with international safety standards.
- Direct Factory Supply
- IEC Standard Compliant Design
- Adjustable Drop Height from 0.5m to 1.5m
- High Precision Mechanical Structure
- Durable Stainless Steel Components
Uses a precisely manufactured 500±25g steel ball with a diameter of 50mm to reproduce standardized mechanical impacts specified by IEC standards.
The release height can be adjusted between 0.5m and 1.5m, allowing multiple test conditions according to different product requirements.
Ensures the steel ball impacts the designated test point consistently for reliable repeatability.
Constructed with industrial-grade materials for long service life and stable performance.
User-friendly design enables operators to complete testing efficiently without complex programming.
- IEC 60068-2-75 Environmental Testing – Test Eh: Hammer Tests
- Mechanical impact testing of equipment
- Verification of enclosure strength
- Assessment of resistance against external mechanical impacts
- Evaluation of product safety after impac
- Maintain structural integrity
- Show no hazardous deformation
- Continue meeting safety requirements
- Retain intended protective functions
| Item | Specification |
|---|---|
| Product Name | Steel Ball Impact Test Apparatus |
| Model | SH-12 |
| Test Method | Free-fall steel ball impact |
| Steel Ball Diameter | 50 mm |
| Steel Ball Weight | 500 ± 25 g |
| Steel Ball Material | Hardened Steel |
| Drop Height Range | 0.5 m – 1.5 m |
| Height Adjustment | Manual Adjustable |
| Impact Direction | Vertical |
| Release Method | Mechanical Release |
| Test Positioning | Adjustable |
| Frame Material | Industrial Metal Structure |
| Operating Mode | Manual |
| Sample Type | Electrical and Electronic Products |
| Compliance Standard | IEC 60068-2-75 |
It is primarily designed according to IEC 60068-2-75 requirements for mechanical impact testing.
The apparatus uses a 50 mm diameter steel ball.
500 ±25 g.
Yes. The drop height is adjustable from 0.5 m to 1.5 m.
Electrical enclosures, household appliances, lighting products, consumer electronics, and various industrial products.
Yes. Customized designs are available according to customer testing requirements.
Founded with a mission to provide reliable IEC testing solutions worldwide, HongCe specializes in the development and manufacture of testing equipment for:
- IEC Testing Equipment
- Waterproof Testing Equipment
- Appliance Testing Equipment
- Battery Testing Equipment
- Plug & Socket Testing Equipment
- Environmental Test Chambers
- Mechanical Strength Testing Equipment
As a source manufacturer with independent R&D capabilities, HongCe serves laboratories, certification bodies, universities, and manufacturers across more than 100 countries and regions.
