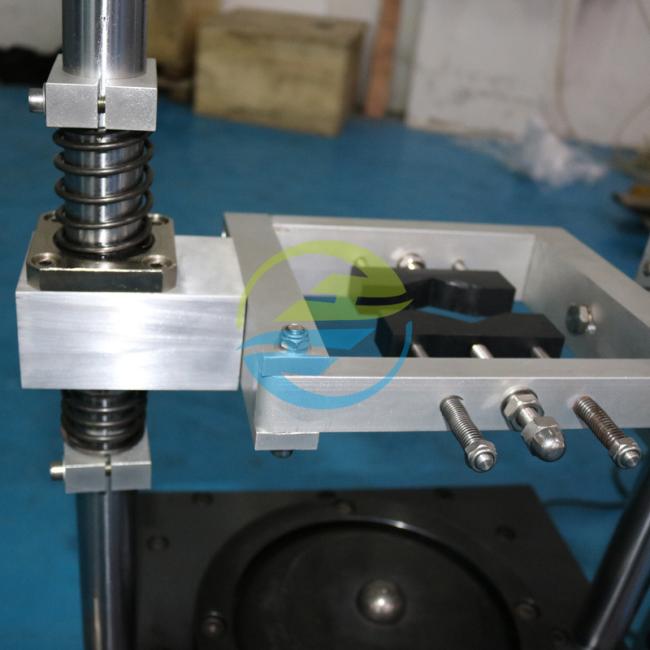

Heavy-Duty Impact Drill Durability Testing Equipment for IEC 60745 Power Tool Endurance Verification
The Heavy-Duty Impact Drill Durability Testing Equipment is a professional IEC Test Equipment solution designed for endurance and reliability evaluation of electric impact drills and hammer drills used in residential, commercial, and industrial applications.
Modern impact drills are subjected to repeated mechanical loads, rotational stress, and vibration throughout their service life. Manufacturers must ensure that products maintain performance, safety, and structural integrity after prolonged operation.
- Verify product endurance
- Improve product quality consistency
- Reduce warranty claims
- High-Precision Durability Evaluation
Accurately simulates repeated operating cycles required by IEC standards.
- Automatic Testing Operation
Reduces operator intervention and improves testing efficiency.
- Stable Mechanical Loading System
Provides consistent test conditions throughout long-duration endurance testing.
- Adjustable Test Parameters
Supports different impact drill specifications and testing requirements.
- Industrial-Grade Construction
Designed for continuous laboratory operation.
| Standard | Clause | Description |
|---|---|---|
| IEC 60745-2-1 | Clause 19 | Abnormal Operation |
| IEC 60745-2-1 | Clause 20 | Stability and Mechanical Hazards |
| IEC 60745-2-1 | Clause 21 | Mechanical Strength |
| IEC 60745-2-1 | Clause 22 | Construction Requirements |
| IEC 60745-2-1 | Clause 24 | Components |
| IEC 60745-2-1 | Durability Test Requirements | Endurance Verification of Impact Drills |
| No. | Item | Specifications |
| 1 | Power supply | 220V/60Hz |
| 2 | Air source | 5~8 bar |
| 3 | Electrical control | MITSUBISHI PLC, 7 Inch Touch screen |
| 4 | Load voltage | 0-250V adjustable, current display |
| 5 | No-load rotation angle | 0°,90°,180°, can manual control clockwise or counter clockwise |
| 6 | No-load rotation rate | 0-360°/s, preset |
| 7 | Power on time | 0-999.9s, preset |
| 8 | Power off time | 0-999.9s, preset |
| 9 | Test time | 0-9999h, preset |
| 10 | Total test time | 0-9999h, preset |
| 11 | Interval time | 0-9999min, preset |
| 12 | Load pressure | 100,125,150,175,200,250,300,350,400N preset |
| 13 | Impact head | 0.7,1.4,2.3,3.4kg (include the connect handle), use according to table 101 |
| 14 | Steel ball | Φ38mm |
| 15 | Steel plate | 100,140,180,220mm, use according to table 101 |
| 16 | Rubber plate | A set of 4, Matching with steel plate and steel base |
| 17 | Steel base | base weight 90kg, equipped with 9 pcs 30kg weights |
| 18 | Dimension | Control cabinet 60*40*75cm, about 100kg; Test rack 40*40*200cm, about 390kg |
- Electric Impact Drills
- Rotary Hammer Drills
- Hammer Drills
- Corded Impact Drills
- Cordless Impact Drills
- Professional Construction Drills
- Precision Mechanical Simulation Technology
Reproduces actual operating conditions specified in IEC standards.
- Stable Impact Loading System
Ensures repeatable and reliable testing results.
- Intelligent Control System
Provides accurate cycle management and automated testing.
- Industrial Safety Architecture
Designed for laboratory and certification environments.
- High Repeatability
Supports reliable comparison between different product batches.
- Q1: Which standards does this equipment comply with?
A: The HDD8303 is designed according to IEC 60745-2-1 requirements for impact drill durability testing.
- Q2: What products can be tested?
A: Electric impact drills, hammer drills, rotary hammer drills, and similar power tools.
- Q3: Is customization available?
A: Yes. HongCe provides customized fixtures and special testing solutions according to customer requirements.
- Q4: Can the equipment be used for certification testing?
A: Yes. It is suitable for compliance verification and certification preparation testing.
- Q5: Does HongCe provide installation support?
A: Yes. We provide remote installation guidance, operation training, and technical support.
- Q6: What is the equipment warranty period?
A: Standard warranty and long-term technical service are available.
