IEC Test Finger Probe for Mechanical Strength and Accessibility Testing of Household Electrical Appliances
The IEC 60335 test finger sleeve is designed to evaluate the mechanical strength and protective performance of non-removable components in household appliances. It is widely used to verify whether protective components designed to prevent contact with hazardous internal parts, moving mechanisms, or humidity-sensitive structures can withstand the mechanical stresses encountered during normal use.
This test finger sleeve is manufactured by Hongce, a professional manufacturer of IEC testing equipment, and is designed strictly according to the requirements of IEC 60335 Figure 7 and GB4706.1 Figure 7, providing reliable and safe test results for laboratories, manufacturers, certification bodies, and quality control departments.

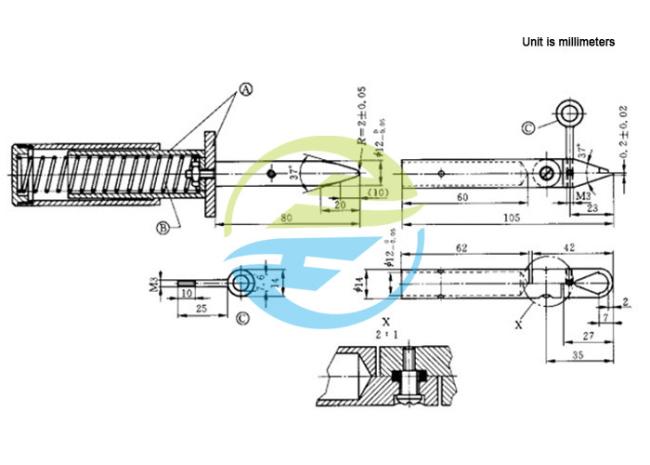

- Designed according to IEC 60335-1 Figure 7.
- Meets GB4706.1 Figure 7 requirements.
- Suitable for international safety compliance testing.
- Supports multiple applied forces.
- Provides reliable mechanical stress simulation.
- Ensures consistent testing performance.
- Precision-machined stainless steel structure.
- Excellent wear resistance.
- Long service life for laboratory applications.
- Suitable for various appliance structures.
- Applicable for accessibility and mechanical robustness testing.
- Source manufacturer with R&D capabilities.
- Custom testing solutions available.
- Stable delivery and technical support.
- Mechanical stress testing.
- Accessibility verification.
- Protective structure evaluation.
- Household appliance safety testing.
- Compliance testing.
- Quality inspection.
- Product certification support.
- Design validation testing.
| Standard | Clause | Description |
|---|---|---|
| IEC 60335-1 | Figure 7 | Test nail requirements for household appliances |
| IEC 60335-1 | Clause 8.1 | Protection against access to internal parts |
| IEC 60335-1 | Clause 22 | Construction requirements |
| GB4706.1-2005 | Figure 7 | Mechanical strength requirements |
| IEC 61032 | Accessibility test requirements | Protection verification principles |
| IEC 60529 | Accessibility protection evaluation | Protection level verification |
| IEC 62368-1 | Accessibility assessment | Safety engineering requirements |
| IEC 60950 | Accessibility test requirements | Electrical equipment testing |
| UL Safety Standards | Accessibility evaluation | Product safety assessment |
| Technical Parameters | Specifications |
|---|---|

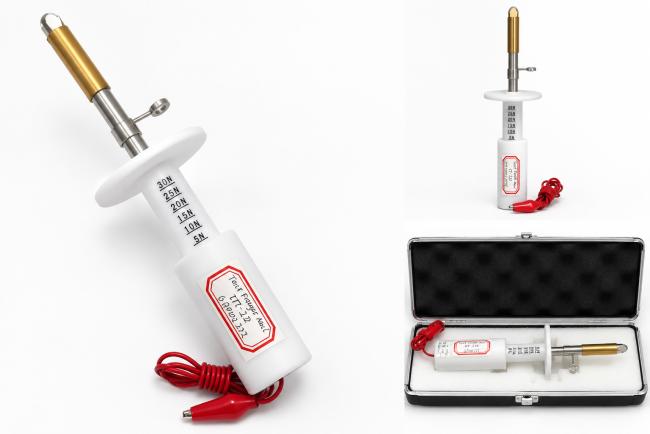

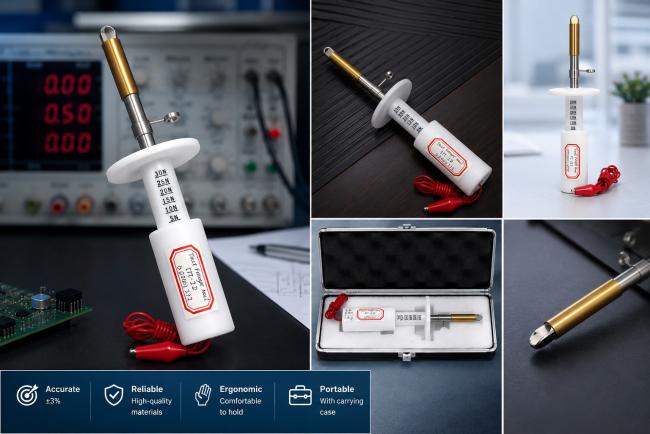

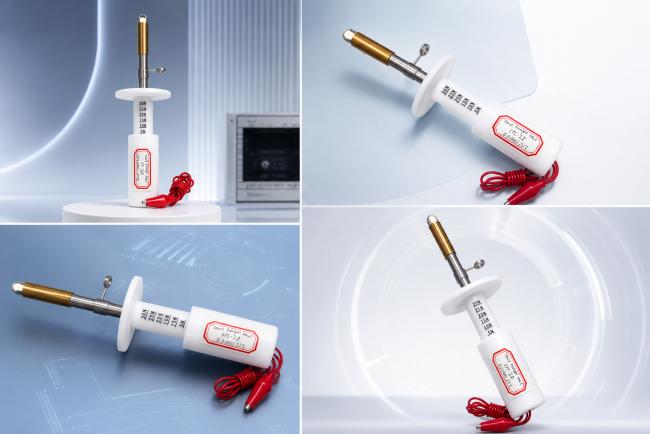

| Product Name | Test Finger Probe |
| Model | HT-I22 |
| Standard | IEC60335 Figure 7 |
| Reference Standard | IEC60335-1 Figure 7 |
| Reference Standard | GB4706.1-2005 Figure 7 |
| Probe Length | 80 mm |
| Finger Nail Angle | 37° |
| Test Finger Diameter | Φ12 mm |
| Applied Force Option 1 | 10N |
| Applied Force Option 2 | 20N |
| Applied Force Option 3 | 30N |
- Standardized finger nail geometry simulation
- Precision force application
- Mechanical stress simulation
- IEC compliant accessibility testing
- Repeatable laboratory-grade measurements
- International safety standard compliance design
Q1. What standards does this Test Finger Probe comply with?
It complies with IEC60335 Figure 7 and GB4706.1 Figure 7 requirements.
Q2. What products can be tested?
It is suitable for household appliances, electrical equipment, and non-removable protective structures.
Q3. What forces can be applied?
The HT-I22 supports:
- 10N
- 20N
- 30N
Q4. Is customization available?
Yes. HongCe provides customized IEC testing solutions.
Q5. Are calibration services available?
Calibration certificates can be provided upon request.
Q6. Can it be used in certification laboratories?
Yes. It is widely used by certification bodies and testing laboratories.
