IEC61032 Figure 6 Ingress Protection Test Equipment Sphere Test Probe 1
IEC61032 Figure 6 Sphere Test Probe 1
Product information:

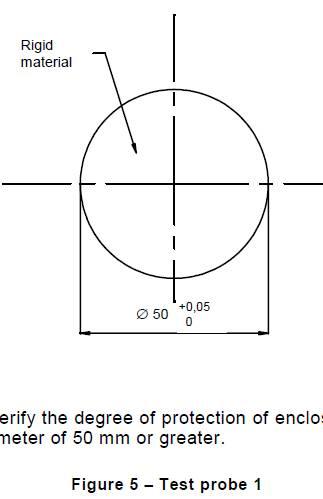

This test sphere probe confirms to IEC61032 figure 5 test probe 1,IEC60335,IEC60950, IEC60598,UL507 standards. It is intended to verify the degree of protection of enclosures against ingress of solid foreign objects having a diameter of 50mm or greater. It is also regarded as the steel ball for dropping impact test. It can be equipped with a lifting ring, and used for pendulum bob test after hanging with a rope. Steel balls with other diameters can be customized.
Standard:IEC61032 figure 5 test probe 1,IEC60335,IEC60950, IEC60598,UL507.
Application:It is intended to verify the degree of protection of enclosures against ingress of solid foreign objects having a diameter of 50mm or greater. It is also regarded as the steel ball for dropping impact test. It can be equipped with a lifting ring, and used for pendulum bob test after hanging with a rope. Steel balls with other diameters can be customized.
Test sample:Easily accessible enclosure live parts or mechanical parts.
Feature:Steel ball.
Technical parameters:
|
Parameters /Model |
HT-I05 |
HT-I05A |
HT-I05B |
HT-I05C |
HT-I05D |
|
Name |
Test probe 1steel ball |
50mm dropping steel ball |
50mm steel ball with ring |
50.8mm dropping steel ball |
50.8mm steel ball with ring |
|
Sizes |
SФ50+0.05 0 |
SФ50 |
SФ50 |
SФ50.8 |
SФ50.8 |
|
Weight |
---- |
500±25g |
500±25g |
535±25g |
535±25g |
|
Standard |
IEC61032/GB16842 |
GB4943 |
GB4943 |
UL507 |
UL507 |
