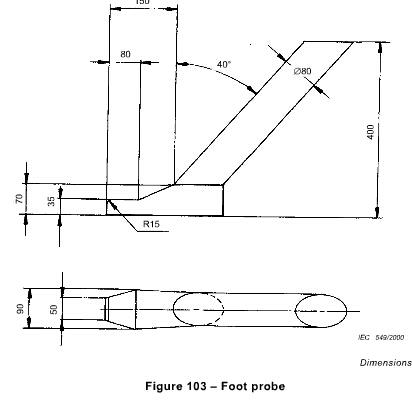

IEC 60335-2-92 Fig 103 Foot Probe

Product details:

It conforms to the standard of IEC 60335-2-92 Fig 103,UL 82 and UL 1447. The standard requires rotary power mowers to have protective shields. These shields prevent the operator's foot from contacting the blade, either under the mower's deck or in the discharge chute area, when the operator has his or her hands on the mower's controls. Generally, a shield must prevent a foot probe from entering the path of the mower blade or from forcing any part of the mower into the path of the blade. The only difference between the UL Foot Probe and International Foot Probe is the length of the simulated leg.

The tip is made of stainless steel.

Standard:IEC 60335-2-92 Fig 103,UL 82 and UL 1447.

Application:The standard requires rotary power mowers to have protective shields. These shields prevent the operator's foot from contacting the blade, either under the mower's deck or in the discharge chute area, when the operator has his or her hands on the mower's controls.

Test sample:Electric lawn mowers and sand cutter.

Feature:POM handle+Aluminum probe,it is manufactured according to the standard figure.
