IEC 60529 IPX9 High Pressure Hot Temperature Water Jetting Test Chamber
IPX9 IPX9K High Pressure Hot Temperature Fan Jet Test Chamber HH0807
Description:
This equipment is used to inspect the IEC enclosures for the electrical equipment (IP supplementary code test), and it is applicable for waterproof testing of the electrical and auto parts under high temperature and high pressure.
Confirm to standards:
IEC 60529 IPX9K;
EN 60529 IPX9K;
ISO 20653-2006;
ISO30653-2006;
QC/T 417.1-200;
TSC1000G;
DIN40050-9 and so on.
Test sample: Products with IPX9 degrees waterproof test products, such as automobile and motorcycle parts, electrical and electronic industries.
Feature:

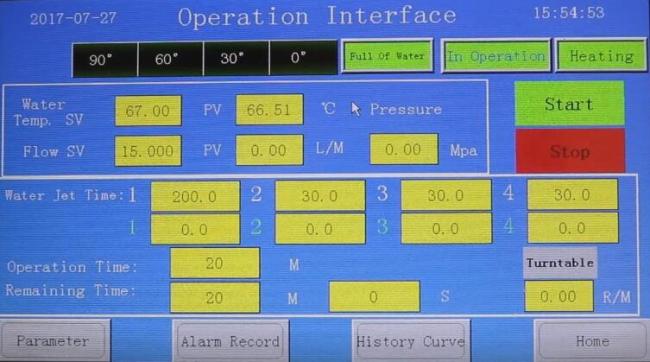

The equipment is consists of heating water tank, high pressure plunger pump, high pressure solenoid valve, fan nozzle, turntable and so on. Firstly, heat the water in the water storage tank to required temperature, secondly, mount the sample on the turntable, adjust the position of the nozzle, thirdly, close the protective door of the test equipment, set all test required parameters, finally, start the test. The four nozzles spray for 30 seconds in order during the test.
Technical parameters:
| Test Water Temperature | 80±5 ℃ |
| Nozzle specification | It is designed according to the standard figure |
| Nozzle number | 4 (0°, 30°, 60°, 90°) |
| Spray pressure | 8MPa-10MPa (adjustable) |
| Spray flow | 14l/min-16l/min (change according to pressure) |
| Spray distance | 100~150mm adjustable (The maximum side of the test product shall not exceed 450mm) |
| Sample support platform | Diameter 400mm |
| Sample support platform rotate speed | 4-6r/min |
| Sample support platform bearing | ≤15kg |
| Sample support platform lift | 300mm~400mm (Manually) |
| Power supply for test sample | Provide interface for test product, 4 core wire power supply, the maximum 30A |
