IEC60529 Fig 2 Ingress Protection Test Equipment / IP5 IP6 Sand and Dust Environmental Test Chamber
IP5 IP6 Sand and Dust Environmental Test Chamber For Enclosure Protection
Standard :
- IEC60529-2001: Degrees of protection provided by enclosure (IP code), Fig 2
-
IEC60598-1-2008 and etc.
Principle and Structure
The test device is suitable for electrical products’ sand and dust test of first characteristic numeral 5 and 6 (IP5 and IP6). It is used to test sealing parts and enclosure’s sand and dust resistance capacity of the electrical and electronic products, car and motorcycles spare parts and seals. In order to detect the use, storage, transport performance of the electrical and electronic products, car and motorcycles spare parts and seals under the sand and dust environment.
This sand and dust test chamber is the same as the requirements of IEC60529-2001. It is with an addition of flow heating device, in order to work under low ambient temperature and heavy humidity conditions. Firstly, put the standard dry talc ( 2kg / m³ ) into the test chamber, then put the sample into the test chamber, after that, start the fan, to achieve a high density dust cloud in the test chamber, until reach to the set running time (generally 8h).
Chamber Features :
- A non-laminar flow of dust-loaded vertically circulating air
- With a vacuum pump
- The exhaust volume and pressure can be adjusted.
- A airflow temperature control device
Parameters :
| Device Name | Dust and Sand Test Chamber | ||
|
Main configuration |
Cabinet | Enclosure material | A3 plate electrostatic spraying |
| Inner material | SUS304B Stainless steel | ||
| Lead hole | It is for test sample's power cord to be connected to the external power supply | ||
| Observation window | large observation window in the middle of the door | ||
| Electrical control system | Controller |
PLC Control: A. blowing dust time (stop, blowing) can be adjusted B. Cycle: arbitrary adjustable C. Preset test time: 0.1H-9999.9H arbitrary adjustable D. Power: On-off- On E. There are accumulating function and power-off protection function
|
|
| Vacuum system | Equipped with a vacuum pump, pressure gauge, air filter, pressure regulator, connecting pipe | ||
|
Security Protection Device |
Power overload, short-circuit protection | ||
| Ground Protection | |||
| Voltage Protection | |||
| Motor phase loss protection | |||
| Alarm beep prompt |
|||

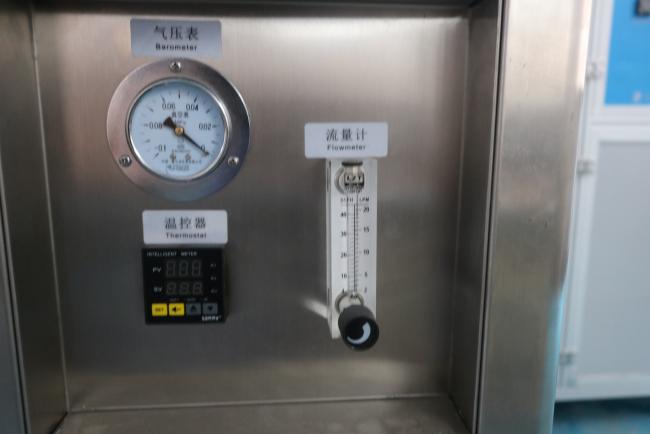

Picture For Reference:
