IEC 60335 Programmable Temperature Humidity Chamber PTH-1000 (150L) ,-40 ℃～ +150 ℃,

20 %RH～ 98 %RH

Standard

IEC60335-2-17, Clause 21.110.3, Clause 21.111.2.

Application

It is used to process the aging test for the blanket’s flexible fabric parts.

Test sample

Blanket’s flexible fabric parts.

Feature

Box type

Parameters

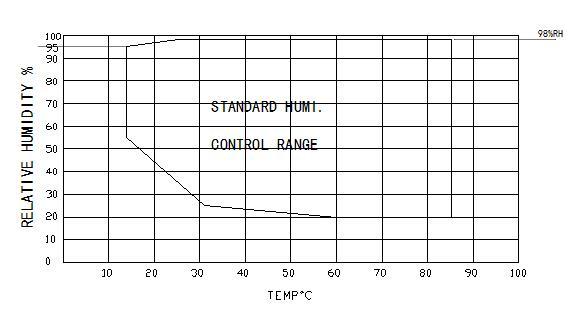

*Note: Please refer to below humidity use range chart!

4. Temperature and humidity control accuracy: ±0.2℃; ±2.5%RH.

* To guarantee above 2~4 performance, should be measured 30 minutes after the temperature sensing measurements is stable!

5. Temperature and humidity distribution uniformity: ±2℃; ±3%RH.

*Note: To guarantee below 6~11 performance, the measuring positions should be each wall’s 1/6 positions of the test zone, and should be measured 30 minutes after the temperature is stable!

6. Heating time: Heating from the room temperature to 150℃, the total heating time is 50 mins (under non-load state).

7. Cooling time: Cooling from the room temperature to -40℃, the total cooling time is 40mins (under non-load state).

8. Inner chamber dimensions: test area: 50×60×50cm(W×H×D).

*Note: The volume of placing samples should not exceed 2/3 of the capacity of the test zone.

9. Equipment installation space: at least 920×1600×870cm(W×H×D).

10. Test chamber door: 80 × 105 cm(W×H), total 1.

11. Power source: AC 1 ∮ 220 V 50 Hz MAX 40 A

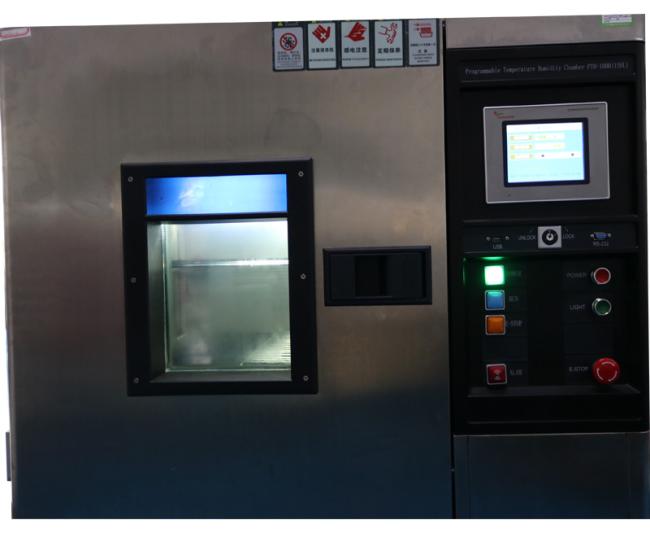

Picture for reference
