IPX1234 Ingress Protection Test Equipmnent IEC60529 Waterproof Degrees Test Chamber 512L
IEC60529 IPX1234 Waterproof Degrees Test Equipment Ingress Protection Test Chamber
Product Introduction
IPX1/2, IPX3/4 waterproof degrees test equipment are designed and manufactured according to IEC 60529 < Degrees of protection provided by enclosures (IP Code)>. This equipment is applied in IPX1, IPX2, IPX3 ,IPX4 waterproof degrees testing purposes, which are widely adopted by luminaire products, electrical and electronic products certification institutions, testing organizations and production enterprises for quality control.
Application

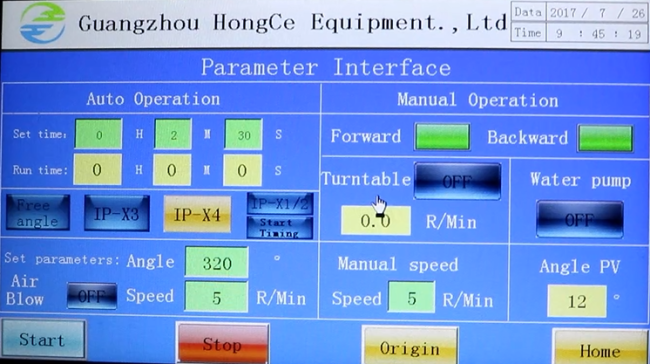

This equipment is suitable for the test of electrical products which are enclosure and sealed in the rain environment whether can ensure the good performance of equipment and components. The scientific design of this equipment, so that the equipment can be realistically simulated dripping water, water spraying, splashing water etc. The application of the comprehensive control system and the frequency conversion technology makes the rotation angle of the test sample rack. The swing angle of the pendulum rod and the swing frequency of the spray water can be adjusted automatically.
Technical parameters
| Inner box size (mm) | 800×800×800(L×W×H) |
| Rotating speed(rpm) | 1 ~5 adjustable, turntable diameter:300mm(IP 1.2 standard. Turntable can be tilted 15°) |
| The height of the turntable |
200mm, it is adjustable. |
| Spray ring radius:(mm) | 300 |

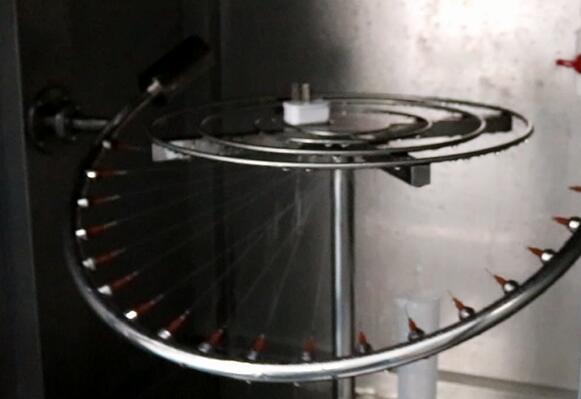

| Swing angle range of the oscillating tube | 45°, 120°,360° |
| Needle hole(mm) | φ0 .4 |
| Distance between holes(mm) | 50 |
| Water flow of each hole | 0.07 L/min +5% |
| Spray pressure(Kpa) | 80-150 |
| Pendulum swing | Max.±150° |
| Swing speed | IP3 15times/min; IP4 5times/min |
| Testing time | 1-999,999min(can be set) |
| Rain pressure | 80~150Kpa (adjustable) |
| Control system | Independent research and development |
| The distance between the test equipment and the test sample | 200MM |
| Chamber material | stainless steel or powder coating |
| Window | Visible toughened glass |
| Equipped with a modest turntable (used to place the sample) with adjustable speed. | |
Structural material:
1. High- quality acid -proof stainless steel 304 inner liner.
2. Outer box is made of stainless steel 304.
3. The sample table is equipped with a circular turntable with adjustable speed.
Safety protection device:
- Power overload and short circuit protection
- Ground protection
- Water shortage protection
- Alarm ring prompt
