IEC60884-1 IPX1 IPX2 Test Vertical Drop Rain Test Chamber Needle Hole Φ0.4mm
IPX1 IPX2 Vertical Drop Rain Test Chamber
Standard
IEC60529 degree of protection provided by enclosures (IP Code) of the IPX1 and IPX2, IEC60884-1, IEC60335-1, IEC60598-1.
Application
It is used for the testing of IPX1 and IPX2.
Test sample
The test apparatus with water proof functions, such as electronic appliances, lamps, electrical cabinets, electrical components,car, motorcycle, electrical products (such as automotive instrument, all kinds of switches, micro motors, etc.).
Product information
This equipment is suitable for the test of electrical products which are enclosure and sealed in the rain environment whether can ensure the good performance of equipment and components. The scientific design of this equipment, so that the equipment can be realistically simulated dripping water, water spraying, splashing water etc. The application of the comprehensive control system and the frequency conversion technology makes the rotation angle of the test sample rack. The swing frequency of the spray water can be adjusted automatically.
Technical parameters
| Inner box size (mm) | 800×800×800(L×W×H) |
| Dripping rate (Water flow) | 1+0.05 0mm/min or 3+0.05 0mm/min switchable |
| Rotating speed(rpm) | 1 ~10 adjustable(IP 1.2 standard. Turntable can be tilted 15°). |
| Drip box(mm) | 600X600MM |
| The distance between the drip box and the test sample | 200MM |
| Needle hole(mm) | φ0 .4 |
| Distance between holes(mm) | 20 |
| Dripping rate (Water flow) | 1MM or 3MM per minute, adjustable. |
| Testing time | 1-999,999min(can be set) |
| Power Supply | 220V 50Hz(can be customized ) |
After the test, the function test can be proceeded after normal temperature recovery of 24 H.
All stainless steel or powder coating, visible toughened glass window.
Equipped with a modest turntable (used to place the sample) with adjustable speed.
Control system: Independent research and development.
Structural material:
1. High- quality acid -proof stainless steel 304 inner liner.
2. Outer box is made of stainless steel 201.
3. The sample table is equipped with a circular turntable with adjustable speed.
Safety protection device:
- Power overload and short circuit protection
- Ground protection
- Water shortage protection
- Alarm ring prompt

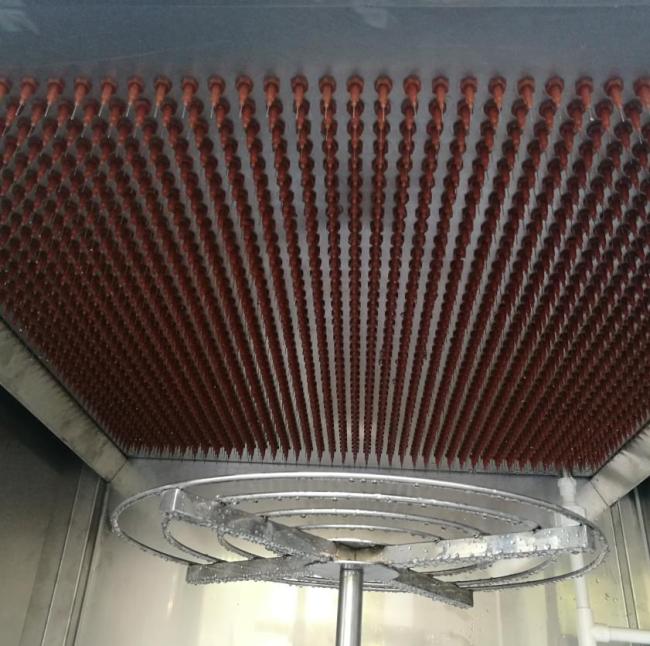

Picture for reference
