IPX8 Ingress Protection Test Equipment , Water Tightness Pressure Tester Pressure Adjustment Rang 0 ~ 6bar
Price:
Negotiation
MOQ:
1 set
Delivery Time:
30 days
Brand:
HongCe
Product Description
IEC60884-1 IPX8 Water Tightness Pressure Tester Pressure Adjustment Rang 0 ~ 6bar
Product Introduction
The IPX8 Water Tightness Pressure Tester is manufactured in accordance with the standard of Clause IEC60529 degree of protection provided by enclosures (IP Code) of the IPX8, IEC60884-1, IEC60335-1, IEC60598-1. It is used to assessment of enclosures and sealing element whether can ensure good performance of equipment and components after the water test or during the test.
Technical Parameter
| Pressure vessel | Stainless steel tank, diameter 0.8 meter, height 1 meter |
| Pressure adjustment range | 0 ~ 6bar (can be customized) |
| Pressure system | Stainless steel pump + frequency converter |
| Pressure gauge accuracy | 0.25 degree, range: 10bar |
| Testing time | 0-99min |
| Maximum limit pressure | 6 bar |
| Pressure protection | Pressure switch protection |
| Connect to the water supply equipment by 3/4 high pressure steel wire hose connection | |

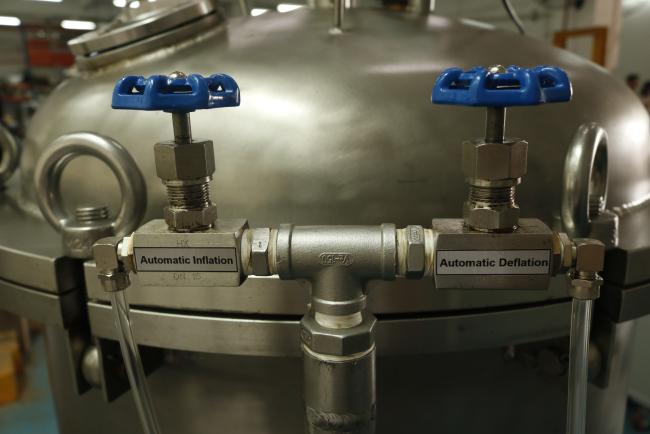

Picture for reference
