IEC60529 IP2 Ingress Protection Test Equipment Test Probe 2 - 12.5mm Steel Ball
IEC60529 IP2 Ingress Protection Test Equipment Test probe 2 - 12.5mm steel ball
IEC60335-1 Clause 22.1:
If the appliance is marked with the first numeral of the IP system or any of the additional letters of the IP system, the relevant requirements of IEC 60529:1 989 including IEC 60529:1 989/AMD1 :1 999 and IEC 60529:1 989/AMD2:201 3 shall be fulfilled.
Compliance is checked by the relevant tests. Ingress Protection Test Equipment

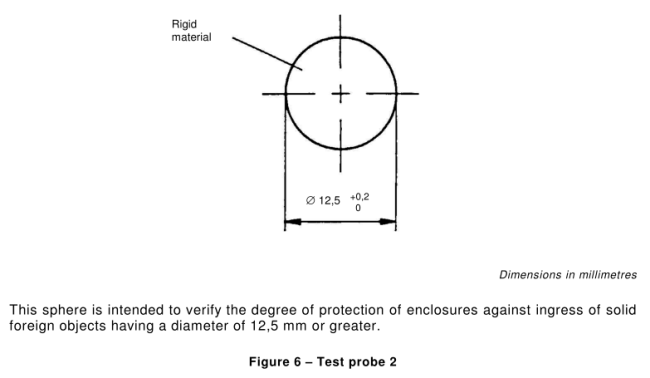

Standard:IEC61032 figure 6 probe 2,IEC60529 of IP2.
Application:It is intended to verify the degree of protection of enclosures against ingress of solid foreign objects having a diameter of 12.5mm or greater. Ingress Protection Test Equipment
Test sample:Easily accessible enclosure live parts or mechanical parts.
Feature:Steel ball, rigid test. Ingress Protection Test Equipment
Parameters:
| Model | HT-I06 | HT-I06T |
| Name | Test probe 2 steel ball | Test probe 2 steel ball with force |
| Steel ball diameter | SФ12.5+0.2 | SФ12.5+0.2 |
| Force | ---- | With force of 30N |
| Applied standard | IEC61032.1 | IEC60529 |
Ingress Protection Test Equipment
