IEC 60529 IPX5-6 Spray Test Equipment With Φ6.3mm And 12.5mm Nozzle 500L Tank
IEC60529 IPX5-6 Spray Test Equipment With Φ6.3mm And 12.5mm Nozzle 500L Tank
Product information: Ingress Protection Test Equipment
The spray test system is designed and manufactured according to the standard IEC60529<<Degrees of protection provided by enclosures (IP Code)>>, used to test waterproof performance of the electrical products which second characteristic is numeral 5/6.
This machine is suitable for enclosure protection rating evaluation of electrical appliances and electronic equipment, against the harmful effects due to water entering the housing of the device. Ingress Protection Test Equipment
Technical parameters:
| Model | IPX56A |

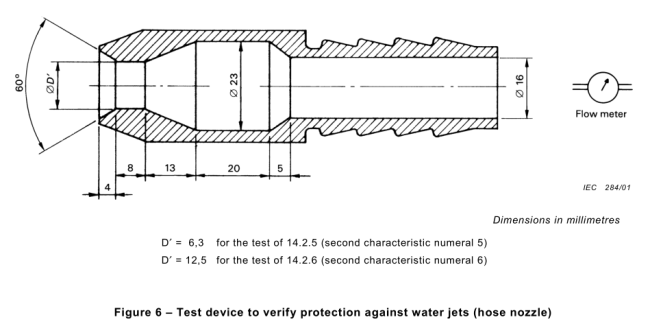

| IPX5 Spray aperture (mm) | Ø6.3mm |
| IPX6 Spray aperture (mm) | Ø12.5mm |
| IPX5 Spray Flow | 12.5L/min±5% |
| IPX6 Spray Flow | 100L/min±5% |
| The distance of IPX56 nozzle mouth to test products | 2.5m-3m |
| Water Pump | A multi-stage stainless steel pumps |
| Pressure gauge | 0～0.25Mpa |
| Timer | 1－99Min |
| Sample turntable | Ø600mm, |
| Sample turntable rotation speed | 1~5r/min (adjustable),can rotate clockwise or counterclockwise |
| Tiltable angle | 15° Ingress Protection Test Equipment |
| Max load | 50KG |
| Sample turntable material | SUS304# stainless steel |
| Reservoir (L) | 500L |
| Reservoir material | SUS304# stainless steel |
| IPX5/6 Input supply | 380VAC 50HZ (Voltage fluctuations≦±10%) |
| Power | 3KW |
| Sample power supply | 220V |
Specifications for sample turntable:
- Turntable Material: SUS304 stainless steel, diameter ф600mm. Turntable height is adjustable, adjustable range: 1200-1800mm, 300mm.
- Maximum load: 50KG.
- Turntable rotation speed: 1-5 r / min adjustable. Ingress Protection Test Equipment
- Turntable electrical part is fully sealed to prevent water leakage. Can equip with a waterproof universal socket.
- Turntable adopts to domestic high-speed motors, adjustable speed within the standard range. Containing a reducer (reduction ratio 1: 300)
- Turntable can rotate clockwise or counterclockwise
- There are four activities with brake casters beneath the turntable, easy for moving and stationary Ingress Protection Test Equipment
