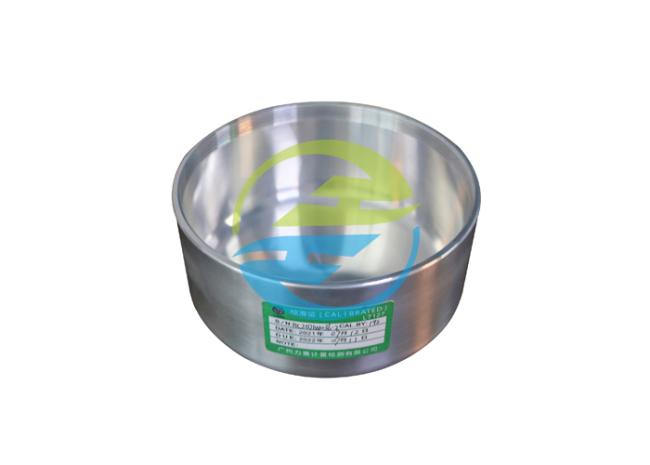

IEC60335-2-9 Electrical Appliance Tester - Aluminum Vessel For Dropping Test 120mm Diameter​

Direction For Use:

This product is a drop impact accessories surface of the electromagnetic stove, when put into sand or other particles reach to1800g ± 10g, and then in the height of 150mm free fall on the cooking area, such do the test back and forth 10 times.

Note: To avoid sand or particles scattering, please tighten the lid. Turn the lid clockwise to tighten and counterclockwise to open.

Products Introduction:                                        Electrical Appliance Tester

This product is manufactured according to the standard of IEC60335-2-9 clause 21.101, it is used for the impact strength test of the electromagnetic stove. It is made of pure aluminum, the outer ring has a V-lock coil slots, use rope and cloth cover can prevent the sand spread out when dropping.

This product is practical and simple, it is the special accessories for dropping test.

Standard: This device meets the standard of IEC 60335-2-6 clause 21.102 and IEC60335-2-9 clause 21.101,Household and similar electrical appliances-Safety-Part 2-9:Particular requirements for grills, toasters and similar portable cooking appliances.

Application: It is used for testing the surfaces of hotplates of glass-ceramic or similar material shall withstand the stresses liable to occur in normal use.                        Electrical Appliance Tester

Test sample:Hotplates of glass-ceramic or similar material.

Features:Making of pure aluminum, with lid, prevent sand leakage. The hotplate is operated at rated power input with its control adjusted to the highest setting. Induction hotplates are operated as specified in Clause 11. When steady conditions are established, the hotplate is switched off and a vessel has a copper or aluminum base that is flat over a diameter of 120mm±10mm, its edges being rounded with a radius of at least 10mm. It is uniformly filled with at least 1.3kg of sand or shot so that the total mass is 1.80kg±0.01kg.

The vessel is dropped 10 times onto each cooking zone. It is removed and the appliance is operated at rated power input until steady conditions are established.                                                                                               Electrical Appliance Tester

Parameters:
