1064nm CO5 YAG 10mm digital Signal Laser Scan Head By Air Cooling
MOQ:
1 SET
Delivery Time:
1 day
Brand:
JCZ
Product Description

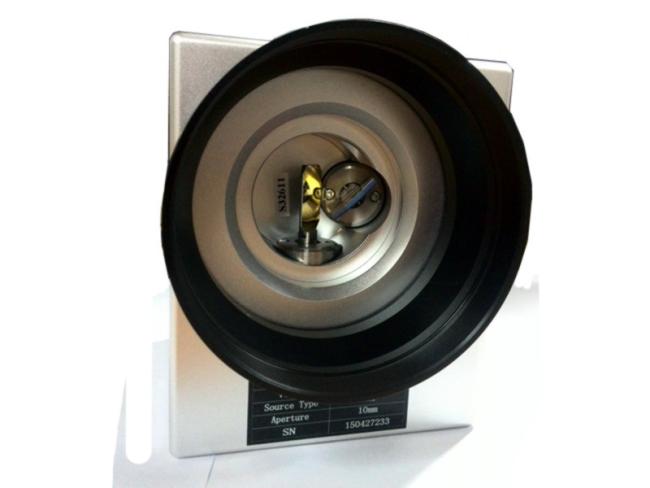

1064nm yag digital signal laser scan head
Quick Detail:
- yag digital laser scan head used on fiber /SPI /YAG laser machine for laser marking and laser engraving.High precision, quality, provide after-sales service
Description:
Condition | New |
Laser Type | fiber/co2/yag |
CNC or Not | Yes |
Cooling Mode | Air Cooling |
Control Software | EZCAD |
Graphic Format Supported | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT |
Working Accuracy | 0.005 |
Place of Origin | Beijing, China (Mainland) |
Brand Name | JCZ |
Model Number | GO5-YAG10 |
Power(W) | 10/20/50/75/100/150.. |
Certification | CE |
After-sales Service Provided | Overseas service center available |
color | Silvery white |
Applications:
- Laser Marking ,
- laser engraving
Specifications:
| The optical hole diameter | 10mm |
| Corresponding time step | |
| The deflection Angle of 1% | 0.4ms |
| The deflection Angle of 10% | 1.2ms |
| Speed | |
| Marking speed | 5000mm/s |
| Positioning speed | 10000mm/s |
| Temperature drift(more than 8 hours) | <0.3mrad |
| Interface protocol | XY2-100 Standard |
| Optical performance | |
| Scanning angle | ±0.35 rad |
| Gain error | ＜5 mrad |
| Zero offset | ＜5 mrad |
| Working temperature | 25℃ ± 10℃ |
| Power | ±15V/5A |
Competitive Advantage:
- Cheap ,
- high speed,
- work stable ,
- good quality
- zero drift,
- smaller size
