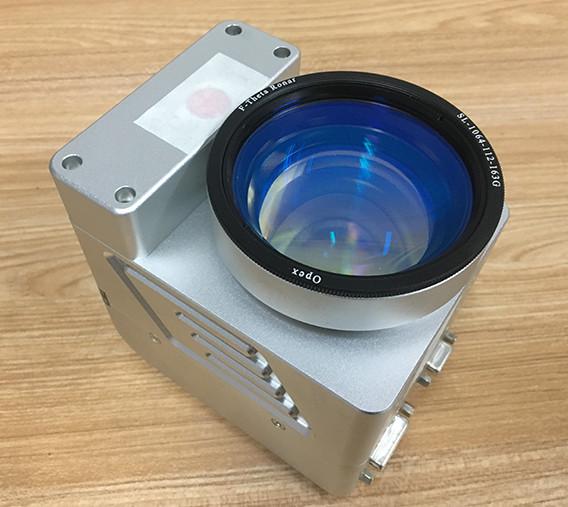

10mm laser galvo scanner digital signal for fiber laser engraving machine
MOQ:
1 SET
Delivery Time:
1 day
Brand:
JCZ
Product Description
High precision laser scan head ,Simple operation,No need manul focal length setting.
Description:
High precision laser scanning head is the independent research and development of our company, one can achieve high precision and high efficiency.Cyclops system match the marking area and camera view area.
Used Background show software and Calibration software.
Applications:
Laser Marking
laser engraving
Specifications:
| The optical hole diameter | 10mm |
| Corresponding time step | |
| The deflection Angle of 1% | 0.4ms |
| The deflection Angle of 10% | 1.2ms |
| Speed | |
| Marking speed | 5000mm/s |
| Positioning speed | 10000mm/s |
| Temperature drift(more than 8 hours) | <0.3mrad |
| Interface protocol | XY2-100 Standard |
| Optical performance | |
| Scanning angle | ±0.35 rad |
| Gain error | ＜5 mrad |
| Zero offset | ＜5 mrad |
| Working temperature | 25℃ ± 10℃ |
| Power | ±15V/5A |
Competitive Advantage:
Cheap
high speed
work stable
good quality
